Butterfly valves are popular for controlling fluid flow in various systems due to their simplicity, cost-effectiveness, and efficient operation. These valves are designed with a disc that rotates to either allow or block flow. While butterfly valves are widely used, they are not suitable for every application. Understanding their limitations is crucial to ensure the right valve is chosen for specific needs.
In this article, we will explore the scenarios where butterfly valves are not appropriate, focusing on their limitations in high-pressure, high-temperature, and specific media applications. We will also discuss the benefits of electric butterfly valves and their role in modern systems where automation is key.
Butterfly valves are generally not suitable for high-pressure systems. Their design, particularly the thin disc and soft seals, cannot withstand extreme pressures over extended periods. High-pressure systems, like those found in oil and gas pipelines, often require valves with a more robust design to maintain a reliable seal and prevent leakage.
When subjected to high pressures, the sealing surface of a butterfly valve can deform, leading to potential leakage or valve failure. For such applications, alternatives like ball valves or gate valves are often preferred due to their sturdier design and ability to handle higher pressure ratings without compromising performance.
Another area where butterfly valves are not ideal is in high-temperature environments. Butterfly valves, particularly those with rubber or elastomeric seals, may suffer from seal degradation at elevated temperatures. The materials used in butterfly valves may expand, contract, or lose flexibility when exposed to heat, compromising the valve's ability to seal effectively.
In applications like steam systems or those involving high-temperature fluids, valves specifically designed for high temperatures are required. These valves usually feature metal-to-metal sealing or are made from high-performance materials that can withstand the stresses of extreme heat. For such cases, a ball valve or globe valve with proper high-temperature resistance would be a better option.
Butterfly valves can struggle with handling highly viscous fluids or media containing solid particles. The valve disc may not fully shut off thick or sticky fluids, leading to inefficiency in the system. Additionally, solids may get trapped around the valve disc, causing damage or improper sealing. This can lead to performance issues, leaks, or difficulties in opening and closing the valve.
In applications involving slurries, pulps, or other media with solid content, gate valves or specially designed slurry valves are preferred. These valves can handle the abrasiveness and thickness of such media more effectively, ensuring smoother operation and reducing wear on the valve components.
Although butterfly valves offer a quick on/off function and can provide basic throttling, they are not designed for precise flow control. When it comes to applications that demand accurate and repeatable flow regulation—such as in chemical processing or pharmaceutical manufacturing—other valve types should be considered.
The performance of a butterfly valve is often nonlinear, meaning the flow rate doesn’t always correlate precisely with the valve disc's opening. This makes achieving fine control difficult. For processes requiring exact flow rates, globe valves or V-port ball valves are more suitable, as they are specifically designed for accurate flow control and can be fine-tuned more effectively.

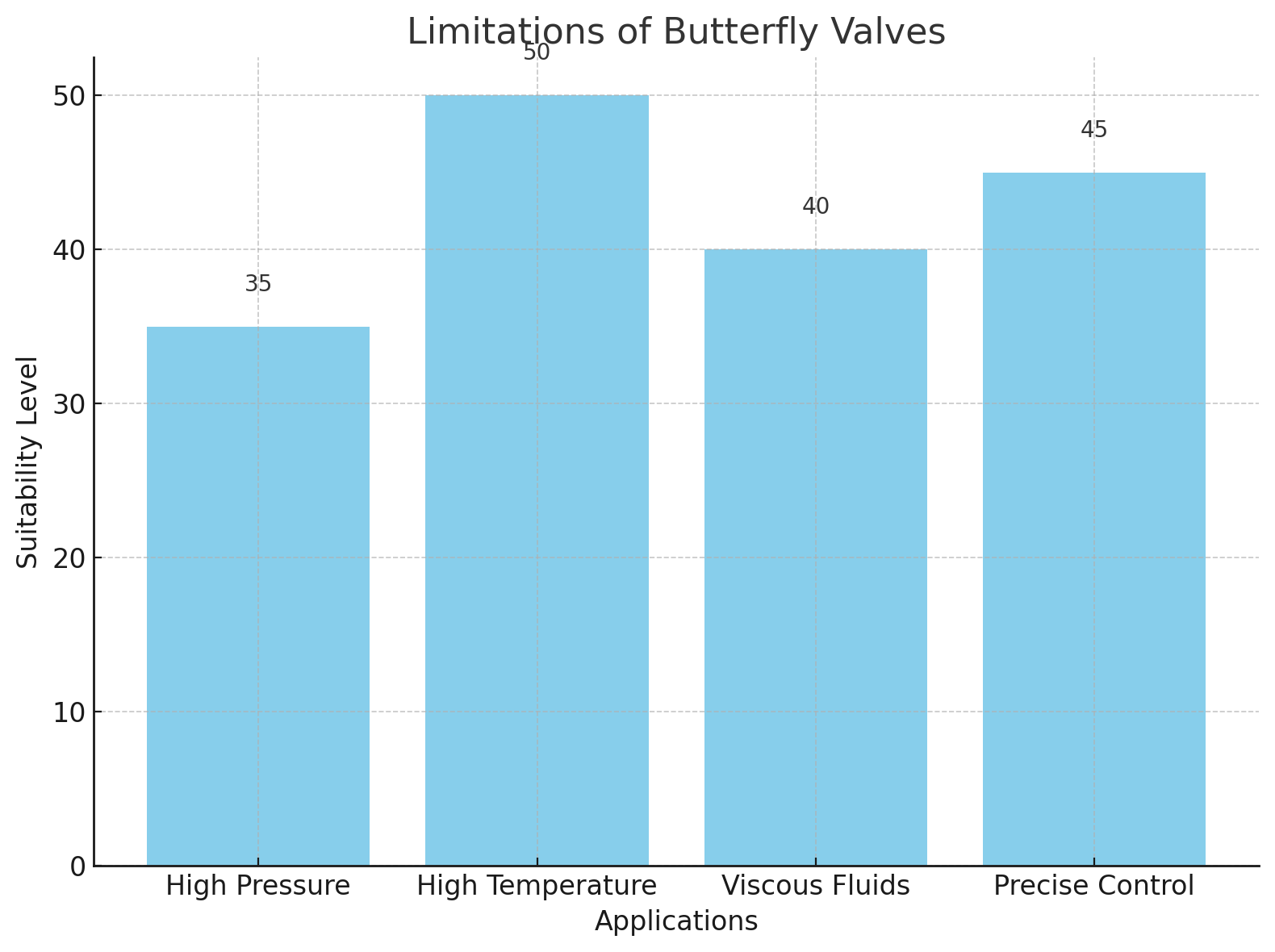

Application Type | Reason for Unsuitability |
High-Pressure Systems | Butterfly valves cannot handle high pressure efficiently. |
High-Temperature Environments | Sealing materials may degrade under high temperatures. |
Viscous Fluids and Solids | Butterfly valves cannot handle sticky or abrasive media. |
Precise Flow Control | Butterfly valves offer limited precision for flow control. |
Slurry and Abrasive Media | Solids can damage the valve’s sealing surfaces. |
While modern butterfly valves have improved sealing capabilities, they are still not ideal for situations requiring zero leakage. The design of the valve disc—being constantly in the flow path—can lead to minor leaks, especially when the valve is under high pressure or in critical applications like hazardous chemical pipelines or gas systems.
For applications that require absolute tightness, like handling toxic or flammable substances, gate valves or ball valves are often the preferred choice. These valves provide better sealing performance, ensuring that no leakage occurs, which is crucial for safety in sensitive environments.
Butterfly valves are susceptible to cavitation and erosion, particularly when used in throttling applications. The disc remains in the flow path, which can lead to turbulence and cavitation when the valve is partially opened. Over time, this causes wear on the sealing surfaces and increases the risk of failure.
In systems where cavitation is a concern, such as high-flow or high-velocity applications, valves designed to handle such conditions, like globe valves or specially designed pressure-reducing valves, are better suited.
Butterfly valves are not suitable for systems that require cleaning with pipeline pigs. The disc and seal design of butterfly valves prevent the use of cleaning devices that travel through the pipeline to remove debris or scale. This can be a significant limitation in certain industries, particularly in the oil and gas sector where pigging is essential for maintaining pipeline integrity.
In systems where pigging is required, alternative valve designs that allow for cleaning devices to pass through, such as ball or gate valves, should be considered.
In the pharmaceutical and food processing industries, there is a need for valves that offer precise flow control and meet stringent hygiene standards. Butterfly valves, due to their design, may not provide the level of control needed for such sensitive applications. Furthermore, their sealing performance may not meet the strict cleanliness requirements for these industries.
In these cases, valves such as globe valves or diaphragm valves are better suited due to their ability to provide precise control and easy maintenance for hygiene purposes.
Butterfly valves are not typically recommended for high-pressure gas systems. The disc design and sealing materials may not be able to withstand the high-pressure conditions required in gas pipelines, potentially leading to failures or leaks. For high-pressure gas applications, valves like ball valves or gate valves are usually preferred as they offer a more robust seal and better performance under such demanding conditions.
Butterfly valves are also less effective when it comes to handling slurry or abrasive media. The soft sealing materials and disc construction are prone to wear when exposed to abrasive particles. Over time, this leads to degradation of the valve’s performance and the need for more frequent maintenance. For such applications, valves specifically designed for slurry or abrasive materials, such as knife gate valves, should be used instead.
Gate valves are ideal for high-pressure and high-temperature environments where a reliable and tight seal is crucial. Their design ensures minimal leakage, making them particularly useful in industries such as oil and gas, where the integrity of the system is vital. Gate valves are best suited for applications that require infrequent operation and full shutoff, as they perform excellently in providing a complete seal. However, they are not the best choice for systems requiring frequent operation or throttling, as their slower operation and potential for erosion during throttling may cause wear over time.
Ball valves are highly valued for their precision in flow control and ability to handle high-pressure fluids or gases effectively. They excel in applications where a tight seal is necessary, ensuring no leakage even under pressure. The spherical design of the valve makes it ideal for managing varying flow conditions. Ball valves are commonly used in industries that demand precise flow regulation, such as in chemical plants or gas systems. Unlike butterfly valves, ball valves offer better control, particularly for applications where fine-tuned adjustments are required.
Globe valves are specifically designed for throttling and regulating flow, making them the best option when precise flow control is a priority. Their ability to adjust flow in small increments gives them an edge over butterfly valves in applications requiring accurate and repeatable flow settings. These valves are often used in industries like chemical processing, power plants, and any application that requires consistent and controlled flow regulation. Although globe valves are ideal for throttling, they tend to have higher pressure drops than other valve types and may not be suitable for high-flow systems that demand minimal resistance.
Valve Type | Flow Control | Pressure Suitability | Temperature Suitability | Ideal Applications | Precision Control |
Butterfly Valve | Moderate | Medium to Low | Moderate to Low | Water systems, HVAC, slurry applications | Low |
Ball Valve | Excellent | High | High | High-pressure, high-temperature systems | High |
Gate Valve | Good | High | High | Oil, gas, high-pressure systems | Moderate |
Globe Valve | Excellent | Medium to High | High | Precise flow control in chemical plants | High |
Butterfly valves are versatile and cost-effective solutions for many fluid control applications. However, they do have limitations, especially in high-pressure, high-temperature, and precise flow control applications. Understanding these limitations is crucial to selecting the right valve for your needs.
For applications that require precise control, zero leakage, or the ability to handle challenging media, alternative valve types like ball valves or globe valves are often the better choice.

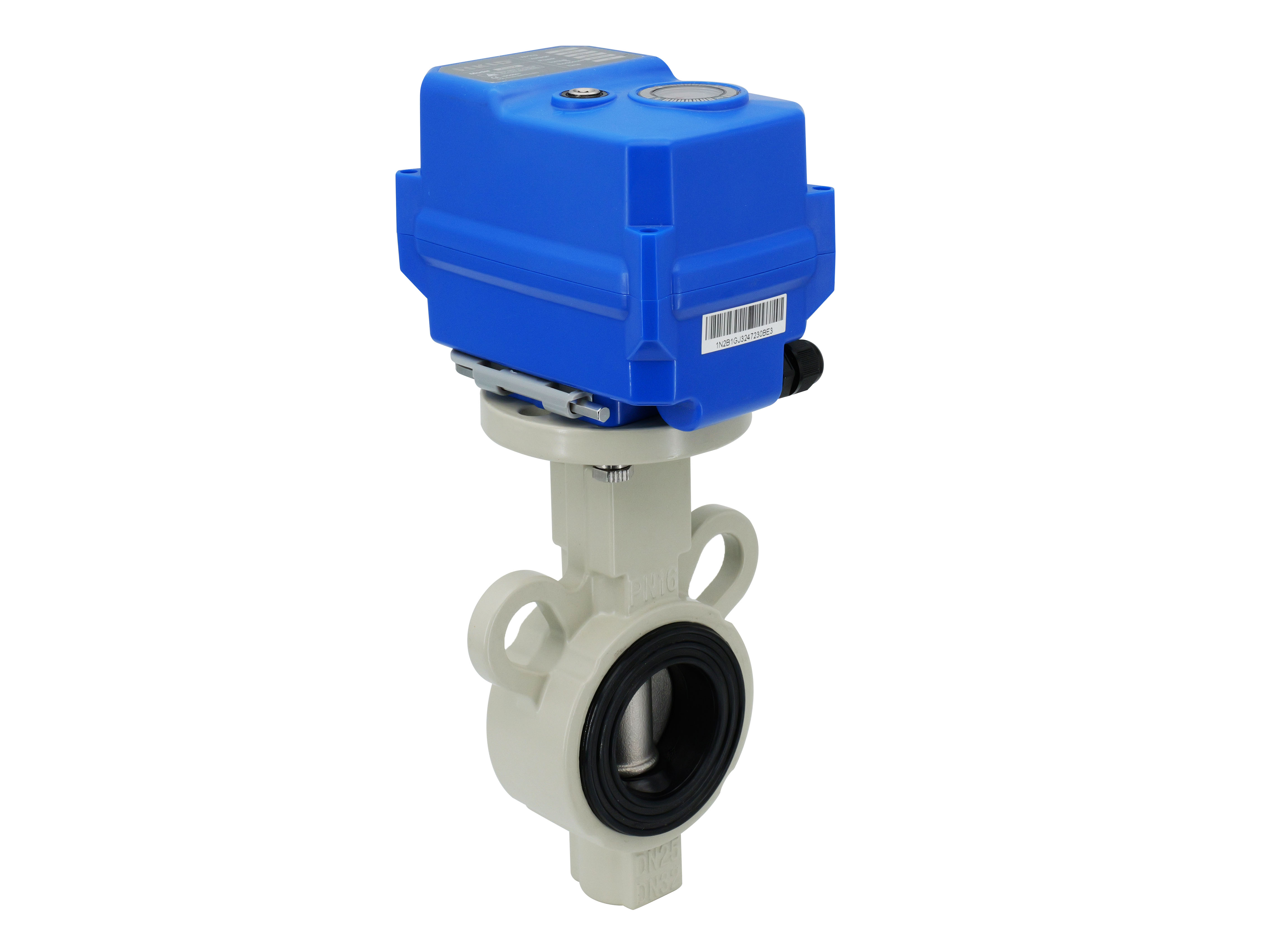

At KLD, we offer a range of high-quality butterfly valves, including electric butterfly valve options, which are ideal for modern systems requiring reliable control and automation. Whether for residential, industrial, or commercial applications, KLD’s products help ensure efficiency and safety.
