KLD100N Normal On Off 2-Way Motorized Ball Valve(Italian flange)

KLD100 2-way Full Port Motorized Ball Valve (1/2

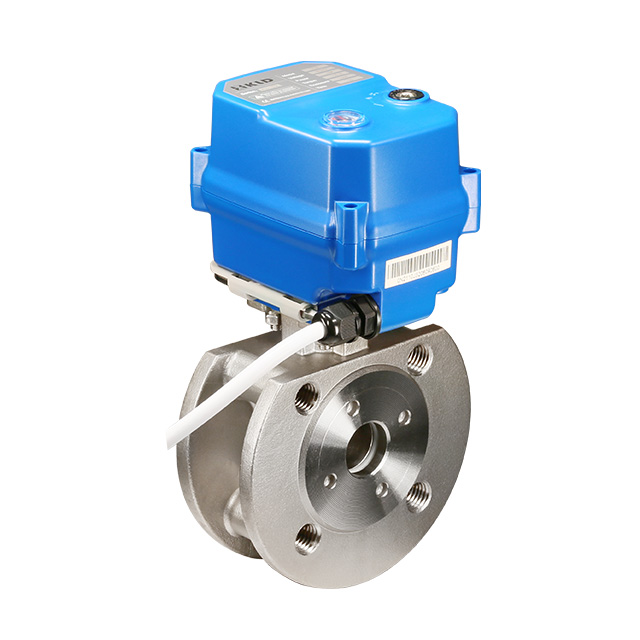

KLD100 2-Way Motorized Ball Valve (Italian flange)

Features:

Compact size, suits for small equipment
Manual override is safe and convenient
Long service life—20,000 cycles ※1
Brushless motor, stable and reliable
Fail-safe function available
High-speed 2s available

※1 The data is on condition of laboratory environment.Different applications may differ.


Availability:



Inquire Add to Basket

Product Description

Description

The KLD100 2-Way Motorized Ball Valve (Italian Flange) is a high-performance valve designed for reliable flow control in a variety of industrial applications. This compact valve is perfect for small equipment, providing significant space-saving benefits while maintaining exceptional performance. Equipped with a brushless motor, the valve ensures stable and reliable operation, with a long service life of up to 20,000 cycles. Additionally, the manual override feature offers safe and convenient operation during power outages or maintenance.

The KLD100 2-Way Motorized Ball Valve (Italian Flange) is available in normally open and normally closed configurations, offering flexibility to meet system different requirements. It features a fail-safe function, making it an excellent alternative to solenoid valves, especially in applications requiring higher flow rates and protection against water hammer. The valve is rated IP67 for protection against dust and water ingress, ensuring durability in harsh environments.

Technical specifications include

Valve Type: 2-Way Motorized Ball Valve
Sizes: DN15, DN20
Pressure: Maximum 1.6MPa (PN16)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 100°C
Ambient Temperature: -15°C to 45°C

The KLD100 2-Way Motorized Ball Valve (Italian Flange) meets international safety and environmental standards, ensuring compliance with European standards. Its robust construction and advanced features make it a reliable choice for demanding industrial applications.

CE approved.

Applications

Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control

Technical Data

Rated Torque	Nominal Voltage	Power	Wiring	Running Time	Protection Class	Max Pressure	Medium Temp.
6Nm	DC24V	24W	B2S/B3S/BD3S	2s	IP67 or F Type	1.6MPa	0-100℃ ※2
10Nm/6Nm@KT	AC/DC95-265V	12W/18W@KT	B3S/BD3S/KT32S	5s
	AC/DC24V		B2S/B3S/BD3S/KT32S
	DC12V
10Nm	AC24V	12W	B3S	10s
	AC110V
	AC220V

※2 It needs to add high-temperature bracket if medium temperature is over 100℃.

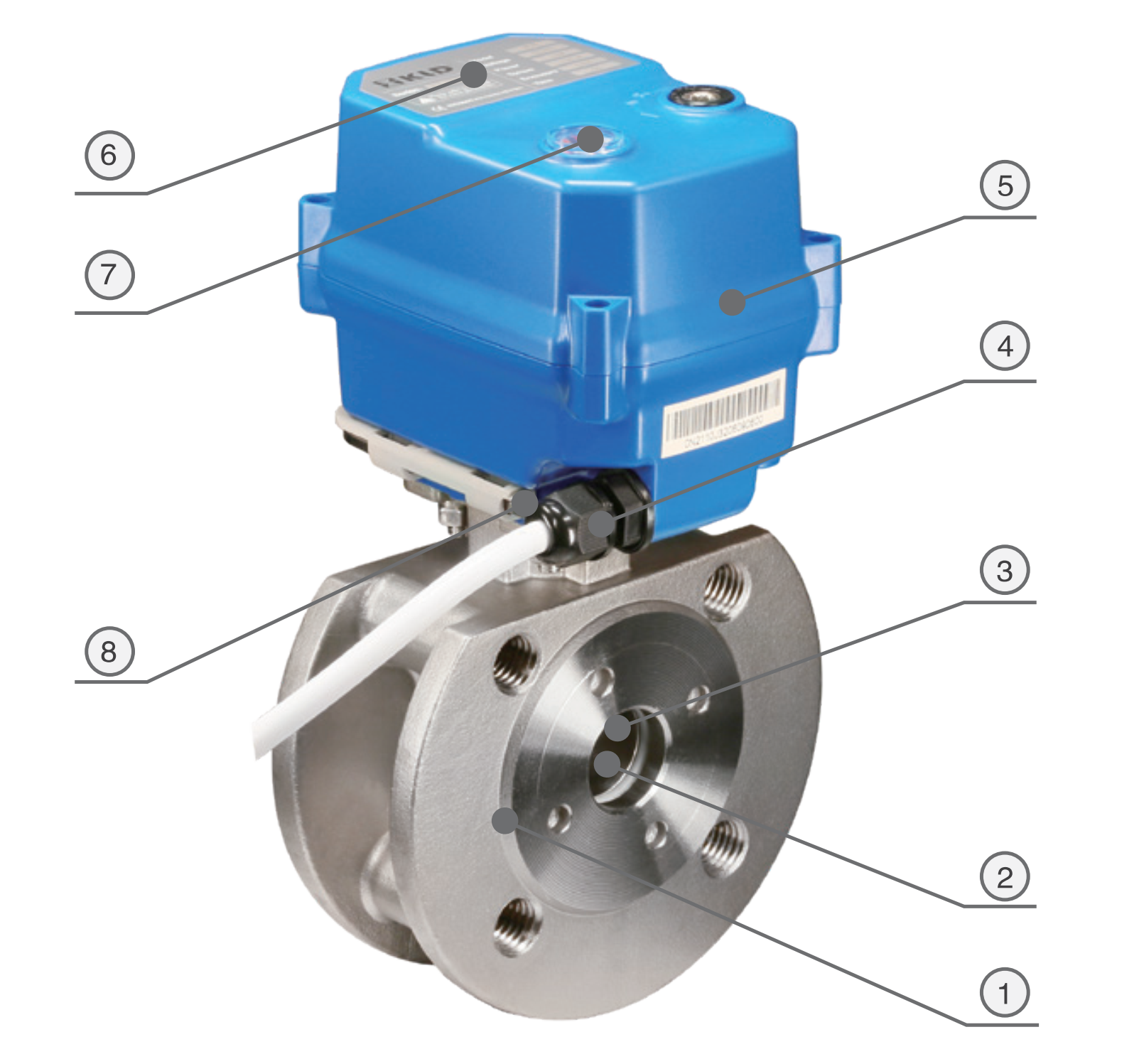

Main Components Diagram 100 flange

Main Components

No.	Components	Material	Qty
1	Body	304	1
2	Ball	304	1
3	Ball seat	PTFE	2
4	Cable connector	Nylon/nickel-plated brass	1
5	Housing	PC alloy ※	1
6	Label	PC	1
7	Indication window	Transparent PC	1
8	Hexagonal wrench	Tool steel	1

※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform ect., due to corrosion resistance characteristics of PC materials.

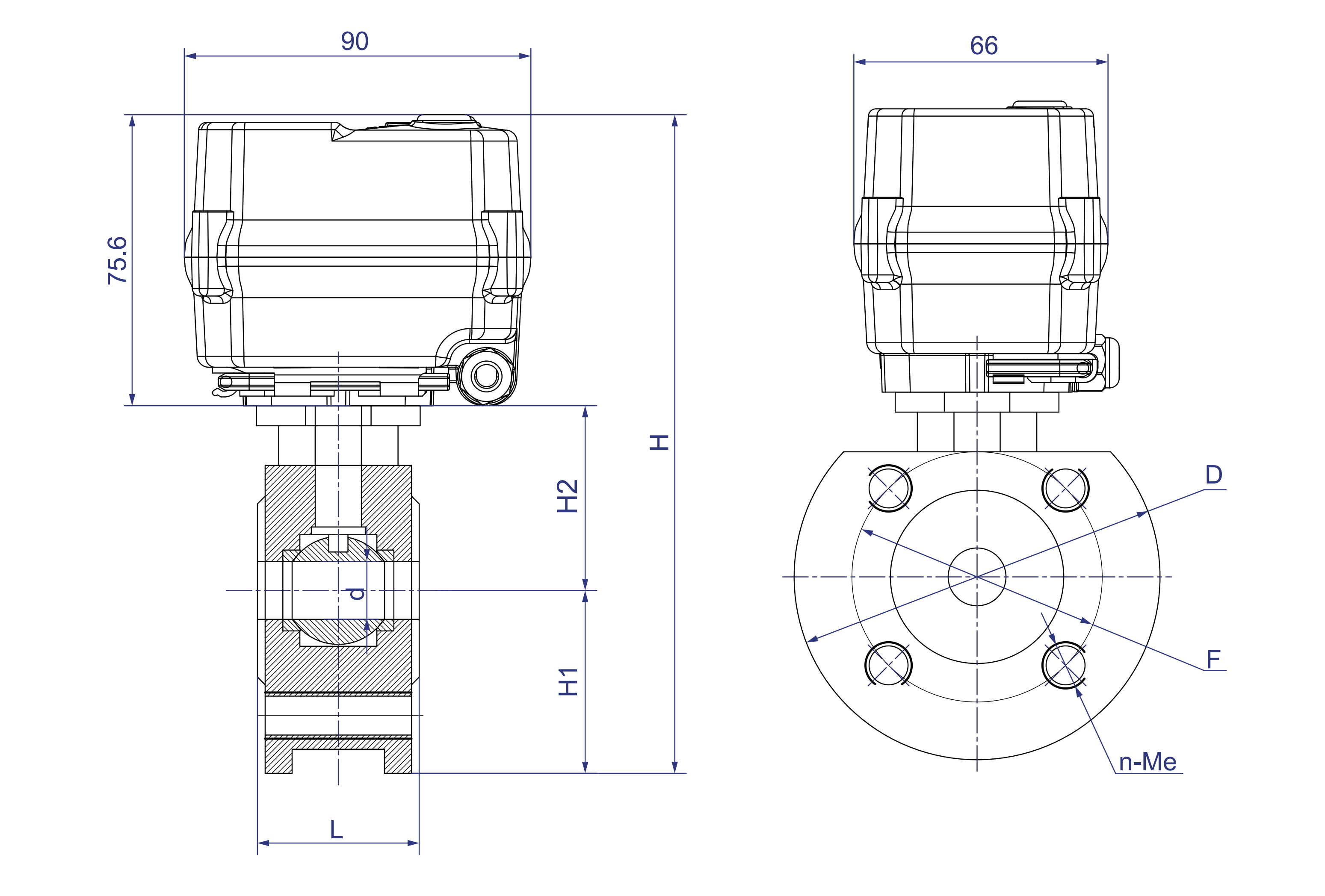

Dimensions [DN15-DN20]

100-flange

Dimensions (mm)

DN	d	L	H1	H2	H	D	F	n-Me	W (kg)

DN15	15	42	47.5	48	171.1	95	65	4-M12	1.71
DN20	20	44	52.5	53	181.1	105	75	4-M12	2.17

Functional Data

Angle of Rotation	90° ± 2°
Degree of Protection	IP67 F type [damp-proof,adding dehumidifying heater] As Per Q/12NK 4404-2023
Manual Override	Matching hexagon wrench (only using at no power)
Position Indicator
