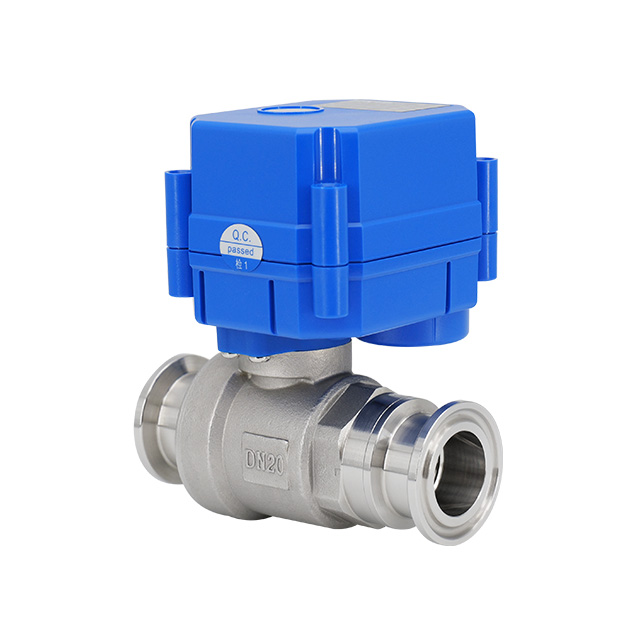

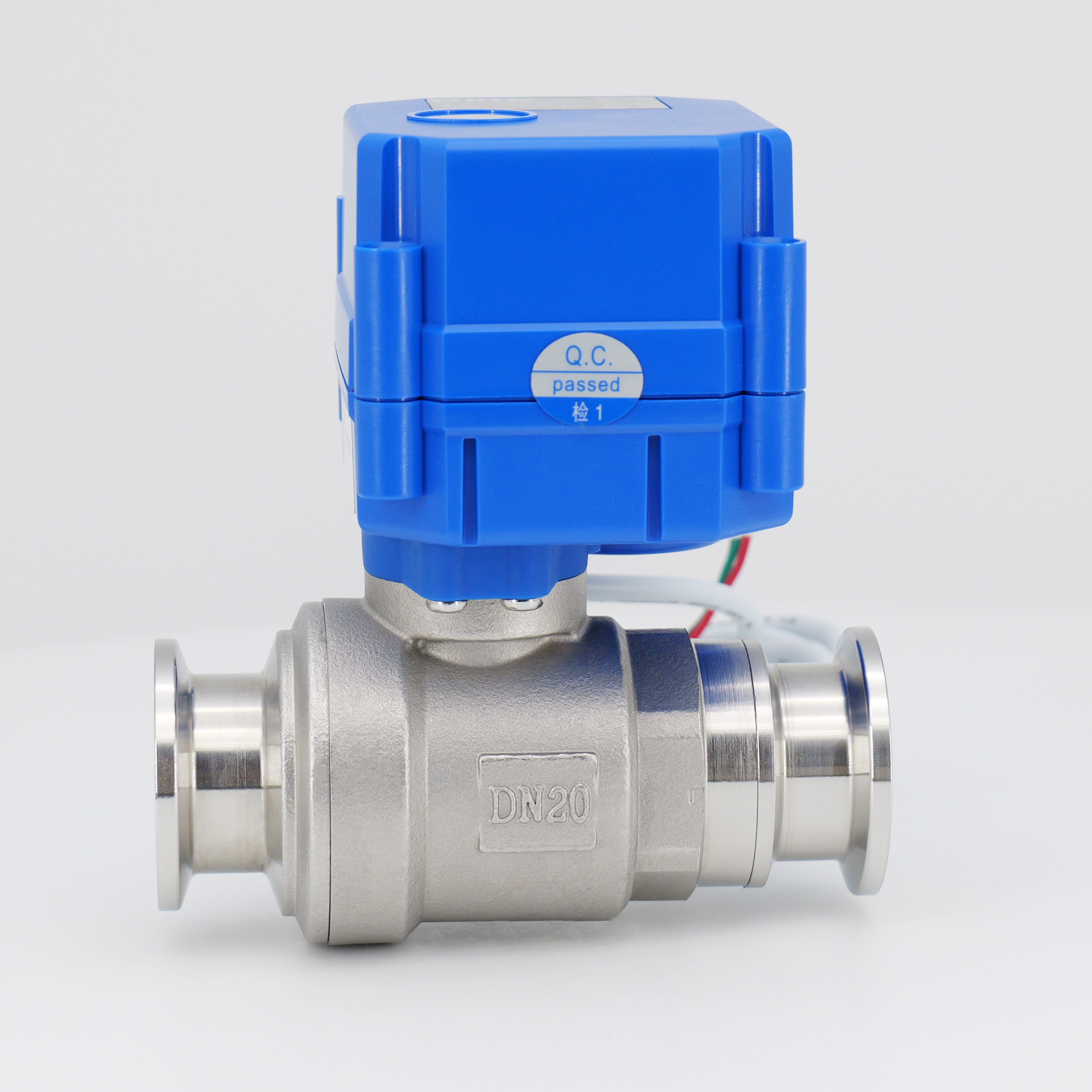

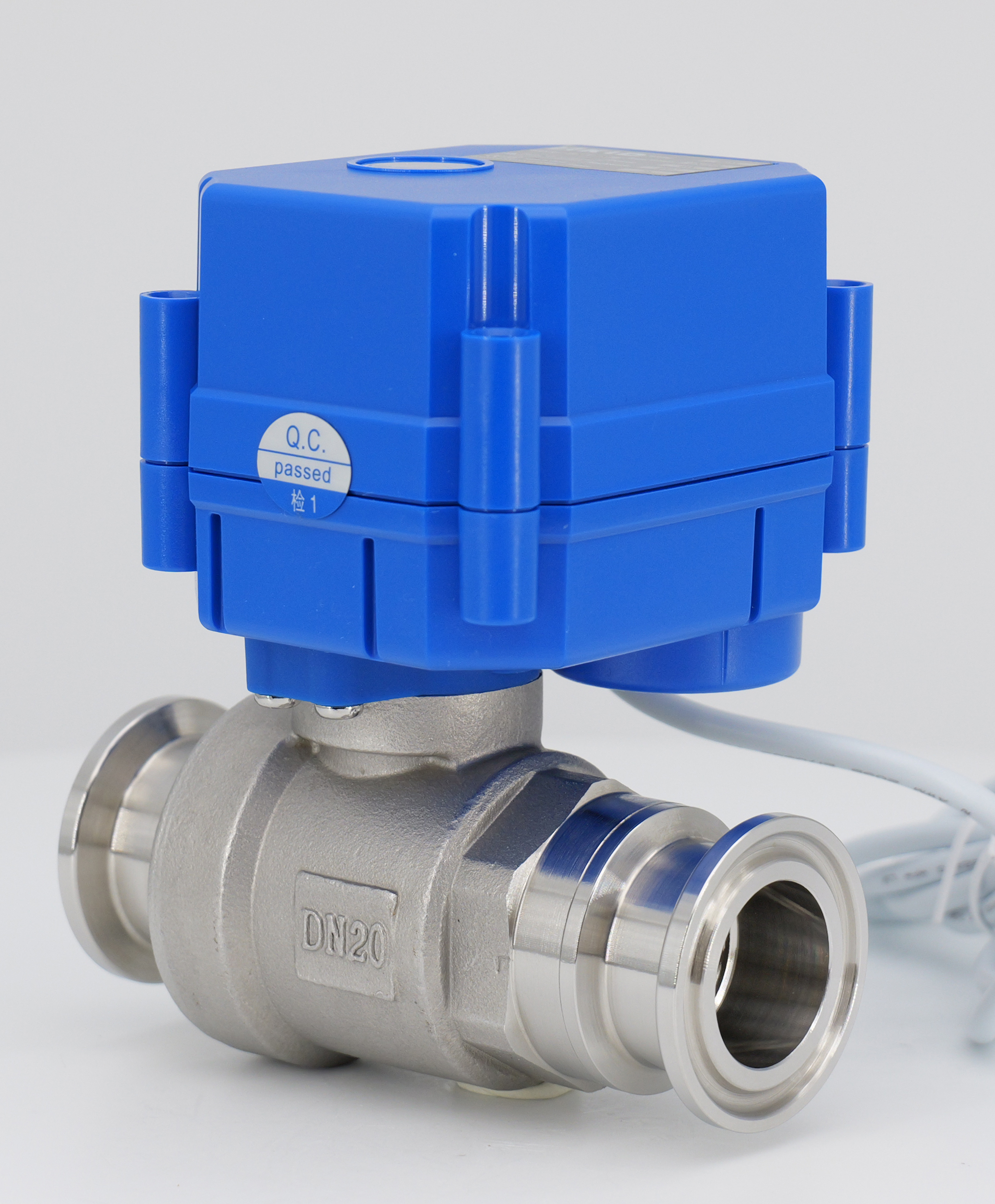

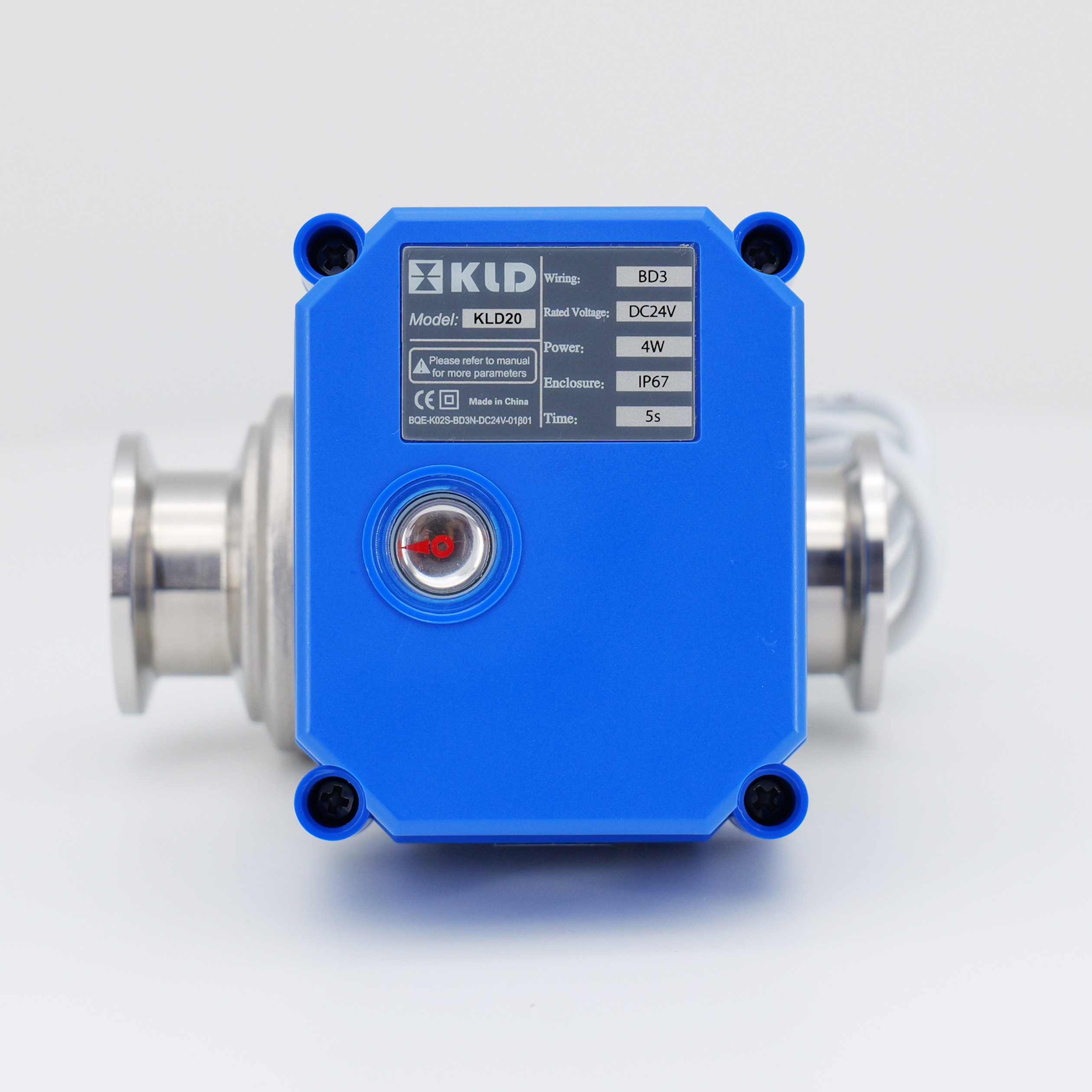

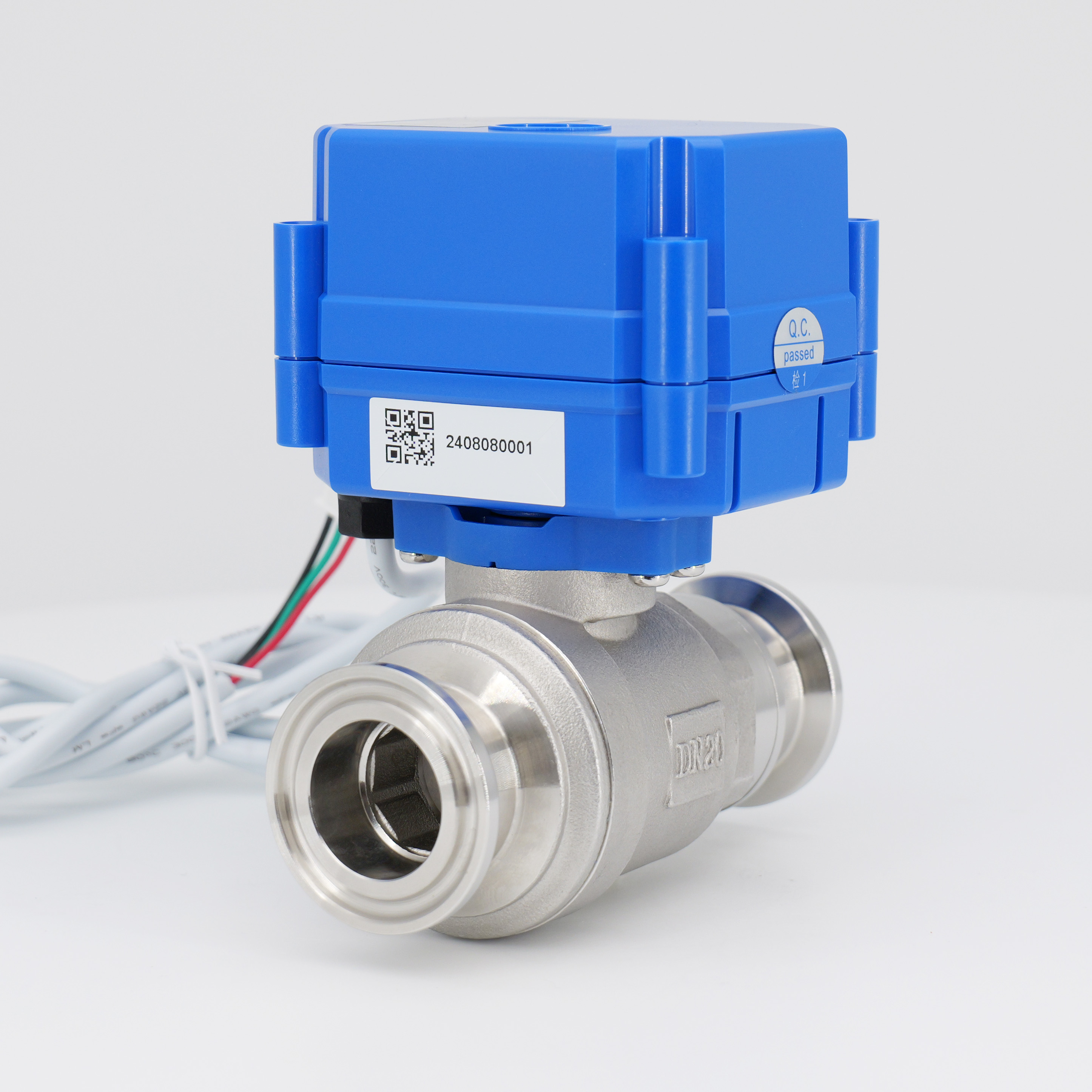

KLD20S/SJ Super Mini 2-Way Motorized Ball Valve (Tri-clamp)

Features:

Mini dimension suits for small equipment
Patented technology--floating seal structure
Long service life—70,000-100,000 cycles *1
Low working current,suitable for battery driving
IP67 Enclosure
Super long life optional,500,000 cycles
High-Speed 2s is optional

*1 The service life is the testing data in the condition of 1.0Mpa, 200L/h, tap water as working medium. Different working occasions will influence the service life.The data is on condition of laboratory environment.Different applications may differ.


Availability:



Inquire Add to Basket

Product Description

Description

The KLD20S Super Mini 2-Way Motorized Ball Valve with Tri-clamp connections is designed for compact and efficient control in small-scale applications. This valve features a patented floating seal structure that ensures excellent sealing performance and a long service life of up to 70,000-100,000 cycles. Constructed with brass and stainless steel materials, it offers robust durability and corrosion resistance. The valve is equipped with a manual override function for emergency operation during power outages and features an IP67-rated enclosure for enhanced protection against dust and water ingress. An optional high-speed version with a 2-second opening/closing time is also available.

Technical specifications include

Valve type: Super Mini 2-Way Motorized Ball Valve
Connection Type: Tri-clamp
Diameter: DN10, DN15, DN20
Pressure: Maximum 1.0 MPa (PN10)
Flow: Variable with valve size and application
Medium temperature: 0°C to 100°C
Ambient temperature: -20°C to 45°C

The KLD20S Super Mini 2-Way Motorized Ball Valve with Tri-clamp connections is ideal for use in HVAC systems, water treatment plants, chemical processes, and small equipment requiring automatic control. It is particularly suitable for replacing solenoid valves in applications where solenoid valves may not operate reliably. Its compact design and robust performance make it a reliable choice for industrial and commercial applications.

CE approved

Applications

HVAC
Water treatment
Chemical process
Small equipment for automatic control
Replacing solenoid valve, particularly when solenoid valve cannot work reliably

Technical Parameters

Series	Manual Override	Max Torque	Operating Time	Working Voltage	Max Power	Enclosure	Max Pressure	Medium Temp	Ambient Temp	Humidity
KLD20S	yes	2N.M	about 5s	DC5V, 12V	3W	IP67	1.0Mpa	0-100℃ ※1	-20℃<t<45℃	≤85% (non-condensing)
KLD20SJ	no			AC/DC12V, 24V	4W/ 5W@KT
				AC/DC110V, 220V	5W/ 8W@KT

Main Components Diagram

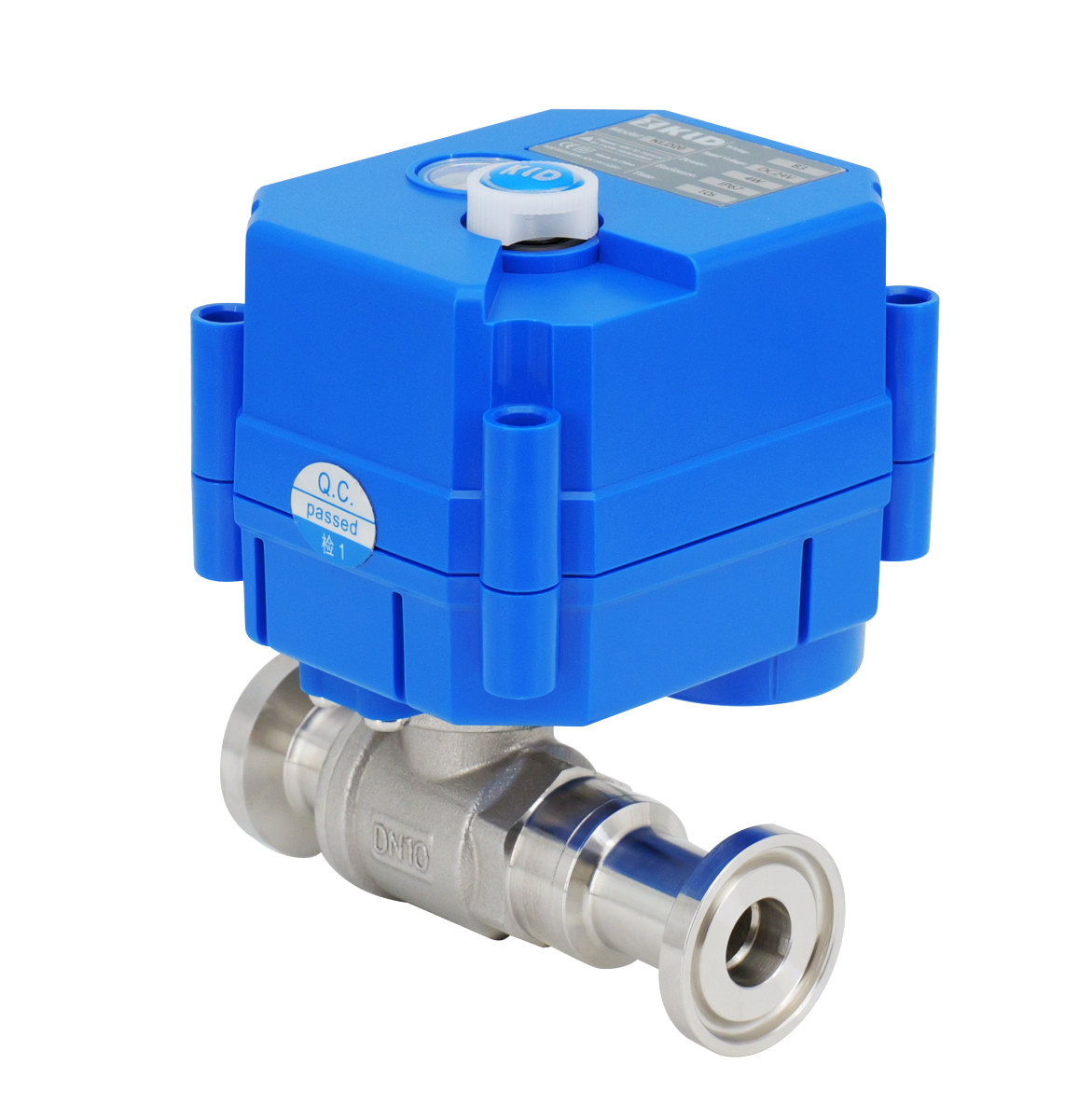

compons2

Main Components

Parts	Material
Valve body	Brass with nickel plating, 304, 316L
Valve ball	Brass with chrome plating, 304, 316L
Stem	Brass, 304, 316L
Ball seat	PTFE
Seal	FPM, EPDM, NBR
Housing	PC alloy ※2

Dimensions

20S-快装

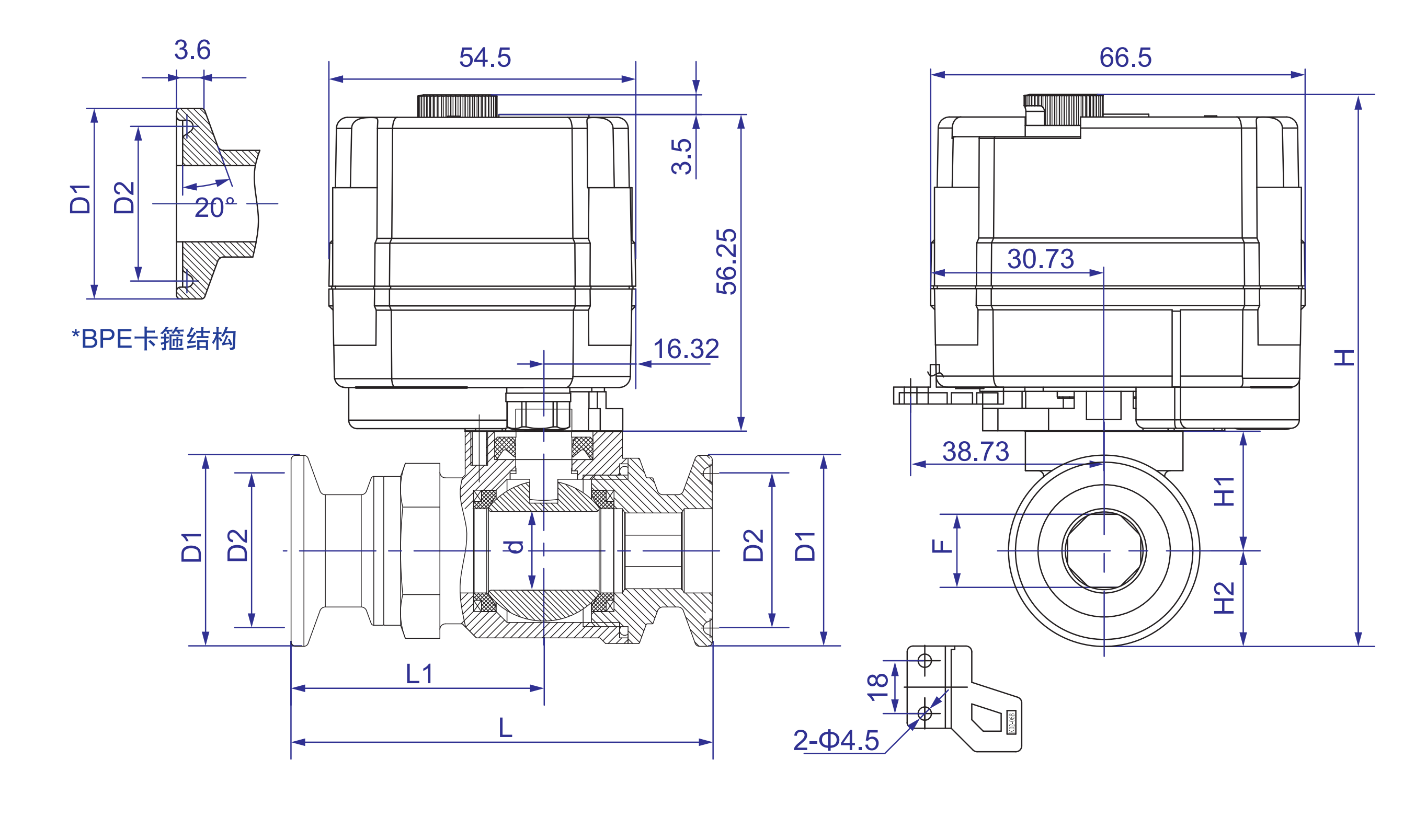

KLD20S

20SJ-快装

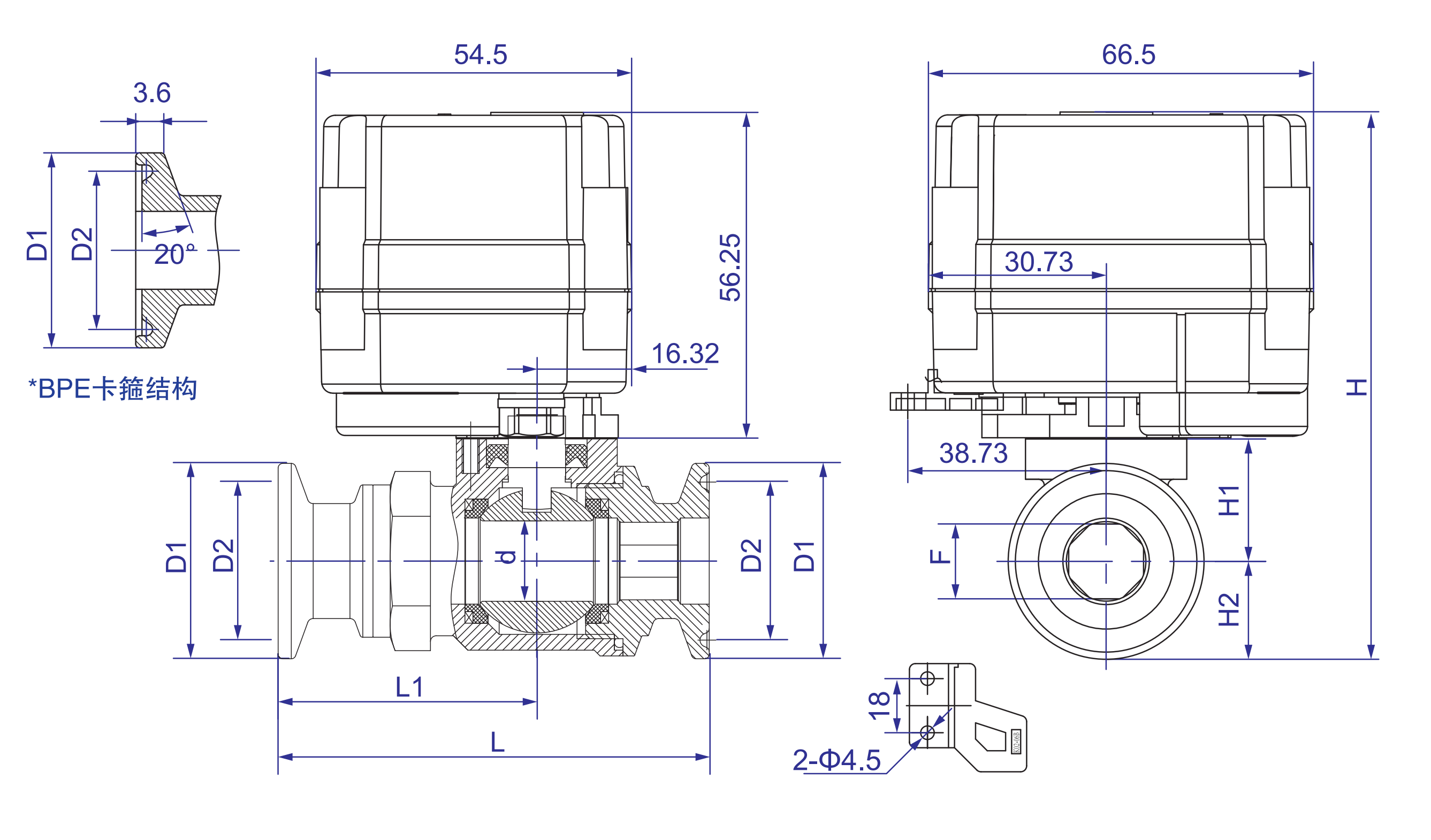

KLD20SJ

Connectlon size (unit:mm)

DN	d	D1		D2		L	L1	H1	H2	F	H		W(kg)
DN	d	D1		D2		L	L1	H1	H2	F	20S	20SJ	W(kg)
DN10	10.0	34.0	※25.0(BPE)	27.5	※20.3(BPE)	75.0	45.0	19.75	17.0	8.5	96.5	93.0	-
DN15	14.0	34.0		27.5		75.0	45.0	21.25	17.0	13.0	98.0	94.5	-
DN20	18.5	34.0	50.5	27.5	43.5	90.0	50.0	25.75	25.25	17.5	110.75	107.25	-

Instructions for Manual Override

It is only permitted to use when power is cut.
Lift the hand-wheel, and turn it left or right until the valve is in place.
When the arrow mark on the indicator is horizontal, the valve is on; when vertical, the valve is off.
Press down hand-wheel after using manual override in order to work properly when power is supplied.

Wiring

B2, B3, BD3,KT2 are available.We can accept feedback customization.Please contact sales for more details.

The service life is the testing data in the condition of 1.0Mpa, 200L/h, tap water as working medium. Different working occasions will influence the service life.
KLD20S has manual override; KLD20J does not have manual override, other parameters are the same as KLD20S.
Actuators are not direct-mount-on. Actuators are not recommended to be sold separately.
The pressure is tested under one-way direction.

※1 It needs to add high-temperature bracket if medium temperature is over 100 °C.

※2 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform ect., due to corrosion resistance characteristics of PC materials.

※Subject to technical changes
