Description

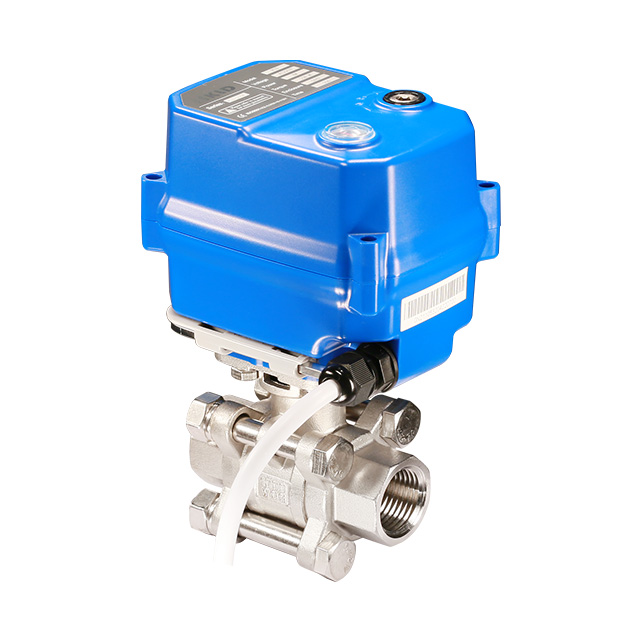

The KLD100 2-Way 3-Pieces Motorized Ball Valve (SS304/SS316) is a high-performance valve designed for precise flow control in various industrial applications. Featuring a compact design, this valve is ideal for small equipment, offering space-saving benefits without compromising on performance. The valve is equipped with a brushless motor, ensuring stable and reliable operation, with a long service life of up to 20,000 cycles. It also includes a manual override feature for safe and convenient operation during power outages or maintenance.
The KLD100 2-Way 3-Pieces Motorized Ball Valve (SS304/SS316) is available in both NO-normally open and NC-normally closed configurations, providing flexibility for different system requirements. It is designed with a fail-safe function, making it a superior alternative to solenoid valves, especially in applications requiring higher flow rates and protection against water hammer. The valve is rated IP67 for protection against dust and withstand short-term immersion in water (such as 30 minutes in 1 meter deep water).
Technical specifications include
Valve Type: 2-Way Motorized Ball Valve
Sizes: DN15, DN20
Pressure: Maximum 1.6MPa (PN16)/ 4.0MPa (PN40)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 100°C
Ambient Temperature: -15°C to 45°C
The KLD100 2-Way 3-Pieces Motorized Ball Valve (SS304/SS316) is ensuring compliance with European safety and environmental standards. Its robust construction, combined with advanced features, makes it a reliable choice for demanding industrial applications.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
| Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
| 6Nm | DC24V | 24W | B2S/B3S/BD3S | 2s | IP67 or F Type | 1.6MPa 4.0MPa | 0-100℃ ※2 |
| 10Nm/6Nm@KT | AC/DC95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5s | |||
| AC/DC24V | B2S/B3S/BD3S/KT32S | ||||||
| DC12V | |||||||
| 10Nm | AC24V | 12W | B3S | 10s | |||
| AC110V | |||||||
| AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100℃.

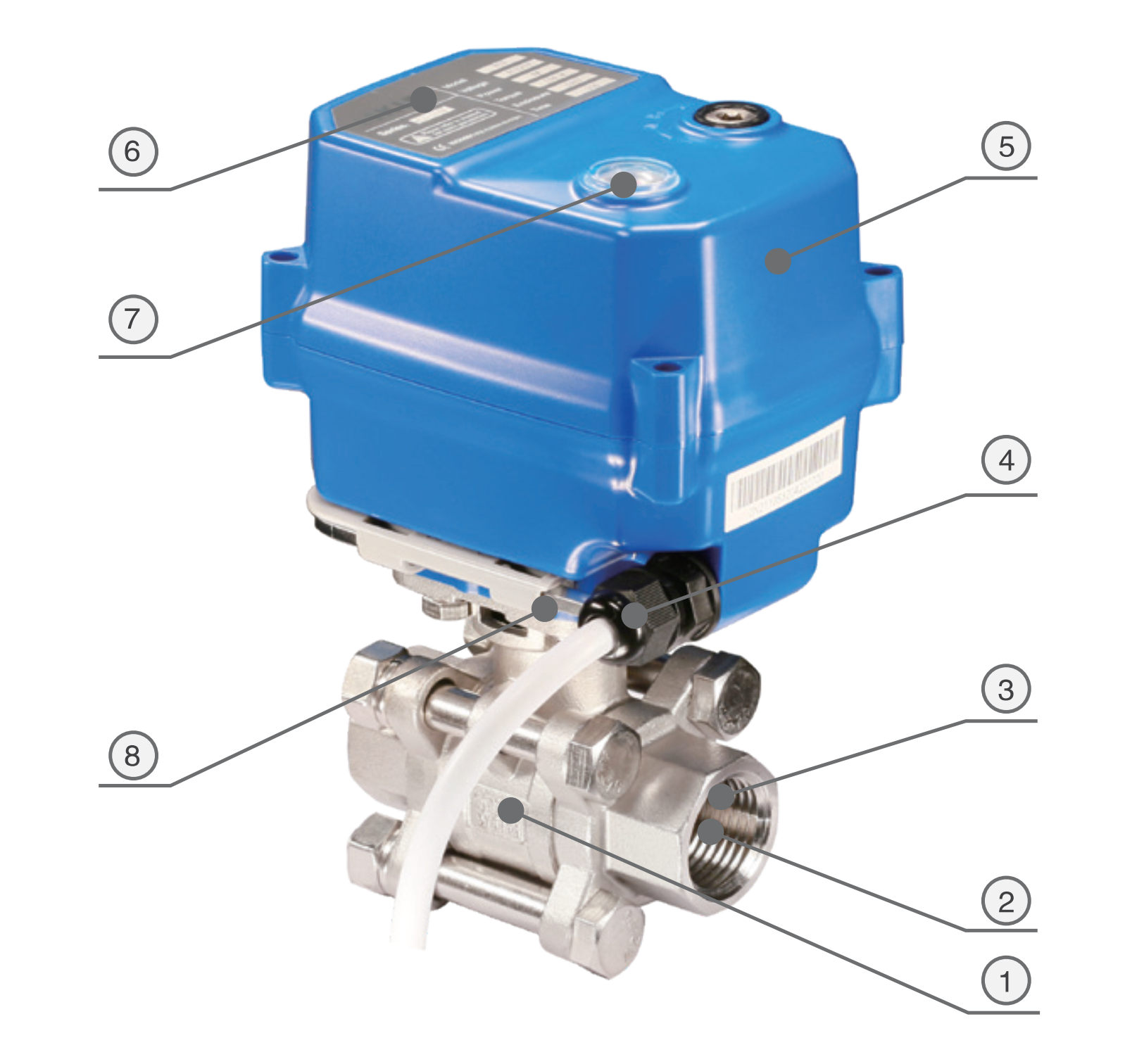

Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316 | 1 |
| 2 | Ball | 304/316 | 1 |
| 3 | Ball seat | PTFE | 2 |
| 4 | Cable connector | Nylon/nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※ | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform ect., due to corrosion resistance characteristics of PC materials.
| Dimensions【DN15-DN20,thread/socket weld】 | Dimensions【DN15-DN20,butt weld】 |
 |  |
Dimensions (mm)
DN | d | L1=L2 | G1 | D1 | L | H1 | H2 | H | F | W (kg) | |||||
| thread | socket weld | butt weld | thread | socket weld | butt weld | thread | socket weld | butt weld | |||||||
DN15 | 15 | 20 | 10 | 20 | G1/2″ | 21.7 | 22.5 | 72 | 72 | 63 | 22.5 | 42.0 | 140.1 | 26 | 1.23 |
DN20 | 20 | 20 | 13 | 23 | G3/4″ | 27.1 | 27.5 | 80 | 80 | 78 | 25.0 | 48.0 | 146.1 | 32 | 1.42 |
Notes: BSP, NPT, GB ect. is optional.
Functional Data
| Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof,adding dehumidifying heater] As Per Q/12NK 4404-2023 |
| Manual Override | Matching hexagon wrench (only using at no power) |
| Position Indicator |  |
Working Conditions
Ambient Temp. | -15℃<t<45℃ (can be customized for other temp.) |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0-100℃ |
※Subject to technical changes
Description
The KLD100 2-Way 3-Pieces Motorized Ball Valve (SS304/SS316) is a high-performance valve designed for precise flow control in various industrial applications. Featuring a compact design, this valve is ideal for small equipment, offering space-saving benefits without compromising on performance. The valve is equipped with a brushless motor, ensuring stable and reliable operation, with a long service life of up to 20,000 cycles. It also includes a manual override feature for safe and convenient operation during power outages or maintenance.
The KLD100 2-Way 3-Pieces Motorized Ball Valve (SS304/SS316) is available in both NO-normally open and NC-normally closed configurations, providing flexibility for different system requirements. It is designed with a fail-safe function, making it a superior alternative to solenoid valves, especially in applications requiring higher flow rates and protection against water hammer. The valve is rated IP67 for protection against dust and withstand short-term immersion in water (such as 30 minutes in 1 meter deep water).
Technical specifications include
Valve Type: 2-Way Motorized Ball Valve
Sizes: DN15, DN20
Pressure: Maximum 1.6MPa (PN16)/ 4.0MPa (PN40)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 100°C
Ambient Temperature: -15°C to 45°C
The KLD100 2-Way 3-Pieces Motorized Ball Valve (SS304/SS316) is ensuring compliance with European safety and environmental standards. Its robust construction, combined with advanced features, makes it a reliable choice for demanding industrial applications.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
| Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
| 6Nm | DC24V | 24W | B2S/B3S/BD3S | 2s | IP67 or F Type | 1.6MPa 4.0MPa | 0-100℃ ※2 |
| 10Nm/6Nm@KT | AC/DC95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5s | |||
| AC/DC24V | B2S/B3S/BD3S/KT32S | ||||||
| DC12V | |||||||
| 10Nm | AC24V | 12W | B3S | 10s | |||
| AC110V | |||||||
| AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100℃.
Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316 | 1 |
| 2 | Ball | 304/316 | 1 |
| 3 | Ball seat | PTFE | 2 |
| 4 | Cable connector | Nylon/nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※ | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform ect., due to corrosion resistance characteristics of PC materials.
| Dimensions【DN15-DN20,thread/socket weld】 | Dimensions【DN15-DN20,butt weld】 |
| |
Dimensions (mm)
DN | d | L1=L2 | G1 | D1 | L | H1 | H2 | H | F | W (kg) | |||||
| thread | socket weld | butt weld | thread | socket weld | butt weld | thread | socket weld | butt weld | |||||||
DN15 | 15 | 20 | 10 | 20 | G1/2″ | 21.7 | 22.5 | 72 | 72 | 63 | 22.5 | 42.0 | 140.1 | 26 | 1.23 |
DN20 | 20 | 20 | 13 | 23 | G3/4″ | 27.1 | 27.5 | 80 | 80 | 78 | 25.0 | 48.0 | 146.1 | 32 | 1.42 |
Notes: BSP, NPT, GB ect. is optional.
Functional Data
| Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof,adding dehumidifying heater] As Per Q/12NK 4404-2023 |
| Manual Override | Matching hexagon wrench (only using at no power) |
| Position Indicator | |
Working Conditions
Ambient Temp. | -15℃<t<45℃ (can be customized for other temp.) |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0-100℃ |
※Subject to technical changes
