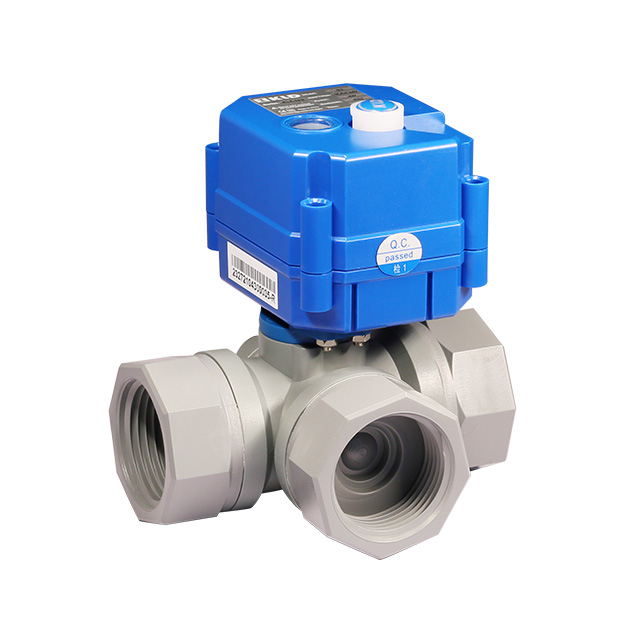

Description
Technical specifications include

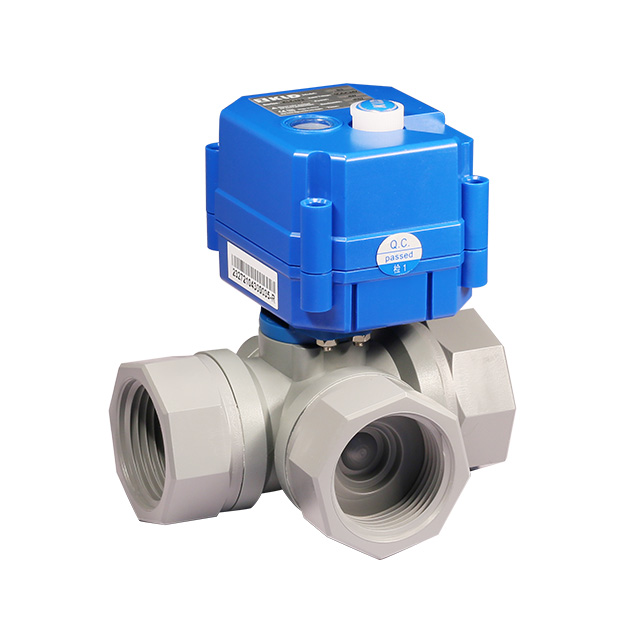

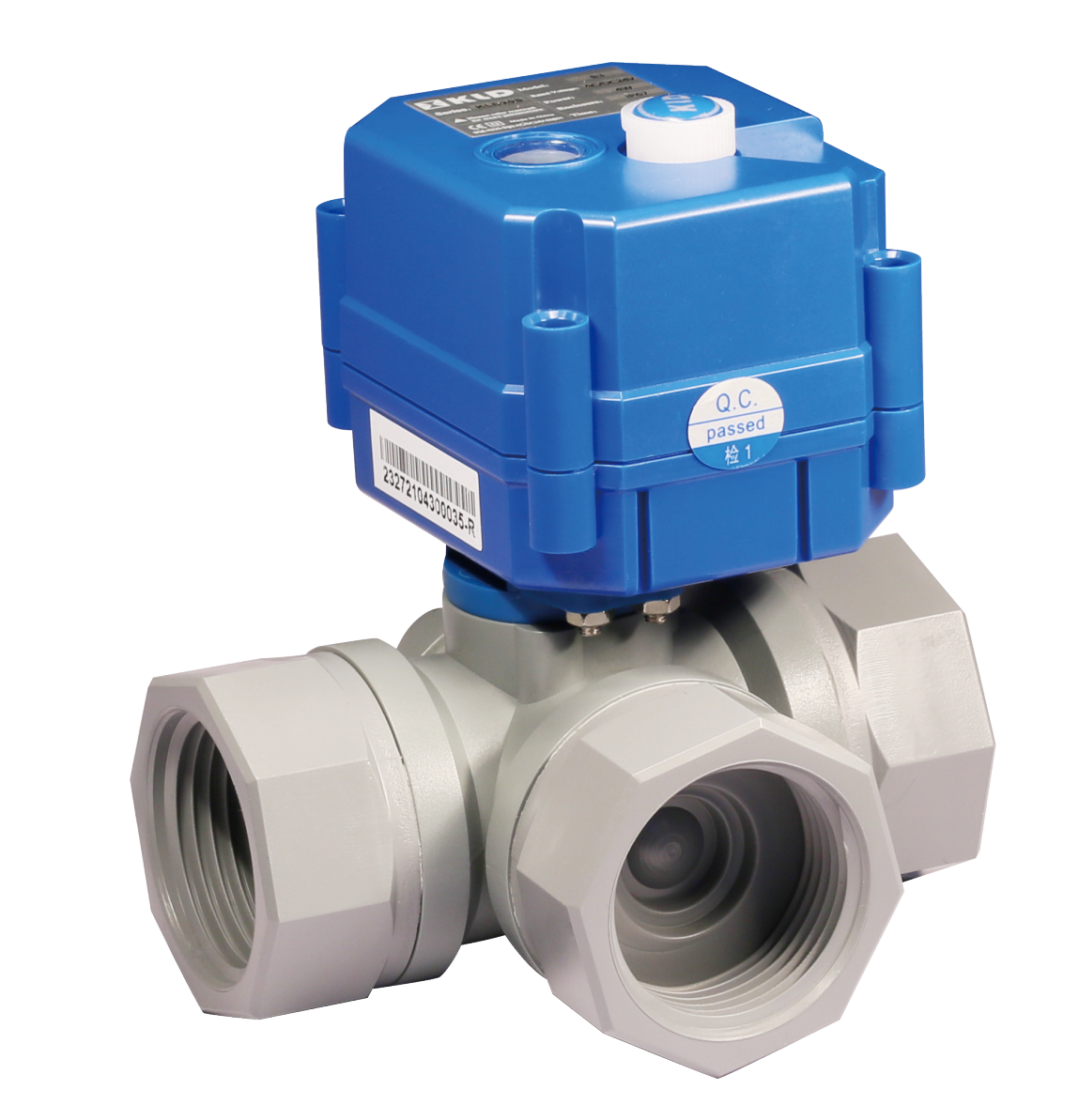

Valve Type: Three-way plastic ball valve
Sizes: DN15, DN20, DN25
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 90°C
Ambient Temperature: -20°C to 45°C
The KLD20S 3-Way Plastic Valve is a reliable, durable, and efficient solution for fluid control in demanding environments, offering excellent performance and customization options for a variety of industrial and environmental applications.
CE approved
Applications
Used for corrosive medium such as acid and alkali,etc
Replacing solenoid valve, particularly when solenoid valve cannot work reliably
Environmental protection,water treatment system
Small industrial automation equipment
Excellent in ClO2,O3 system
Technical Parameters
| Series | Manual Override | Max Torque | Operating | Working Voltage | Max Power | Enclosure | Max Pressure | Medium Temperature | Ambient Temperature | Humidity | ||
| KLD20S | yes | 2N.m | about 5s | DC5V, 12V | 3W | IP67 | 1.0Mpa | 0-90°C | -20°C< t<45°C | ≤85% non-condensing | ||
| AC/DC 12V, 24V | 4W/ 5W@KT | |||||||||||
| KLD20SJ | no | AC/DC110V, 220V | 5W/ 8W@KT | |||||||||
Main Components Diagram
Main Components
Parts | Material |
Actuator housing | PC alloy ※1 |
Valve body | CPVC |
Valve ball | CPVC |
Stem | CPVC |
Ball seat | PTFE |
| Seal | FPM, EPDM, NBR |

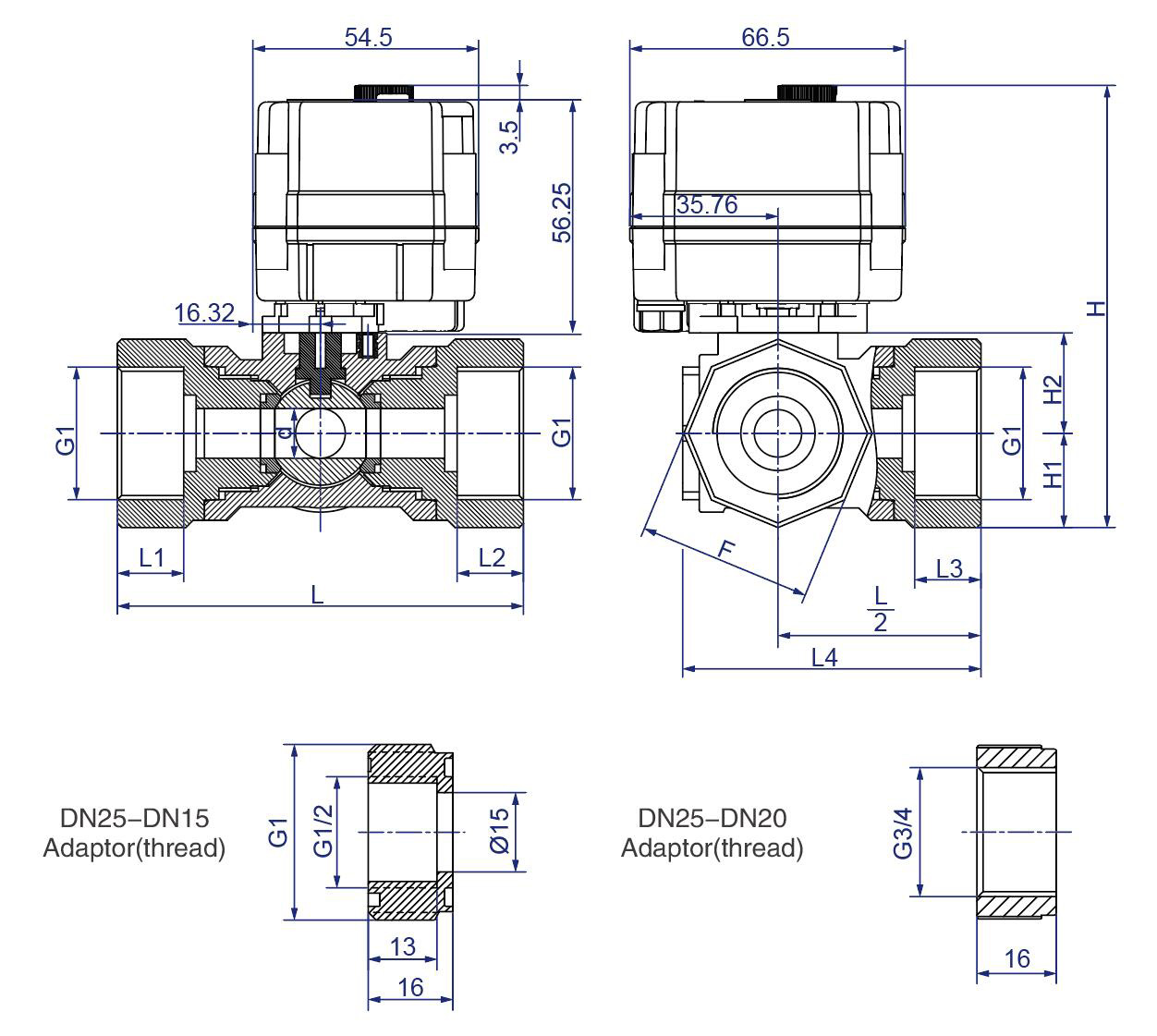

Dimension
KLD20S |
KLD20SJ |
Connection Size(unit:mm)
| DN | d | G1 | L1=L2=L3 | L | L4 | H | H1 | H2 | F | W(kg) | |||
| thread | socket | thread | socket | 20S | 20SJ | ||||||||
| DN15※ | 12.0 | G1/2" | 20.2 | 13.0 | 13.0 | 98.0 | 72.0 | 106.7 | 103.2 | 22.7 | 24.2 | 42.0 | 0.43 |
| DN20※ | 12.0 | G3/4" | 25.0 | 16.0 | 13.0 | 98.0 | 72.0 | 106.7 | 103.2 | 22.7 | 24.2 | 42.0 | 0.43 |
| DN25 | 12.0 | G1" | - | 16.0 | - | 98.0 | 72.0 | 106.7 | 103.2 | 22.7 | 24.2 | 42.0 | 0.43 |
Notes:Adaptor assembled.
Flow Direction
Instructions for Manual Override
It is only permitted to use when power is cut.
Lift the hand-wheel, and turn it left or right until the valve is in place.
Press down hand-wheel after using manual override in order to work properly when power is supplied.
Wiring
B2, B3, BD3,KT2 are available.We can accept feedback customization.Please contact sales for more details.
The service life is the testing data in the condition of 1.0Mpa, 200L/h, tap water as working medium. Different working occasions will influence the service life.
KLD20S has manual override; KLD20J does not have manual override, other parameters are the same as KLD20S.
Actuators are not direct-mount-on. Actuators are not recommended to be sold separately.
The pressure is tested under one-way direction.
※1 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform ect., due to corrosion resistance characteristics of PC materials.
※Subject to technical changes
