Description

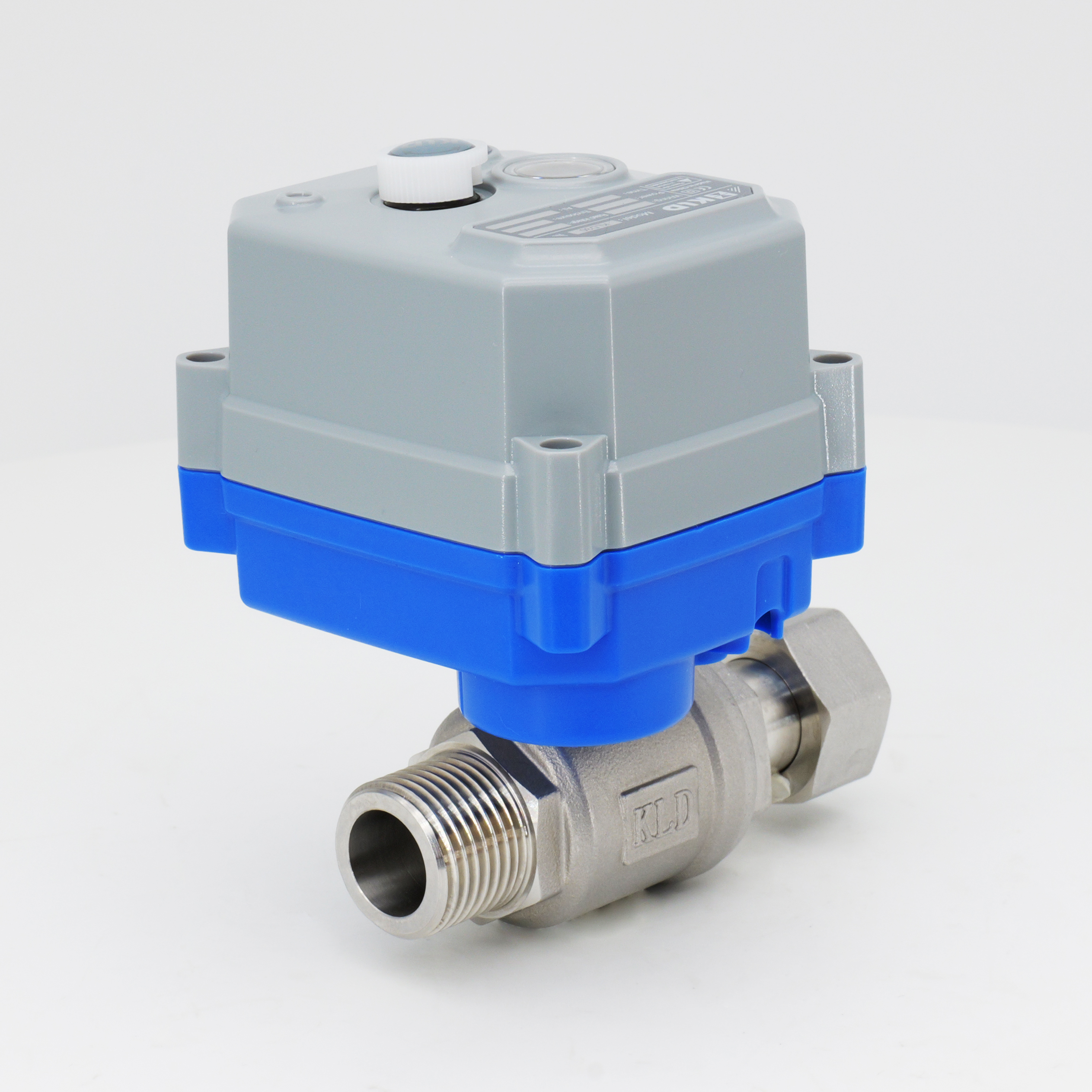

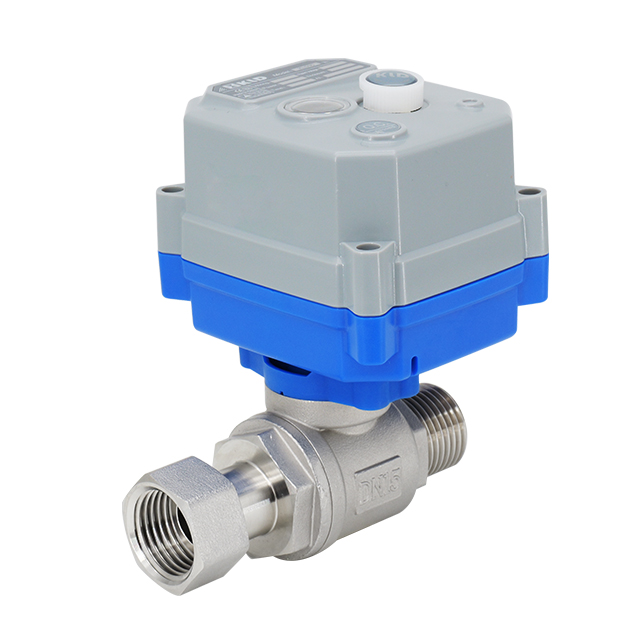

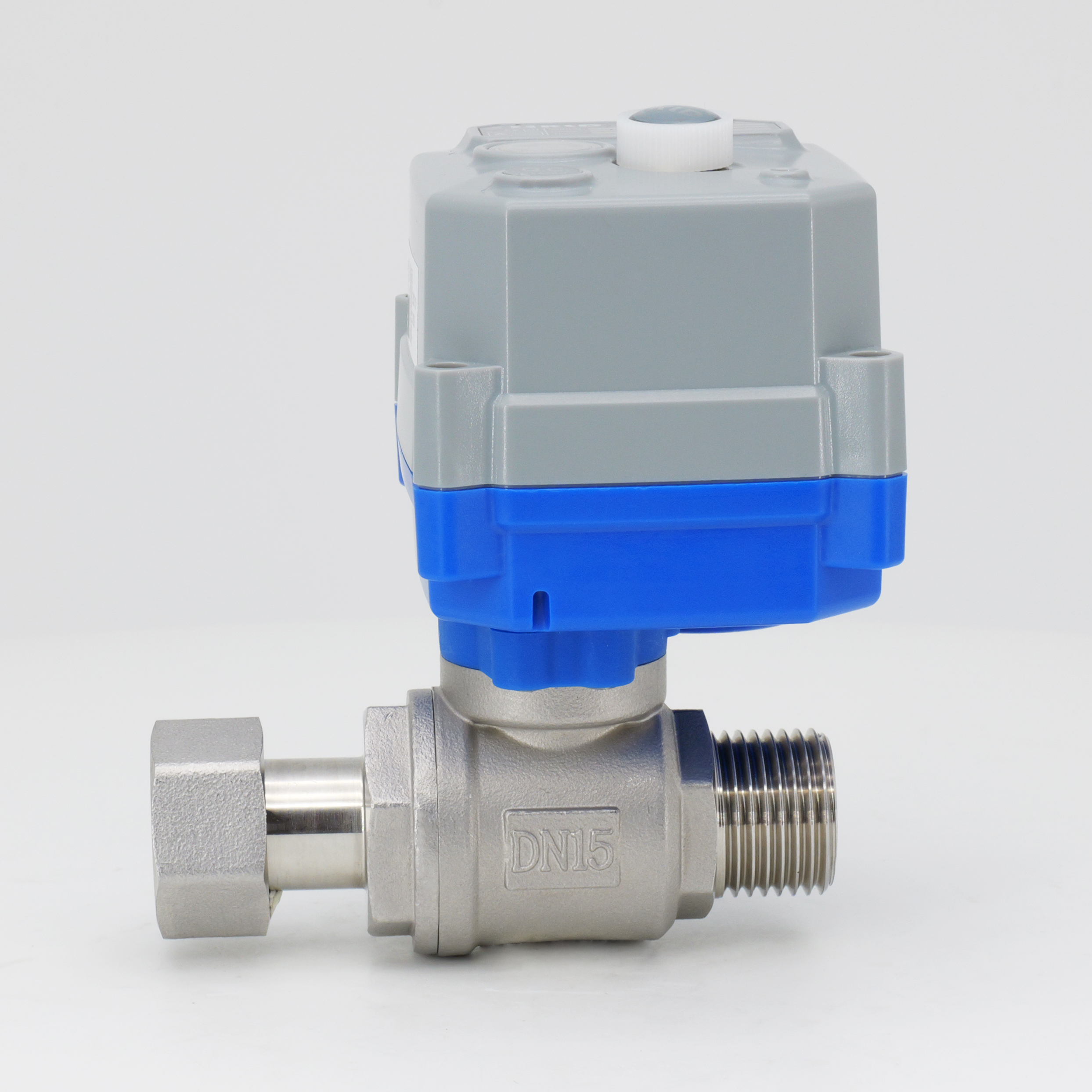

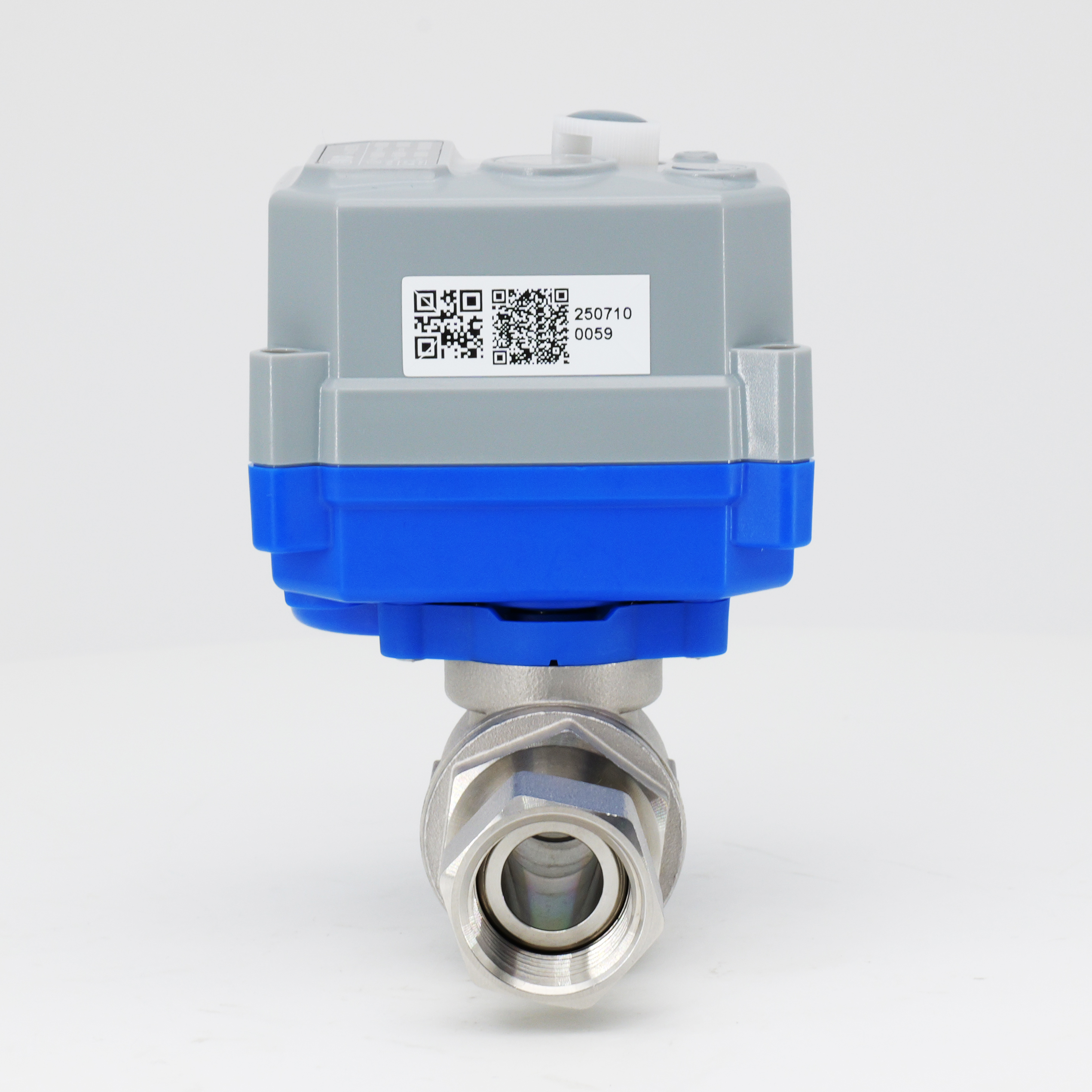

The KLD30S/SJ Normal On/Off 2-Way Motorized Ball Valve with Single Union x Male Thread is available in two connection configurations: Male thread + Single union, and Union + Union, to suit different piping layouts. Offered in 30S (with manual override handwheel) and 30SJ (without handwheel) variants, it provides flexible operation for process and automation systems. The full-port valve body is constructed from 304 or 316L stainless steel, with a ball available in 304/316L, PPO, or a special wear-resistant grade to meet varied media and abrasion demands. Paired with PTFE seats and EPDM/NBR/FPM seals, it delivers excellent chemical compatibility across a wide temperature range. The actuator can be upgraded to a service life of up to 500,000 cycles. Manufactured under an ISO 9001 quality management system.
Technical specifications
Valve Type: 2-Way Motorized Ball Valve with Single Union x Male Thread
Sizes: DN10, DN15, DN20
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0–100°C / 120°C / 150°C
Ambient Temperature: -20°C to 45°C (customizable) ※1
This valve is ideal for industrial automation, intelligent water-saving controllers, environmental protection systems, and water treatment facilities. The male thread + single union design enables quick installation and easy maintenance without full system disassembly, and the union + union option provides maximum piping flexibility for looped or inline configurations. Suitable for both liquid and gas media in space-constrained equipment and low-flow applications. Optional high-temperature mounting brackets extend the operating range up to 200°C for demanding process environments.
※1 Customization is available for temperatures outside the range of>45°C or<-20°C.
① t<-40°C, connect power at least 15 mins (30 mins recommend) before usage.For higher ambient temperatures, warm-up time may be reduced.
② t<- 40°C for long time, add protection to the actuator, eg: heating cable.Not required at ambient t ≥ -15°C.
Applications
Industrial automation & instrumentation
Intelligent water-saving controllers & actuated terminals
Environmental protection, low-flow, water supply & drainage, water treatment
Wirings & Electrical Parameters Table
Without Manual Override 【30SJ】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
| B3(S) BD3(S) | DC5V | DC4-8V | 4W | ≤55mA | 15±5mA | 2A | |
| DC12V | DC10-15V | 4W | ≤30mA | 15±5mA | 1A | ||
| DC24V | DC20-28V | 4W | ≤40mA | 10±5mA | 1A | ||
| AC220V | AC95-265V | 7W | ≤10mA | 10±5mA | 1A | ||
| KT2(S) KT32(S) | DC5V | DC4-8V | 7W | ≤1.1A | 20±5mA | 3A | |
| DC12V | DC10-15V | 10W | ≤835mA | 20±5mA | 2A | ||
| DC24V | DC20-28V | 10W | ≤420mA | 20±5mA | 1A | ||
| AC220V | AC95-265V | 15W | ≤70mA | 10±5mA | 1A | ||
With Manual Override 【30S】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
B2(S/J) B3(S/J) BD3(S/J) B33(J) B43.B44 | DC12V | DC10-15V | 8W | ≤120mA | 70±5mA | 2A | |
| AC/DC24V | AC16-30V | 7W | ≤100mA | 40±5mA | 1A | ||
| DC16-40V | |||||||
B3(J) BD3(J) B33(J) | AC220V | AC95-265V | 10W | ≤25mA | 10±5mA | 1A | |
KT2(S/J) KT32(S/J) | DC12V | DC10-15V | 10W | ≤920mA | 35±5mA | 2A | |
| AC/DC24V | AC12-30V | 12W | ≤520mA | 35±5mA | 2A | ||
| DC12-40V | |||||||
KT2(J) KT32(J) | AC220V | AC95-265V | 19W | ≤90mA | 20±5mA | 1A | |
High-speed
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
B3(J) BD3(J | DC24V | DC20-26V | 12W | ≤300mA | 15±5mA | 2A | |
KT2(J) KT32(J) | DC24V | DC20-26V | 25W | ≤1.05A | 25±5mA | 3A | |
※2 External fast-blow fuse specifications: Rated current ≥ 2-5 times the Max. nominal current of a single motorized valve.For multiple valves connected in parallel, the fuse rating should be increased according to actual requirements.
Notes: For the Fail-Safe function, please select the KT series control. The parameters listed above are standard.For more details, please consult our sales personnel.

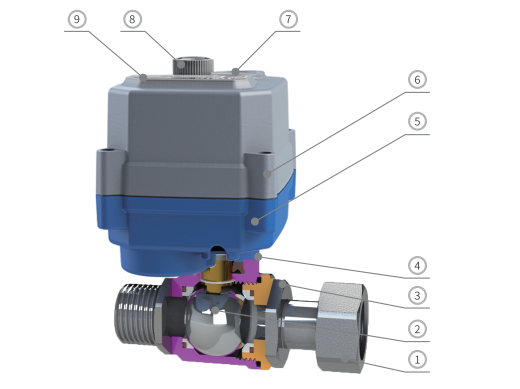

Main Components Diagram
Main Components
| No. | Part | Material | Qty |
| 1 | Bonnet | 304 / 316L | 1 |
| 2 | Ball | 304 / 316L / PPO / Special wear-resistant ball | 1 |
| 3 | Body | 304 / 316L | 1 |
| 4 | Mounting bracket | PA66 | 1 |
| 5 | Bottom cover | PC alloy ※3 | 1 |
| 6 | Top cover | PC alloy ※3 | 1 |
| 7 | Sight window | Transparent PC | 1 |
| 8 | Handwheel ※4 | POM | 1 |
| 9 | Label | PC | 1 |
※3 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene,ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.
※4 30SJ series without handwheel.

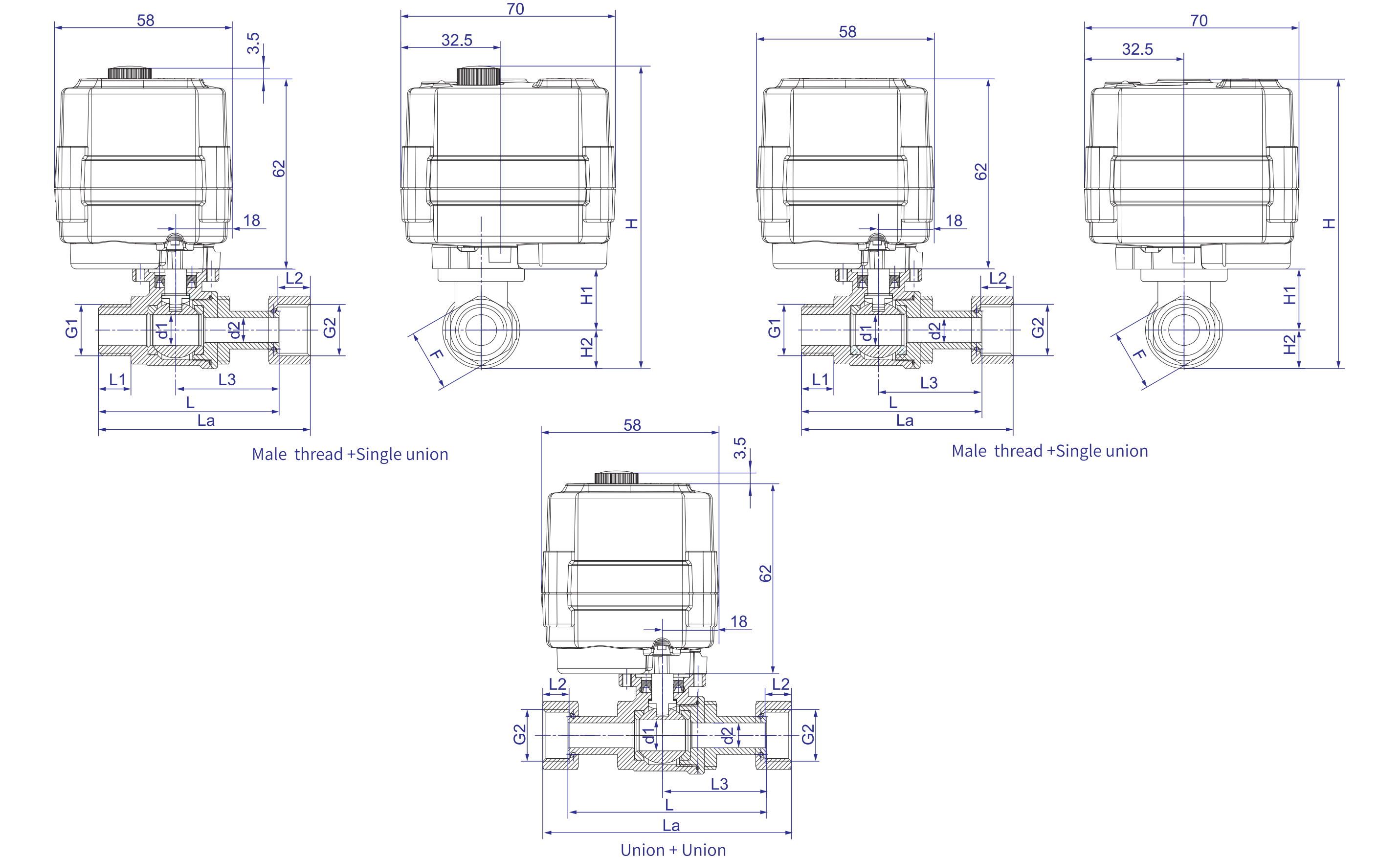

| Dimensions-30S 【DN10-DN20】 | Dimensions-30SJ 【DN10-DN20】 |
 | |
Dimensions (mm)
| DN | Connection type | G1 | G2 | d1 | d2 | L1 | L2 | L3 | L | La | F | H1 | H2 | H | W(kg) | ||
| 30S | 30SJ | ||||||||||||||||
| DN10 | Male thread +Single union | G3/8" | G3/8" | 10.0 | 8 | 10.5 | 8.5 | 33.5 | 58.5 | 66.6 | 20 | 12.5 | 19.75 | 97.75 | 94.25 | - | |
| Union + Union | - | - | 64.0 | 80.2 | |||||||||||||
| DN15 | Male thread +Single union | G1/2" | G1/2" | 14.0 | 12 | 15.0 | 10.8 | 39.5 | 73.5 | 83.5 | 27 | 16.5 | 21.25 | 103.25 | 99.75 | - | |
| Union + Union | - | - | 74.5 | 94.5 | |||||||||||||
| DN20 | Male thread +Single union | G3/4" | G3/4" | 18.5 | 15 | 16.0 | 11.0 | 44.0 | 80.0 | 90.1 | 32 | 21.5 | 25.75 | 112.75 | 109.25 | - | |
| Union + Union | - | - | 100.2 | ||||||||||||||
Note:
1. Part dimension tolerances are in accordance with GB/T 1804-2000, Class m.
2. Assembly tolerance: ±2 mm.
3. Optional port threads: NPT, G, etc. Please specify when ordering.
4. For medium temperatures from 100°C to 150°C, a high-temperature mounting bracket is required. Overall height = H + 33 mm.
5. For medium temperatures from 150°C to 200°C, a high-temperature mounting bracket is required. Overall height = H + 56 mm.
Attention:
1. Due to batch-to-batch variations, data may be subject to minor changes. The physical product shall prevail. We reserve the right for modifications without prior notice!
2. For applications with limited installation space or strict dimensional requirements, please contact the relevant sales personnel.
Instructions for Manual Override
Manual operation must be performed with power off. Refer to the manual for details.
※Subject to technical changes
