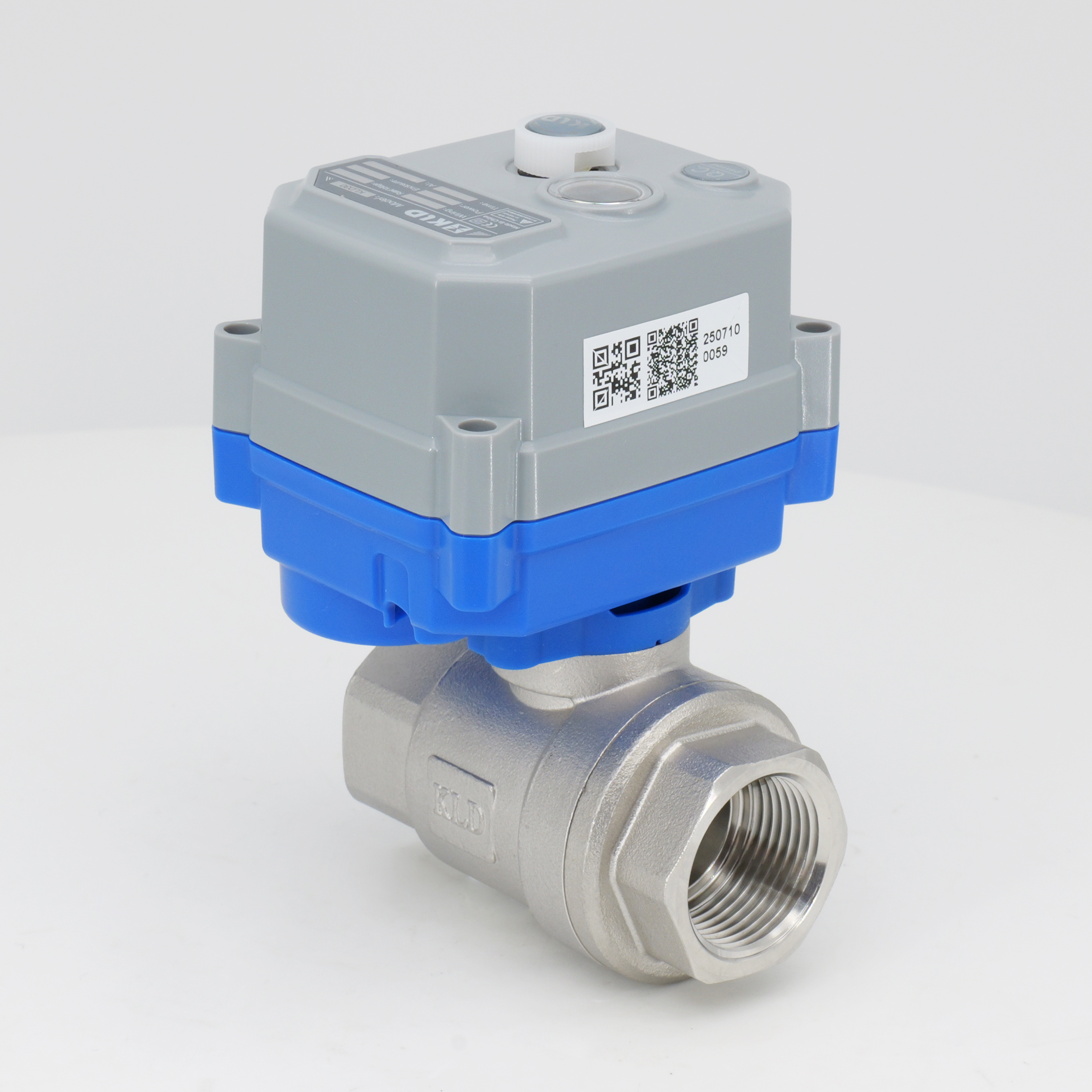

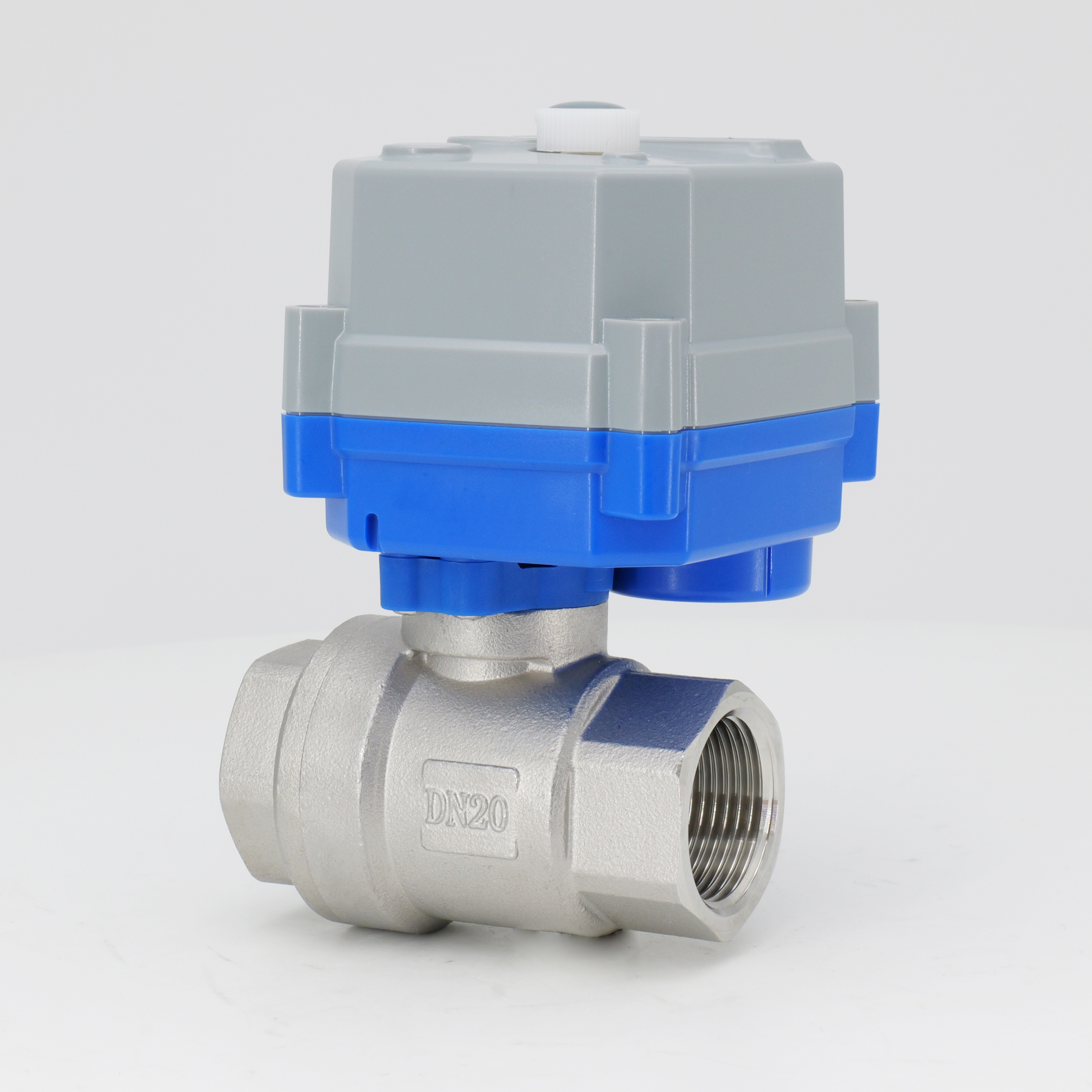

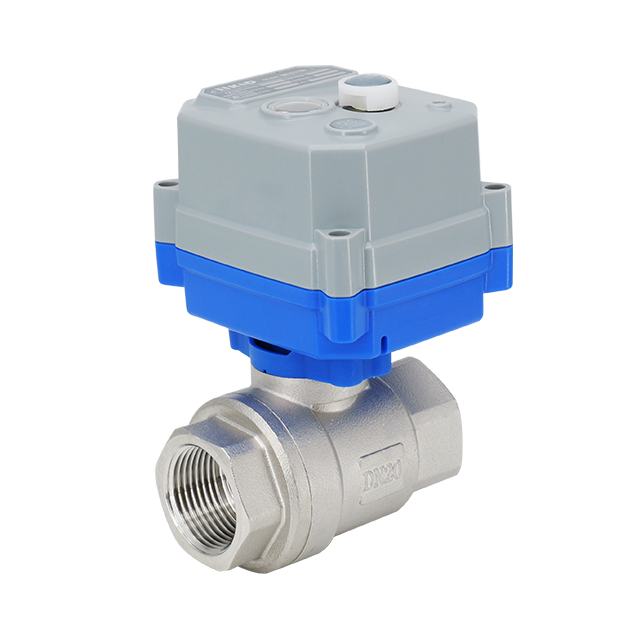

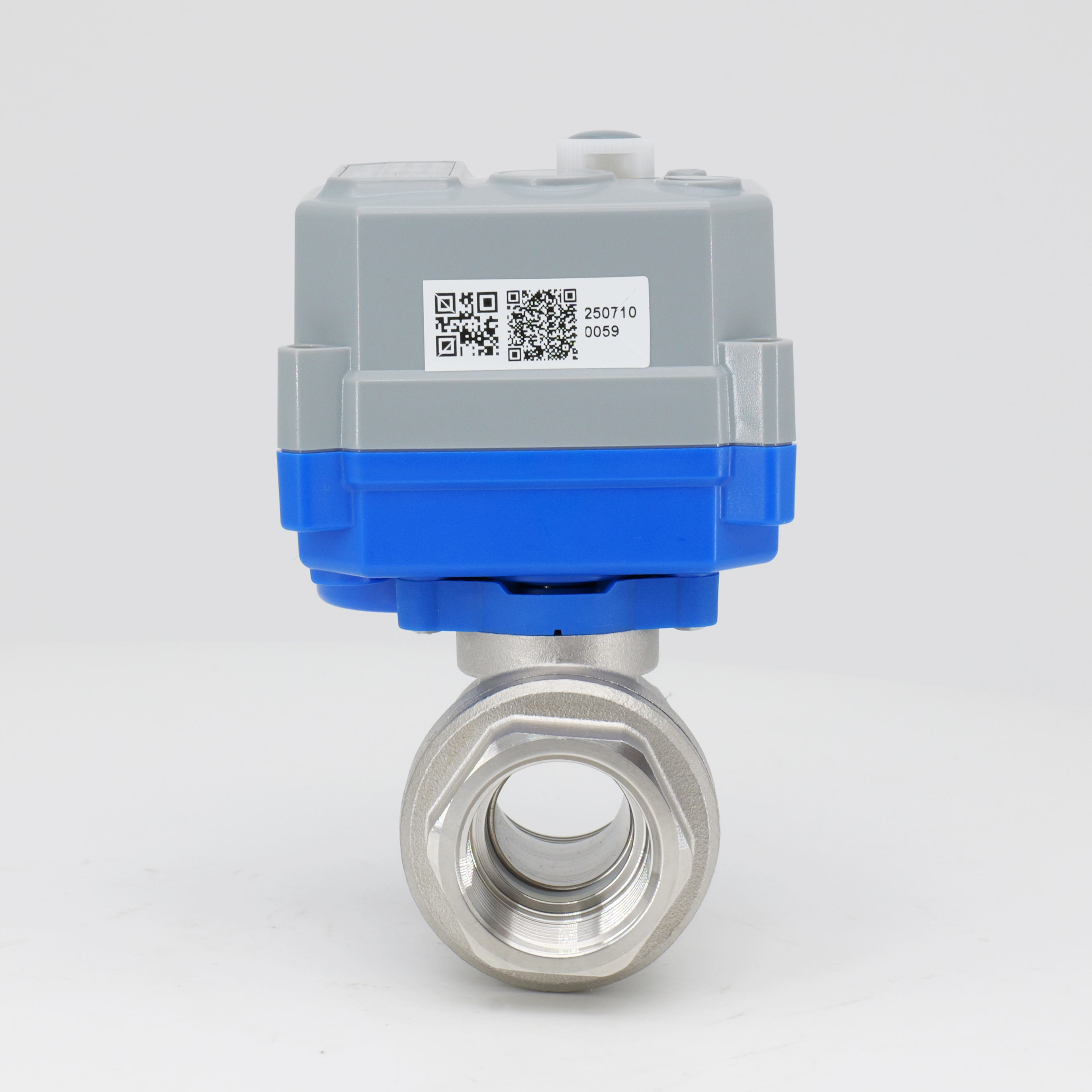

KLD30S/SJ 2-Way Full-Port Motorized Ball Valve

Features:

70,000 cycles (Complete assembly)

500,000 cycles (Upgraded actuator) ※1

Mini dimension, suits small equipment
Manual Override is optional
Full port ball

※1 Data determined under laboratory test conditions; actual performance may vary on site.


Availability:



Inquire Add to Basket

Product Description

Description

The Normal On/Off 2‑Way Motorized Ball Valve from the KLD30S/SJ Series is equipped with female thread connections, available in sizes DN8 to DN20. It features a full port design for unrestricted flow. The valve body comes in nickel-plated brass, 304, or 316L stainless steel. The ball is available in 304/316L stainless steel, PPO, or special wear-resistant options. PTFE ball seats ensure reliable sealing. The 30S model includes a manual override handwheel, while the 30SJ omits it for compact installations. The actuator can be upgraded to a service life of up to 500,000 cycles. High-temperature mounting brackets are available for media up to 200°C. Manufactured under an ISO 9001 quality management system.

Technical specifications

Valve Type: 2-Way Motorized Ball Valve
Sizes: DN8, DN10, DN15, DN20
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0–100°C / 120°C / 150°C
Ambient Temperature: -20°C to 45°C (customizable) ※1

This valve is widely used in industrial automation, water treatment, and low-flow control systems. The full port design minimizes pressure drop for efficient fluid handling. Suitable for both liquid and gas media in environmental protection, water supply and drainage, and instrumentation applications. The compact form factor fits tight equipment spaces. Optional high-temperature brackets support demanding thermal environments.

※1 Customization is available for temperatures outside the range of>45°C or<-20°C.

① t<-40°C, connect power at least 15 mins (30 mins recommend) before usage.For higher ambient temperatures, warm-up time may be reduced.

② t<- 40°C for long time, add protection to the actuator, eg: heating cable.Not required at ambient t ≥ -15°C.

Applications

Industrial automation & instrumentation
Intelligent water-saving controllers & actuated terminals
Environmental protection, low-flow, water supply & drainage, water treatment

Wirings & Electrical Parameters Table

Without Manual Override 【30SJ】

Wiring	Nominal Voltage	Voltage Range	Max. Power	Operating Current	Quiescent Current	External Fuse ※2
B3(S) BD3(S)	DC5V	DC4-8V	4W	≤55mA	15±5mA	2A
	DC12V	DC10-15V	4W	≤30mA	15±5mA	1A
	DC24V	DC20-28V	4W	≤40mA	10±5mA	1A
	AC220V	AC95-265V	7W	≤10mA	10±5mA	1A
KT2(S) KT32(S)	DC5V	DC4-8V	7W	≤1.1A	20±5mA	3A
	DC12V	DC10-15V	10W	≤835mA	20±5mA	2A
	DC24V	DC20-28V	10W	≤420mA	20±5mA	1A
	AC220V	AC95-265V	15W	≤70mA	10±5mA	1A

With Manual Override 【30S】

Wiring	Nominal Voltage	Voltage Range	Max. Power	Operating Current	Quiescent Current	External Fuse ※2
B2(S/J) B3(S/J) BD3(S/J) B33(J) B43.B44	DC12V	DC10-15V	8W	≤120mA	70±5mA	2A
	AC/DC24V	AC16-30V	7W	≤100mA	40±5mA	1A
		DC16-40V
B3(J) BD3(J) B33(J)	AC220V	AC95-265V	10W	≤25mA	10±5mA	1A
KT2(S/J) KT32(S/J)	DC12V	DC10-15V	10W	≤920mA	35±5mA	2A
	AC/DC24V	AC12-30V	12W	≤520mA	35±5mA	2A
		DC12-40V
KT2(J) KT32(J)	AC220V	AC95-265V	19W	≤90mA	20±5mA	1A

High-speed

Wiring

Nominal Voltage

Voltage Range

Max. Power

Operating Current

Quiescent Current

External Fuse ※2

B3(J)

BD3(J

DC24V

DC20-26V

12W

≤300mA

15±5mA

2A

KT2(J)

KT32(J)

DC24V

DC20-26V

25W

≤1.05A

25±5mA

3A

※2 External fast-blow fuse specifications: Rated current ≥ 2-5 times the Max. nominal current of a single motorized valve.For multiple valves connected in parallel, the fuse rating should be increased according to actual requirements.

Notes: For the Fail-Safe function, please select the KT series control. The parameters listed above are standard.For more details, please consult our sales personnel.

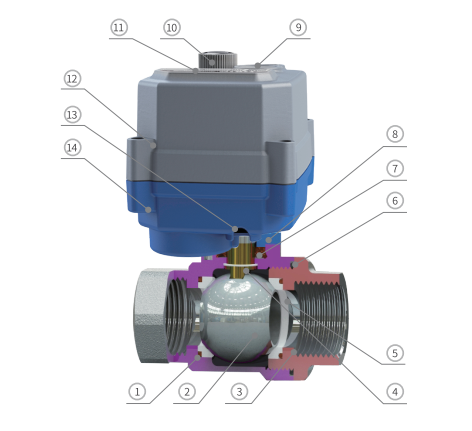

Main Components Diagram

Main Components

No.	Part	Material	Qty
1	Body	Nickel-plated Brass/ 304/316L/2507	1
2	Ball	304/316L/PPO/ Special wear-resistant ball/2507	1
3	Bonnet	Nickel-plated Brass/ 304/316L/2507	1
4	Stem	Brass/304/316L/2507	1
5	Ball seat ※3	PTFE	2
6	Bonnet seal	EPDM/NBR/FPM ※4	1
7	Stem seal	EPDM/NBR/FPM ※4	1
8	Mounting bracket	PA66	1
9	Sight window	Transparent PC	1
10	Handwheel ※5	POM	1
11	Label	PC	1
12	Top cover	PC alloy ※6	1
13	Cable gland lock nut	PA66	1
14	Bottom cover	PC alloy ※6	1

※3 For gaseous media, wear-resistant PTFE is recommended.

※4 Other materials are customizable.

※5 30SJ series without handwheel.

※6 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene,ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.

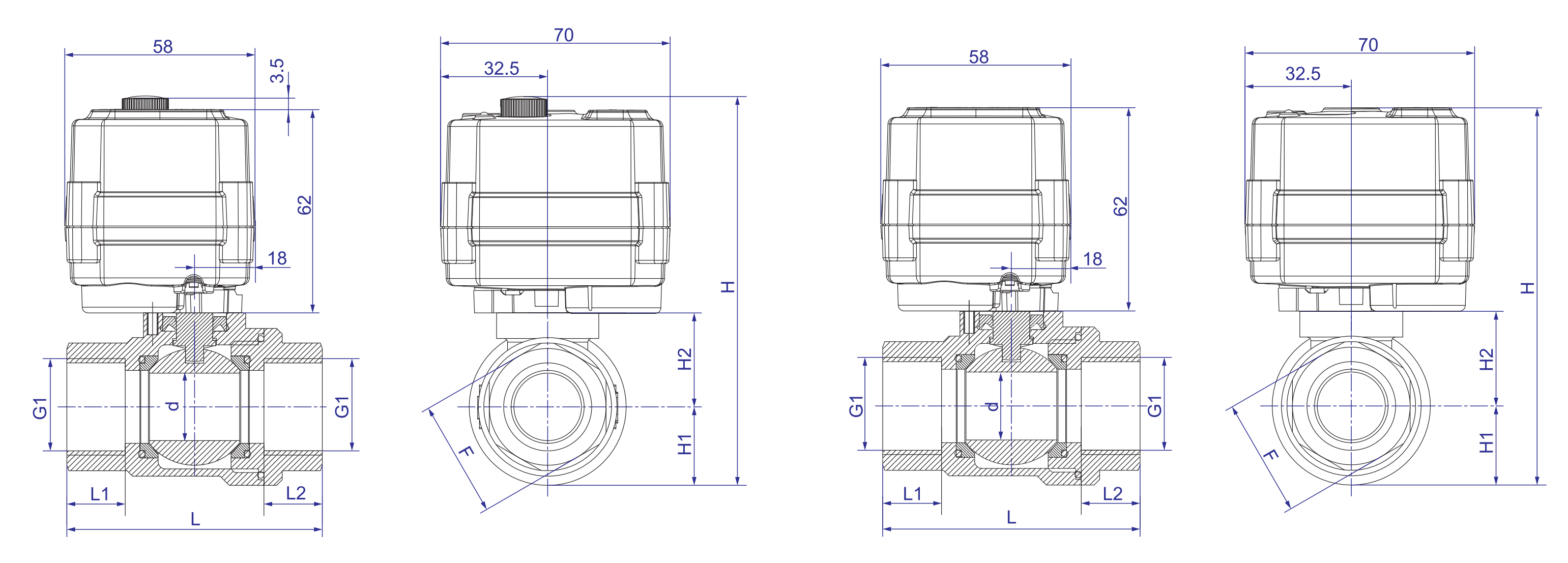

Dimensions-30S 【DN8-DN10】	Dimensions-30SJ 【DN8-DN10】

Dimensions (mm)

Body type	Connection type	DN	d	G1	L1=L2	L	F	H1	H2	H		Material	W(kg)
										30S	30SJ
Full bore	Female thread	DN8	8	G1/4"	11.0	43	17	11.0	18.25	94.75	91.25	Cu/304/316L	-
		DN10	10	G3/8"	11.5	50	20	12.5	19.75	97.75	94.25	304/316L	-

Note:

1. Part dimension tolerances are in accordance with GB/T 1804-2000, Class m.

2. Assembly tolerance: ±2 mm.

3. Optional port threads: NPT, G, etc. Please specify when ordering.

4. For medium temperatures from 100°C to 150°C, a high-temperature mounting bracket is required. Overall height = H + 33 mm.

5. For medium temperatures from 150°C to 200°C, a high-temperature mounting bracket is required. Overall height = H + 56 mm.

Attention:

1. Due to batch-to-batch variations, data may be subject to minor changes. The physical product shall prevail. We reserve the right for modifications without prior notice!

2. For applications with limited installation space or strict dimensional requirements, please contact the relevant sales personnel.

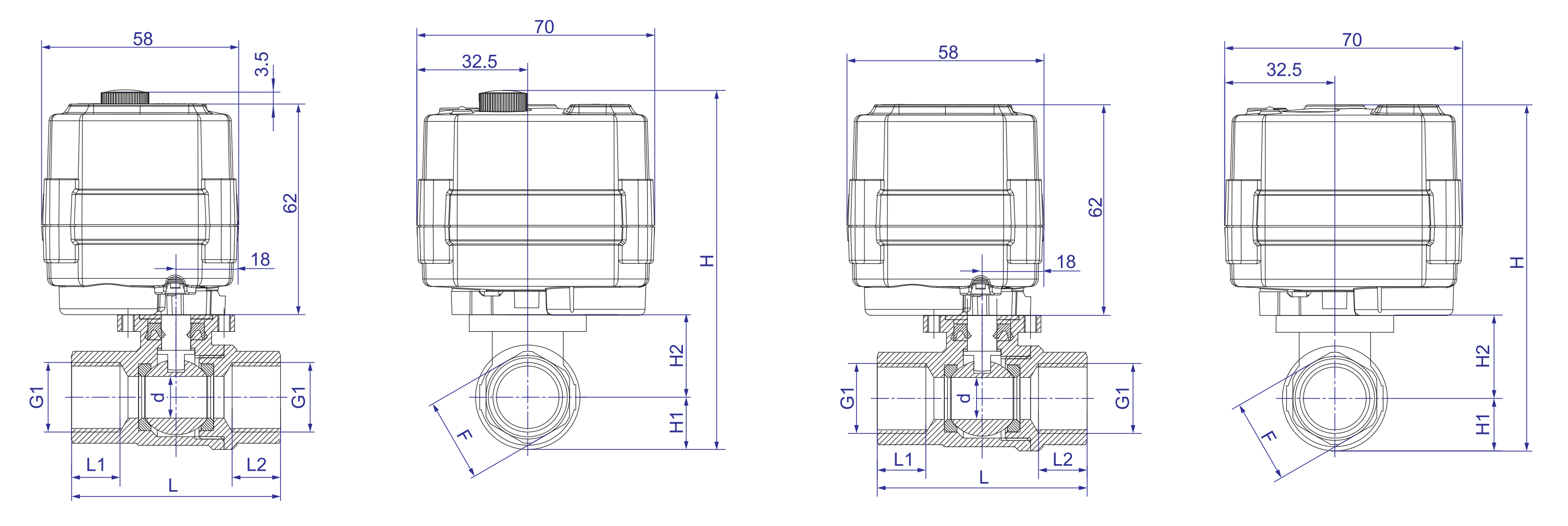

Dimensions-30S 【DN15-DN20】	Dimensions-30SJ 【DN15-DN20】
