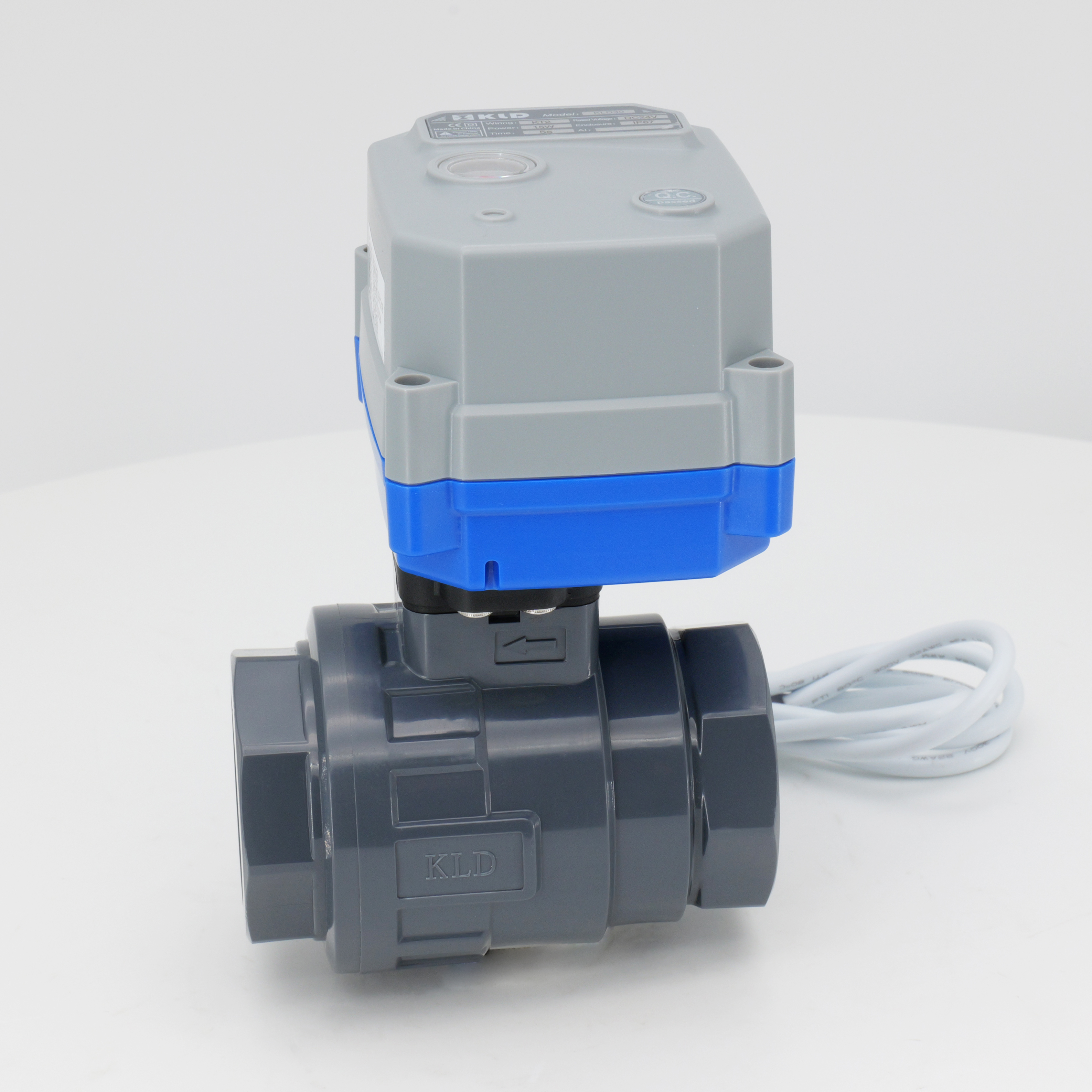

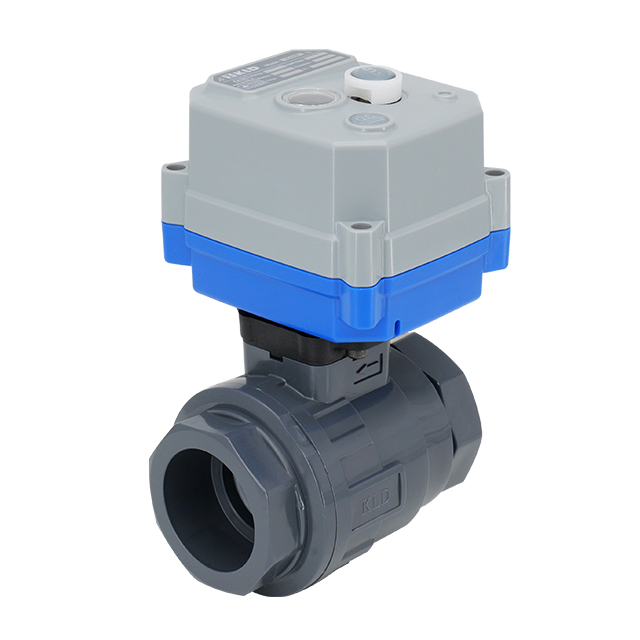

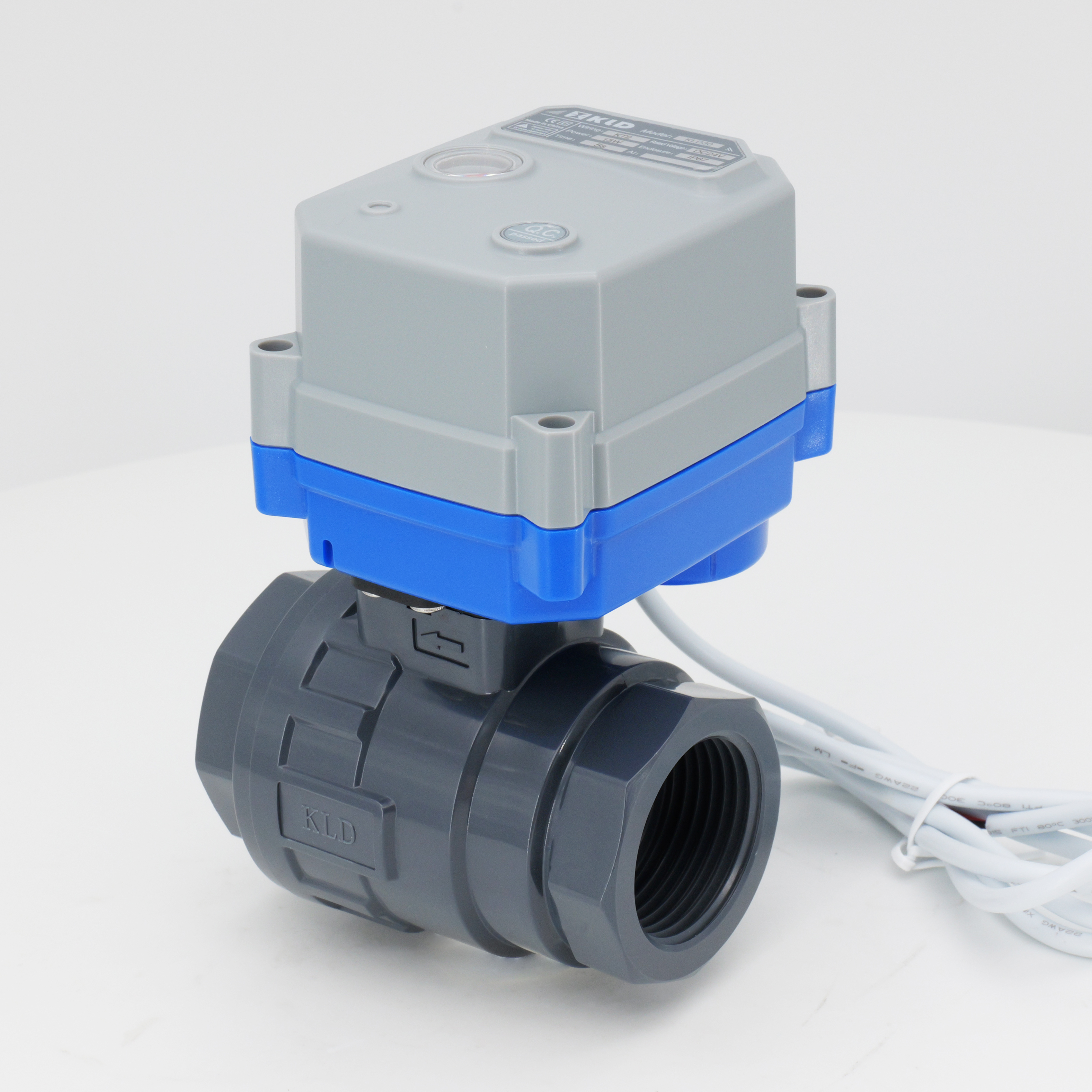

Description
The KLD30S/SJ Normal On/Off 2-way Full-Port plastic motorized ball valve is made of UPVC. It is designed specifically for handling corrosive media such as acids and alkalis. The valve body, ball, and bonnet are all constructed from UPVC for excellent chemical resistance. The ball seat is PTFE, and the stem is UPVC with a 304 stainless steel insert for reliable torque transmission. Available in DN25 with female thread or socket connections. The 30S model includes a manual override handwheel. The 30SJ omits it for compact installations. The actuator can be upgraded to a service life of up to 500,000 cycles. It can replace conventional solenoid valves where they cannot work reliably. Manufactured under an ISO 9001 quality management system.
Technical specifications
Valve Type: 2-Way Plastic Motorized Ball Valve
Sizes: DN25
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0–45°C
Ambient Temperature: -20°C to 45°C
This valve is widely used in corrosive fluid handling in water treatment, environmental protection, and industrial automation. The UPVC construction withstands acids, alkalis, and other aggressive media. Socket connection option enables solvent-cemented joints for leak-free piping. Commonly used as a reliable alternative to solenoid valves in corrosive environments. Suitable for both liquid and gas media.
Applications
Used for corrosive medium such as acids and alkalis,etc.
Replaces conventional solenoid valves, especially where they cannot work reliably.
Environmental protection, water supply & drainage, water treatment
Industrial automation and other small equipment
Wirings & Electrical Parameters Table
Without Manual Override 【30SJ】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※1 | |
| B3(S) BD3(S) | DC5V | DC4-8V | 4W | ≤55mA | 15±5mA | 2A | |
| DC12V | DC10-15V | 4W | ≤30mA | 15±5mA | 1A | ||
| DC24V | DC20-28V | 4W | ≤40mA | 10±5mA | 1A | ||
| AC220V | AC95-265V | 7W | ≤10mA | 10±5mA | 1A | ||
| KT2(S) KT32(S) | DC5V | DC4-8V | 7W | ≤1.1A | 20±5mA | 3A | |
| DC12V | DC10-15V | 10W | ≤835mA | 20±5mA | 2A | ||
| DC24V | DC20-28V | 10W | ≤420mA | 20±5mA | 1A | ||
| AC220V | AC95-265V | 15W | ≤70mA | 10±5mA | 1A | ||
With Manual Override 【30S】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※1 | |
B2(S/J) B3(S/J) BD3(S/J) B33(J) B43.B44 | DC12V | DC10-15V | 8W | ≤120mA | 70±5mA | 2A | |
| AC/DC24V | AC16-30V | 7W | ≤100mA | 40±5mA | 1A | ||
| DC16-40V | |||||||
B3(J) BD3(J) B33(J) | AC220V | AC95-265V | 10W | ≤25mA | 10±5mA | 1A | |
KT2(S/J) KT32(S/J) | DC12V | DC10-15V | 10W | ≤920mA | 35±5mA | 2A | |
| AC/DC24V | AC12-30V | 12W | ≤520mA | 35±5mA | 2A | ||
| DC12-40V | |||||||
KT2(J) KT32(J) | AC220V | AC95-265V | 19W | ≤90mA | 20±5mA | 1A | |
High-speed
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※1 | |
B3(J) BD3(J | DC24V | DC20-26V | 12W | ≤300mA | 15±5mA | 2A | |
KT2(J) KT32(J) | DC24V | DC20-26V | 25W | ≤1.05A | 25±5mA | 3A | |
※1 External fast-blow fuse specifications: Rated current ≥ 2-5 times the Max. nominal current of a single motorized valve.For multiple valves connected in parallel, the fuse rating should be increased according to actual requirements.
Notes: For the Fail-Safe function, please select the KT series control. The parameters listed above are standard.For more details, please consult our sales personnel.

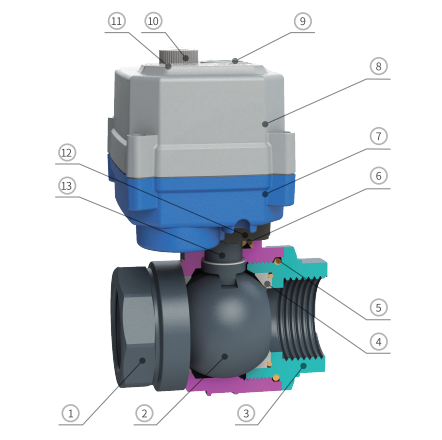

Main Components Diagram
Main Components
| No. | Part | Material | Qty |
| 1 | Body | UPVC | 1 |
| 2 | Ball | UPVC | 1 |
| 3 | Bonnet | UPVC | 1 |
| 4 | Ball seat ※2 | PTFE | 2 |
| 5 | Bonnet seal | EPDM/NBR/FPM ※3 | 1 |
| 6 | Stem seal | EPDM/NBR/FPM ※3 | 1 |
| 7 | Bottom cover | PC alloy ※4 | 1 |
| 8 | Top cover | PC alloy ※4 | 1 |
| 9 | Sight window | Transparent PC | 1 |
| 10 | Handwheel ※5 | POM | 1 |
| 11 | Label | PC | 1 |
| 12 | Mounting bracket | PA66 | 1 |
| 13 | Stem | UPVC + 304 | 1 |
| *1 | Cable gland lock nut | PA66 | 1 |
※2 For gaseous media, wear-resistant PTFE is recommended.
※3 Other materials are customizable.
※4 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene,ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.
※5 30SJ series without handwheel.

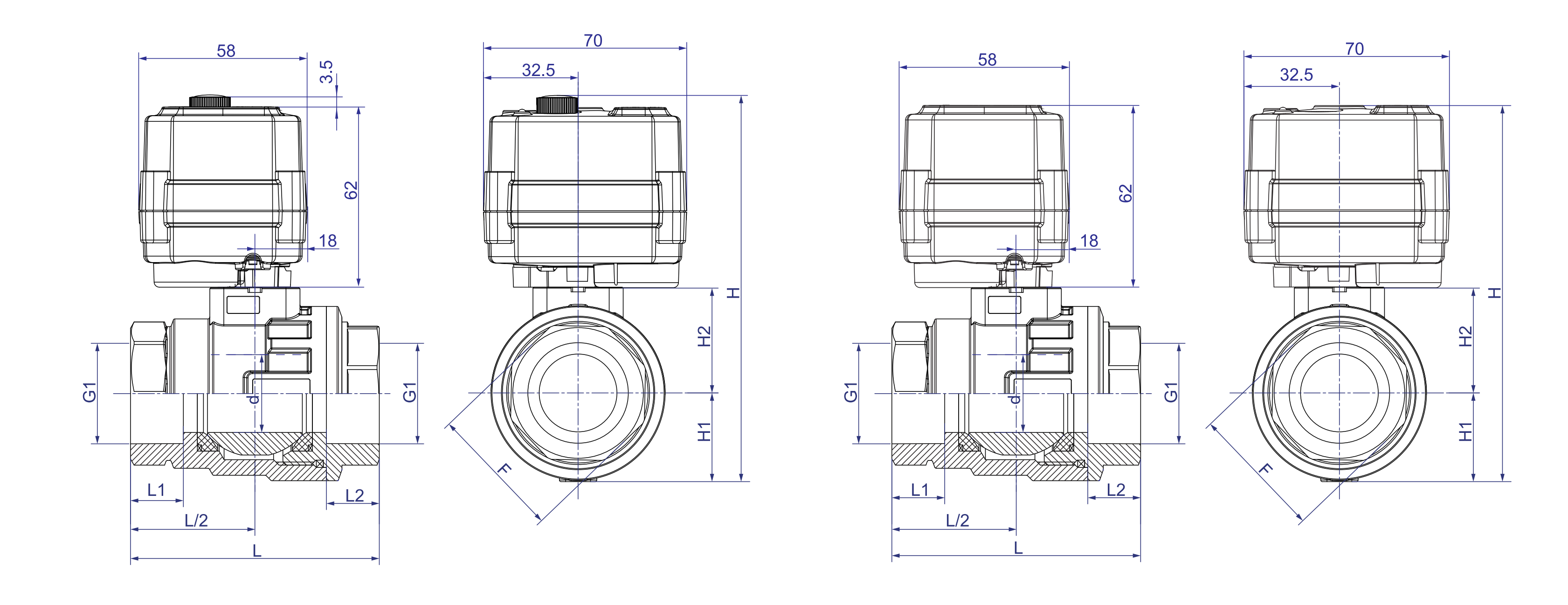

| Dimensions-30S 【DN25】 | Dimensions-30SJ 【DN25】 |
 | |
Dimensions (mm)
| DN | d | G1 | L1=L2 | L | H1 | H2 | H | F | W(kg) | |||
| Thread | Socket | Thread | Socket | 30S | 30SJ | |||||||
| DN25 | 25 | G1" | 32.3 | 17 | 17 | 80 | 28 | 34 | 128.25 | 124.75 | 43 | - |
Note:
1. Part dimension tolerances are in accordance with GB/T 1804-2000, Class m.
2. Assembly tolerance: ±2 mm.
3. Optional port threads: NPT, G, etc. Please specify when ordering.
Attention:
1. Due to batch-to-batch variations, data may be subject to minor changes. The physical product shall prevail. We reserve the right for modifications without prior notice!
2. For applications with limited installation space or strict dimensional requirements, please contact the relevant sales personnel.
Instructions for Manual Override
Manual operation must be performed with power off. Refer to the manual for details.
※Subject to technical changes
