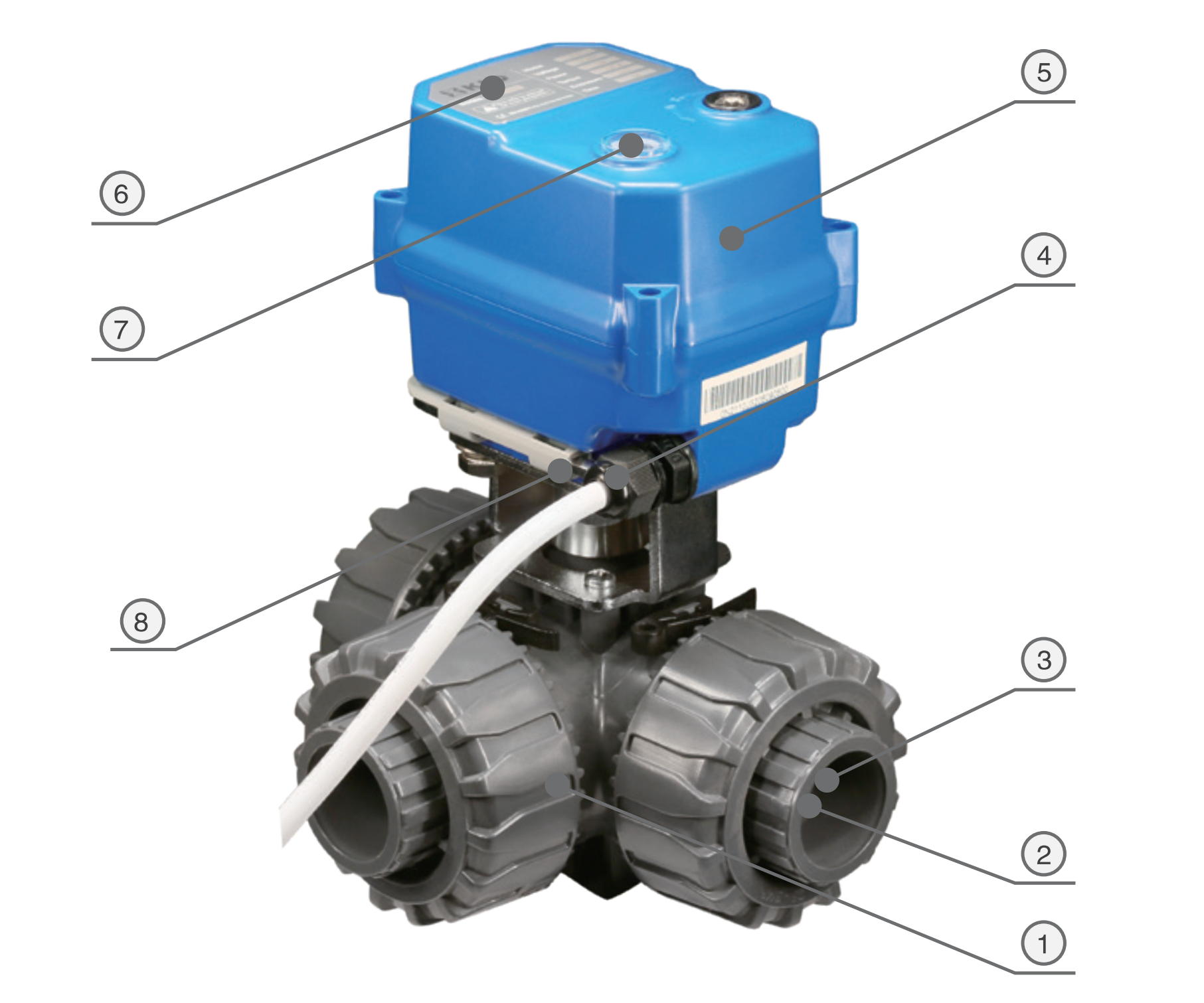

Description

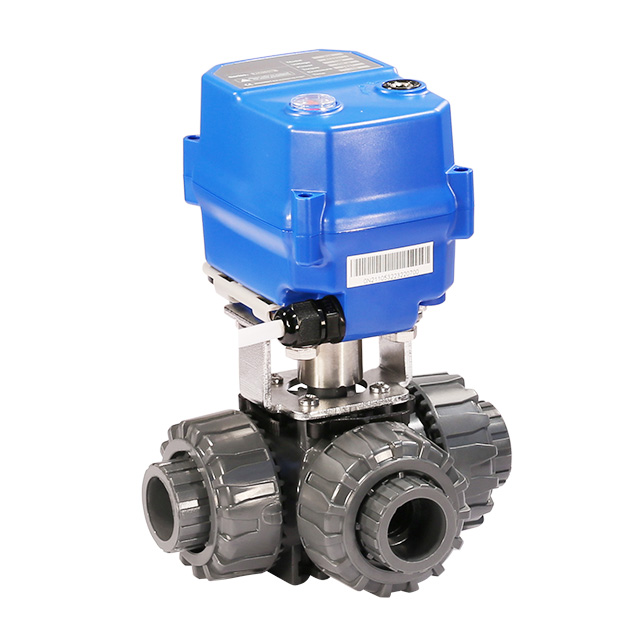

KLD100 3-Way Motorized Ball Valve (UPVC) is a high-performance valve designed for a variety of applications. Crafted from UPVC material, it offers excellent corrosion resistance and ensures long-term stable operation. This valve supports both manual and electric operation, providing versatility and convenience. The use of a brushless motor ensures stable and reliable performance, extending the valve's lifespan compared to those with brush motors.
Technical specifications include
Valve type: Three-way motorized ball valve
Sizes: DN15, DN20
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium temperature: 0°C to 45°C
Ambient temperature: -15°C to 45°C
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
6Nm | DC24V | 24W | B2S/B3S/BD3S | 2s | IP67 or F Type | 1.0MPa | 0-45℃ |
10Nm/6Nm@KT | AC/DC95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5s | |||
AC/DC24V | B2S/B3S /BD3S/KT32S | ||||||
DC12V | |||||||
10Nm | AC24V | 12W | B3S | 10s | |||
AC110V | |||||||
AC220V |
DN | d | L1=L2=L3 | G1 | L4 | L | H | W (kg) | ||||
thread | socket | thread | socket | thread | socket | thread | socket | ||||
DN15 | 15 | 15 | 15.0 | G1/2" | 20 | 62.5 | 58.5 | 125 | 117 | 163.1 | 1.0 |
DN20 | 20 | 20 | 16.3 | G3/4" | 25 | 73.0 | 72.0 | 146 | 144 | 173.6 | 1.2 |
Flow Direction
Functional Data
| Angle of Rotation | 90° ± 2° |
| Degree of Protection | IP67 F type [damp-proof,adding dehumidifying heater] As Per Q/12NK 4404-2023 |
| Manual Override | Matching hexagon wrench (only using at no power) |
| Position Indicator |  |
Working Conditions
| Ambient Temp. | -15℃<t<45℃ |
| Ambient Humidity | 5-95%RH,non-condensing |
| Medium Temp. | 0-45℃ |
※Subject to technical changes
