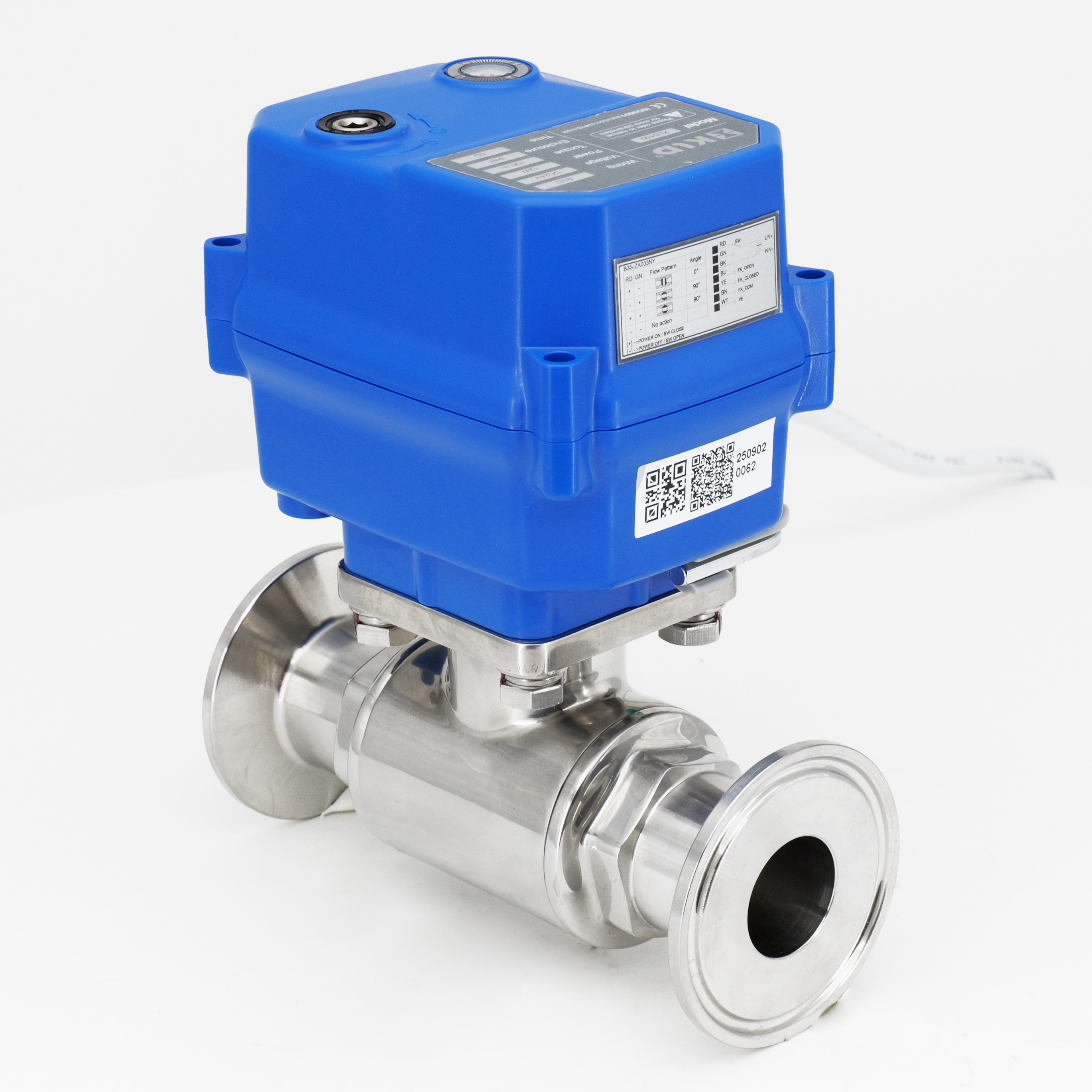

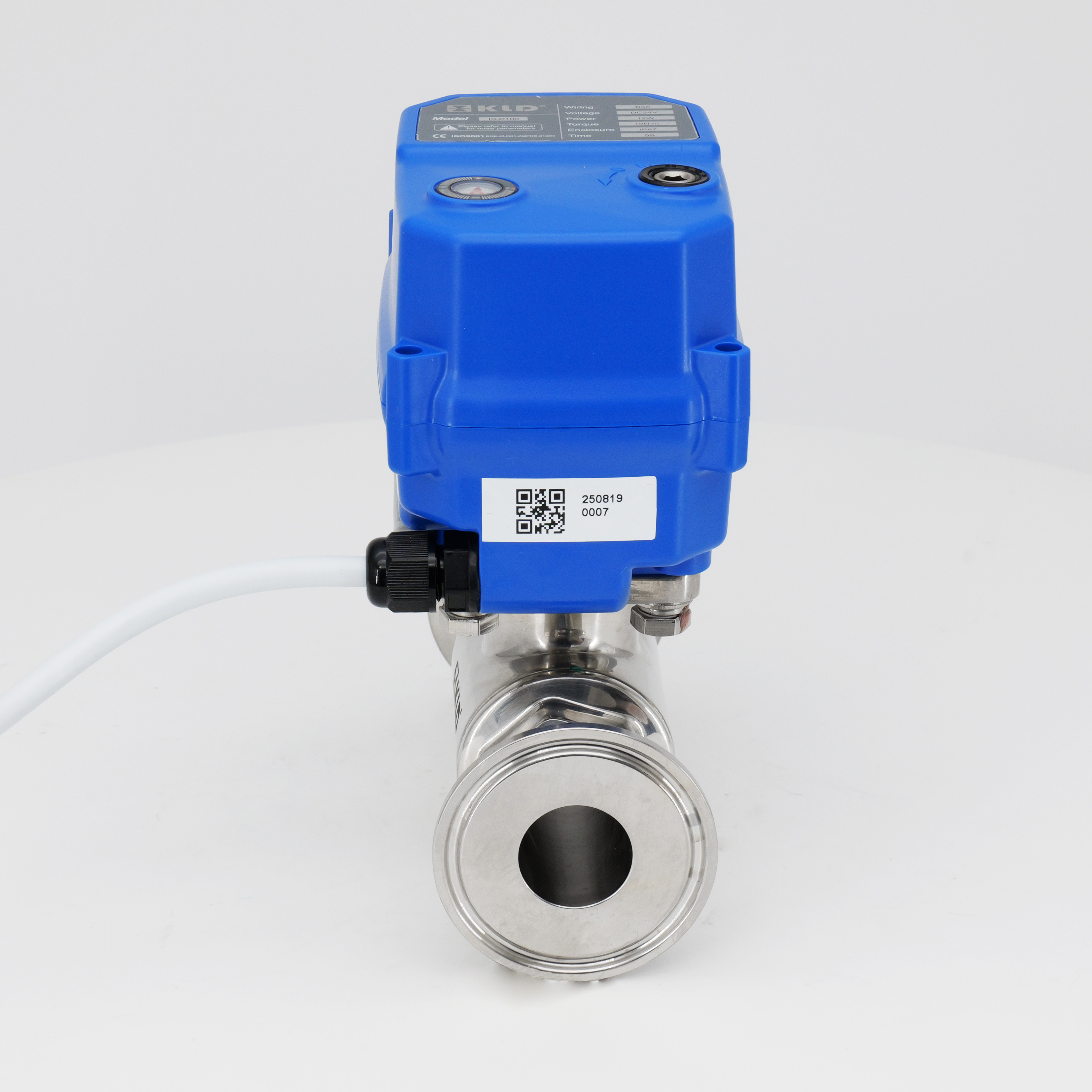

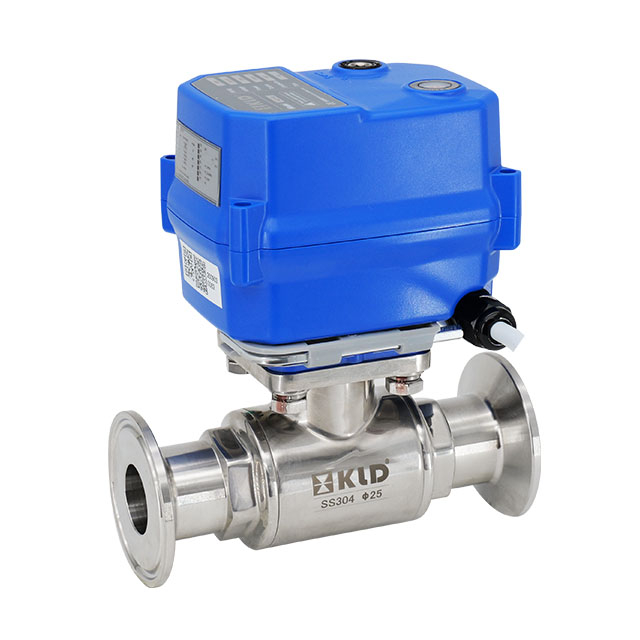

Description
KLD100 2-Way Motorized Ball Valve for Fast Assembled (Tri-Clamp) is designed for fast assembly with a tri-clamp connection, offering a compact and reliable solution for flow control in various applications. The valve features a robust construction with a stainless steel body (304/316/316L) and PTFE ball seat, ensuring durability and compatibility with a wide range of media. Its brushless motor provides stable and reliable operation, with a long service life of up to 20,000 cycles, suitable for demanding industrial environments.
Technical specifications include
Valve Type: 2-Way Motorized Ball Valve
Sizes: Φ19, Φ25, Φ32
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 100°C
Ambient Temperature: -15°C to 45°C
This product complies with ISO 9001, ensuring high quality and safety. It is an excellent choice for water treatment systems, eco-friendly applications, and other industrial automation processes, offering significant advantages in miniaturization, longevity, response speed, and safety.
CE approved.
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
| Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
| 6Nm | DC24V | 24W | B2S/B3S/BD3S | 2s | IP67 or F Type | 1.0MPa | 0-100℃ ※2 |
| 10Nm/6Nm@KT | AC/DC95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5s | |||
| AC/DC24V | B2S/B3S/BD3S/KT32S | ||||||
| DC12V | |||||||
| 10Nm | AC24V | 12W | B3S | 10s | |||
| AC110V | |||||||
| AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100℃.

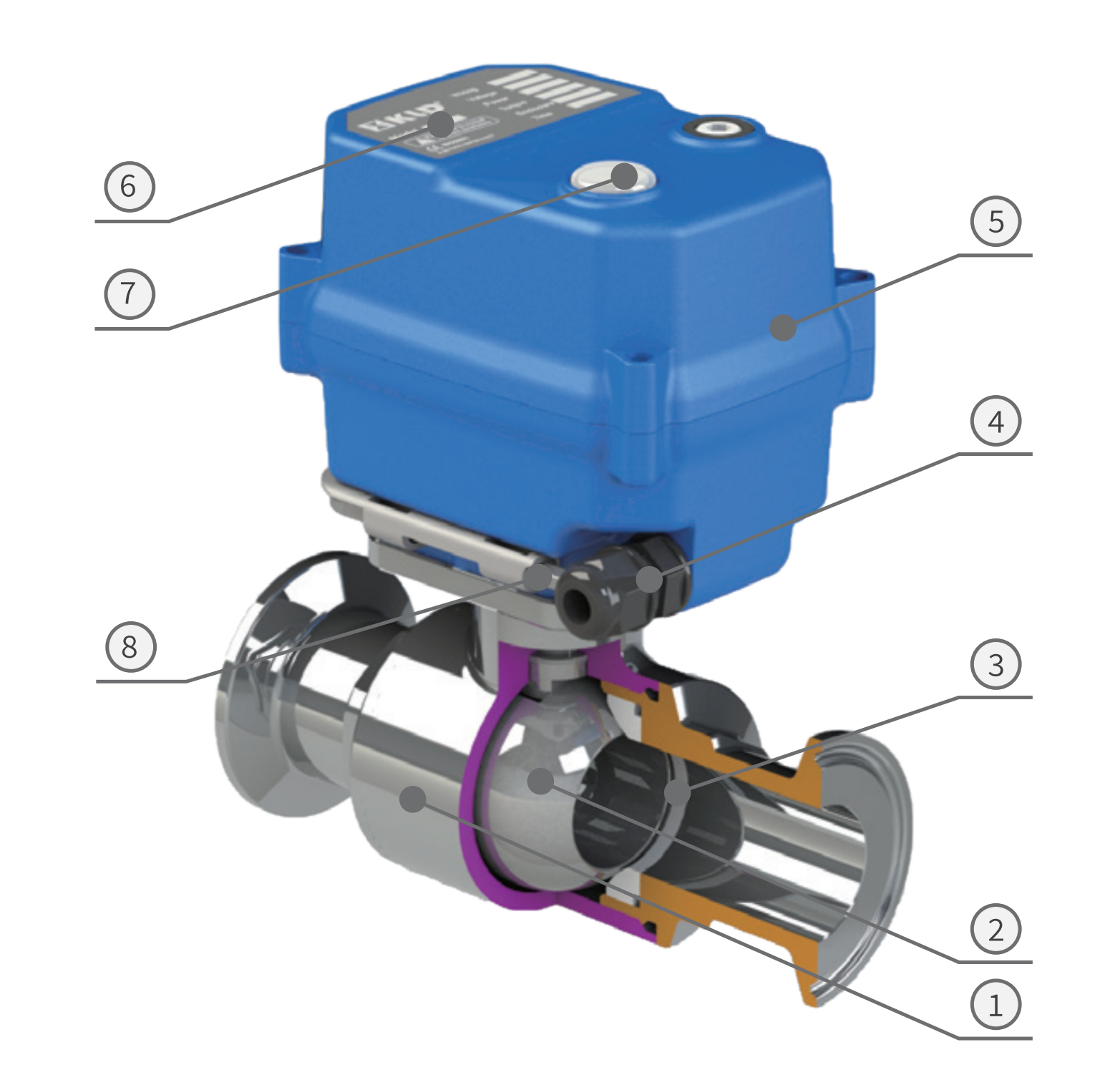

Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316/316L | 1 |
| 2 | Ball | 304/316/316L | 1 |
| 3 | Ball seat | PTFE | 2 |
| 4 | Cable connector | Nylon, nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※ | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform ect., due to corrosion resistance characteristics of PC materials.
Dimensions [Φ19-Φ32]
Dimensions (mm)
DN | d | D1 | D2 | L | L1 | H1 | H2 | H | W (kg) |
Φ19 | 15 | 50.5 | 43.5 | 103 | 51.5 | 42.75 | 25.25 | 143.6 | 1.23 |
Φ25 | 20 | 50.5 | 43.5 | 116 | 58.0 | 39.50 | 25.25 | 140.4 | - |
| Φ32 | 25 | 50.5 | 43.5 | 122 | 61.0 | 47.00 | 25.25 | 147.9 | - |
Functional Data
| Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof,adding dehumidifying heater] As Per Q/12NK 4404-2023 |
| Manual Override | Matching hexagon wrench (only using at no power) |
| Position Indicator |  |
Working Conditions
Ambient Temp. | -15℃<t<45℃ (can be customized for other temp.) |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0-100℃ |
※Subject to technical changes
