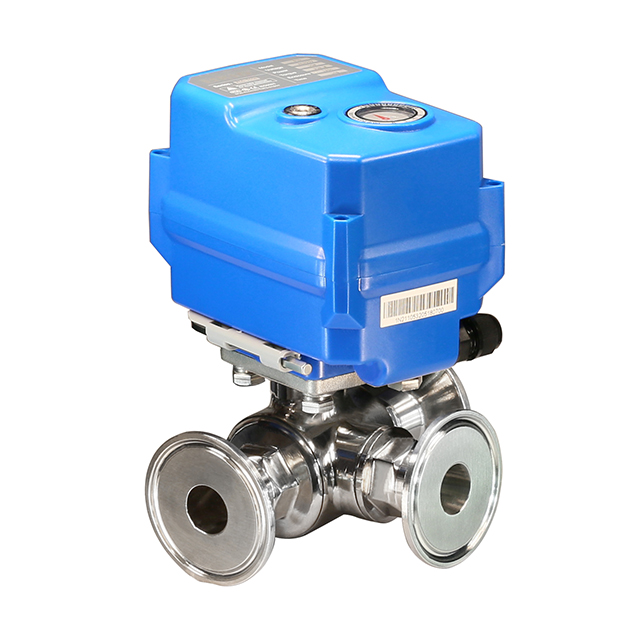

Description
The KLD200 3-Way Motorized Ball Valve is designed for fast assembly with a tri-clamp connection, making it ideal for hygienic and compact fluid control applications. The valve body and ball are constructed from 304, 316, or 316L stainless steel, providing excellent corrosion resistance and durability. It features a fail-safe function, allowing selection between normally open or normally closed operation, serving as a reliable alternative to solenoid valves. The brushless motor ensures stable and quiet performance, while the included hex key enables safe manual override in case of power loss. With a compact design suitable for small equipment and an IP67 protection rating, it is both waterproof and dustproof, supporting use in demanding environments.
Technical specifications include
Valve type: 3-way motorized ball valve
Connection: Tri-Clamp (quick assembly)
Available sizes: Φ19, Φ25, Φ32
Pressure rating: Maximum 1.0 MPa
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
Manual override: Hex key (for use in no-power situations)
The KLD200 3-way motorized ball valve is widely used in water treatment systems, water-saving applications, and other eco-friendly automated equipment. It offers long service life (up to 20,000 cycles), and both high-speed and standard versions are available to meet various operational requirements.
CE Certified.
Applications
Water treatment system
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
20Nm | DC24V | 85W | B3S/BD3S | 1s | IP67 or F Type | 1.0Mpa | 0-100℃ ※2 |
15Nm | DC12V | 15W/25W@KT | B2S/B3S/BD3S/KT32S | 15s | |||
20Nm | DC12Vh | 25W@10s/36W@KT | 10s | ||||
20Nm 15Nm@6s | AC/DC24V | 15W@10s/25W@6s/36W@KT | 10s/6s | ||||
AC/DC95-265V | 15W@10s/25W@6s/36W@KT | B3S/BD3S/KT32S | |||||
20Nm | AC24V | 15W | B3S/BD3S | 15s | |||
AC110V | |||||||
AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100 ℃.
Notes: Type S adopts micro-motion feedback, which can maintain the signal status after power failure with a slight delay relative to the valve position action. If synchronous feedback signal with the valve position is required, the 200C-J relay feedback solution is recommended, and detailed technical parameters can be obtained by consulting our customer service.

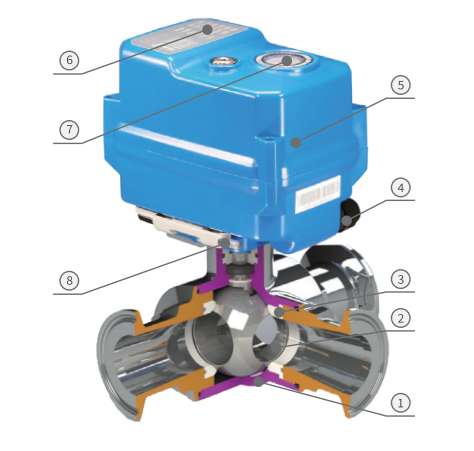

Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316/316L | 1 |
| 2 | Ball | 304/316/316L | 1 |
| 3 | Ball seat | PTFE | 4 |
| 4 | Cable connector | Nylon, nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※/ die-casting aluminum | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hex key | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.

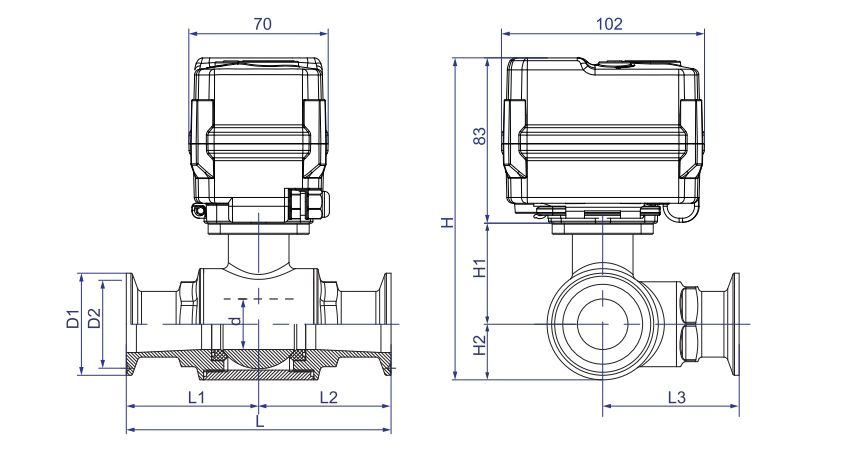

| Dimensions【Ф19-Ф32】 | |
|
Dimensions (mm)
DN | d | D1 | D2 | L | L1=L2 | L3 | H1 | H2 | H | W (kg) |
| Ф19 | 15 | 50.5 | 43.5 | 108 | 54.0 | 52.0 | 44.25 | 25.25 | 143.0 | 1.7 |
| Ф25 | 20 | 50.5 | 43.5 | 125 | 62.5 | 60.0 | 45.75 | 25.25 | 154.0 | - |
| Ф32 | 25 | 50.5 | 43.5 | 131 | 65.5 | 67.5 | 50.00 | 27.50 | 160.5 | - |
Functional Data
| Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof, adding dehumidifying heater] As Per Q/12NK 4404-2023 |
| Manual Override | Matching hex key (only using at no power) |
| Position Indicator |  |
Working Conditions
| Ambient Temp. | -15℃＜t＜45℃（can be customized for other temp.） |
| Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0—100℃ |
※Subject to technical changes
