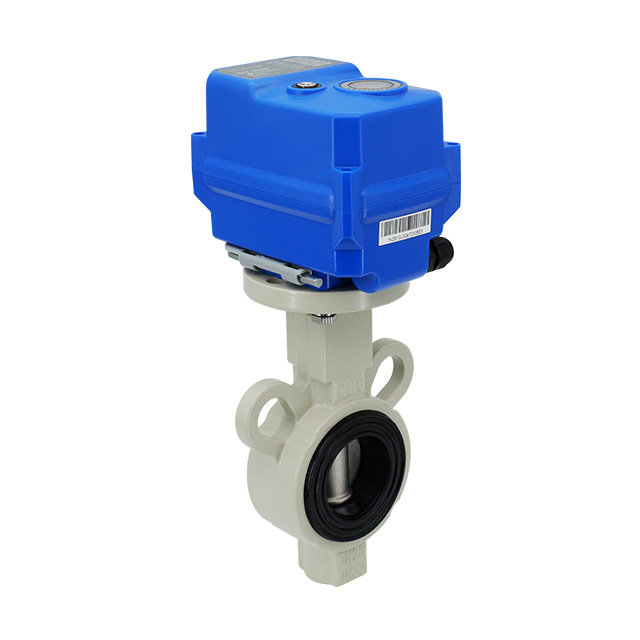

Description
The KLD200 motorized wafer butterfly valve (metal) is constructed with a die-cast aluminum body and a disc made of 304 or 316 stainless steel, providing reliable performance and good corrosion resistance. It features a fail-safe function and offers the option for normally open or normally closed operation, making it a robust alternative to solenoid valves. The valve is electrically driven and includes a manual override via a hex key for safe and convenient operation during power loss. With its compact design, it is ideal for integration into small equipment and supports remote control automation. The valve also boasts an IP67 protection rating, ensuring excellent waterproof and dustproof performance.
Technical specifications include
Valve type: Motorized wafer butterfly valve
Sizes: DN32, DN50
Pressure: Maximum 1.6 MPa
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
Protection class: IP67
Manual override: Hex key (for use in no-power situations)
The KLD200 motorized wafer butterfly valve stands out for its compact design, long service life (up to 20,000 cycles), and versatile application in water treatment, water-saving systems, and other eco-friendly automated equipment. High-speed and long-life versions are available to suit different operational needs.
Fast running version or long service life are optional.
CE Certified.
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | ProtectionClass | Max Pressure | Medium Temp. |
20Nm | DC24V | 85W | B3S/BD3S | 1s | IP67 or F Type | 1.6MPa | 0-100℃ ※2 |
15Nm | DC12V | 15W/25W@KT | B2S/B3S/ BD3S/KT32S | 15s | |||
20Nm | DC12Vh | 25W@10s/ 36W@KT | 10s | ||||
20Nm 15Nm@6s | AC/DC24V | 15W@10s/25W@6s/36W@KT | 10s/6s | ||||
AC/DC95-265V | 15W@10s/25W@6s/36W@KT | B3S/BD3S/KT32S | |||||
20Nm | AC24V | 15W | B3S/BD3S | 15s | |||
AC110V | |||||||
AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100℃.
Notes: Type S adopts micro-motion feedback, which can maintain the signal status after power failure with a slight delay relative to the valve position action. If synchronous feedback signal with the valve position is required, the 200C-J relay feedback solution is recommended, and detailed technical parameters can be obtained by consulting our customer service.

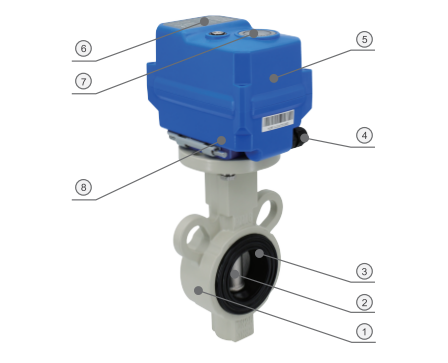

Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | Die-casting aluminum | 1 |
| 2 | Disc | 304/ 316 | 1 |
| 3 | Sealing | EPDM/ NBR | 1 |
| 4 | Cable connector | Nylon/ nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※/ die-casting aluminum | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hex key | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.

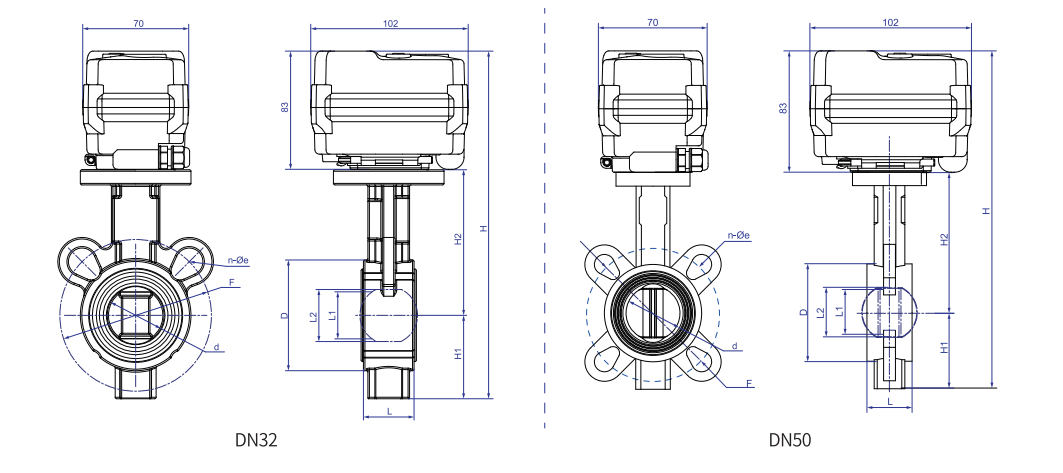

Dimensions【DN32-DN50】
Dimensions (mm)
DN | d | D | F | L | L1 | L2 | H1 | H2 | H | n-φe | W (kg) |
| DN32 | 37 | 73.0 | 100 | 33.4 | 31 | 34.3 | 55 | 96 | 234 | 2-18 | - |
| DN50 | 51 | 89.5 | 125 | 42.5 | 45 | 46.8 | 72 | 133 | 288 | 4-18 | - |
Functional Data
Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof, adding dehumidifying heater] As Per Q/12NK 4404-2023 |
Manual Override | Matching hex key (only using at no power) |
| Position Indicator |  |
Working Conditions
Ambient Temp. | -15℃＜t＜45℃（can be customized for other temp.） |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0—100℃ |
※Subject to technical changes
