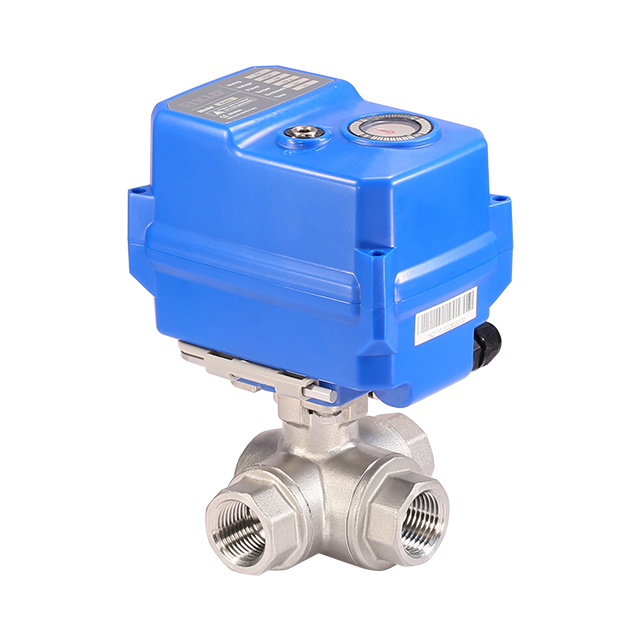

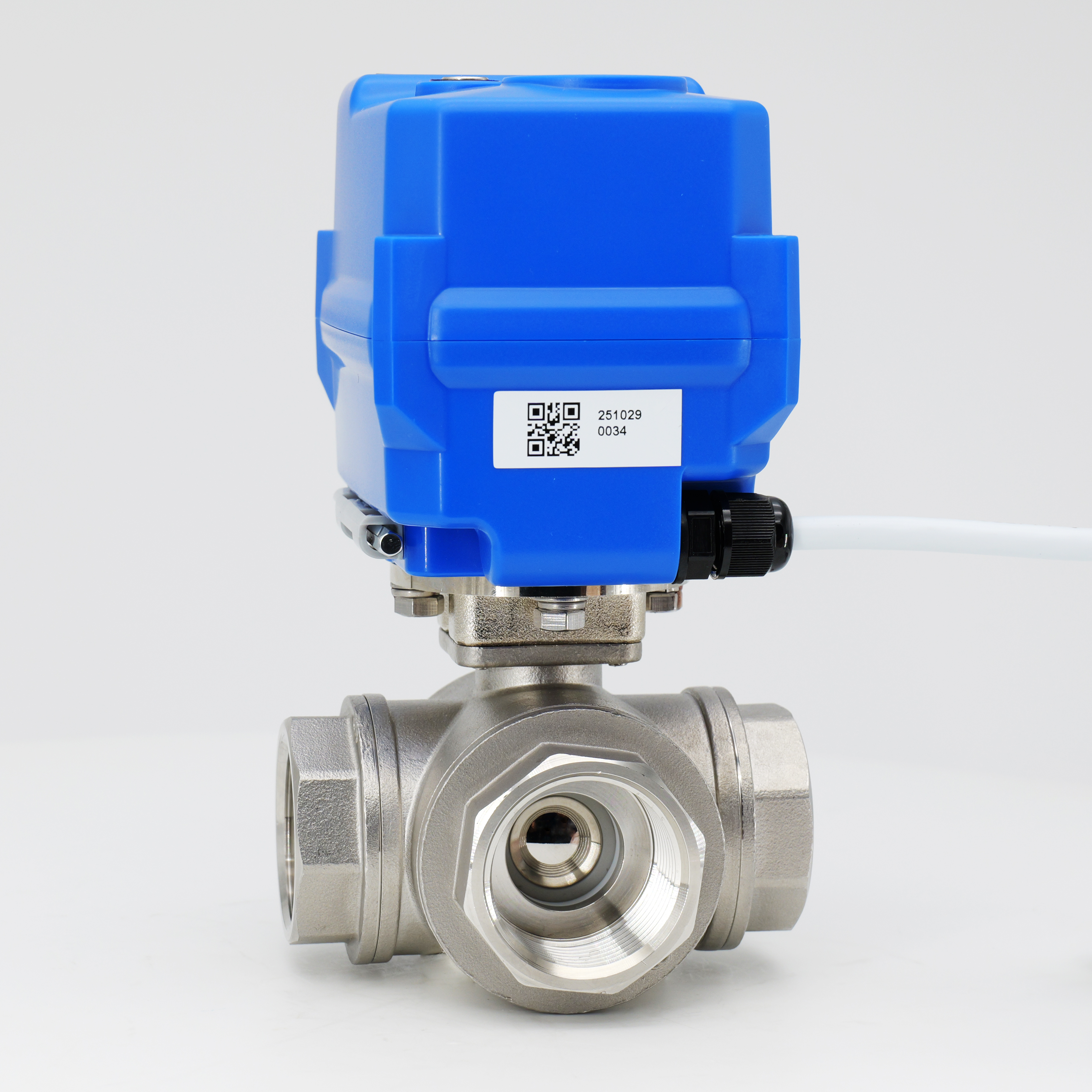

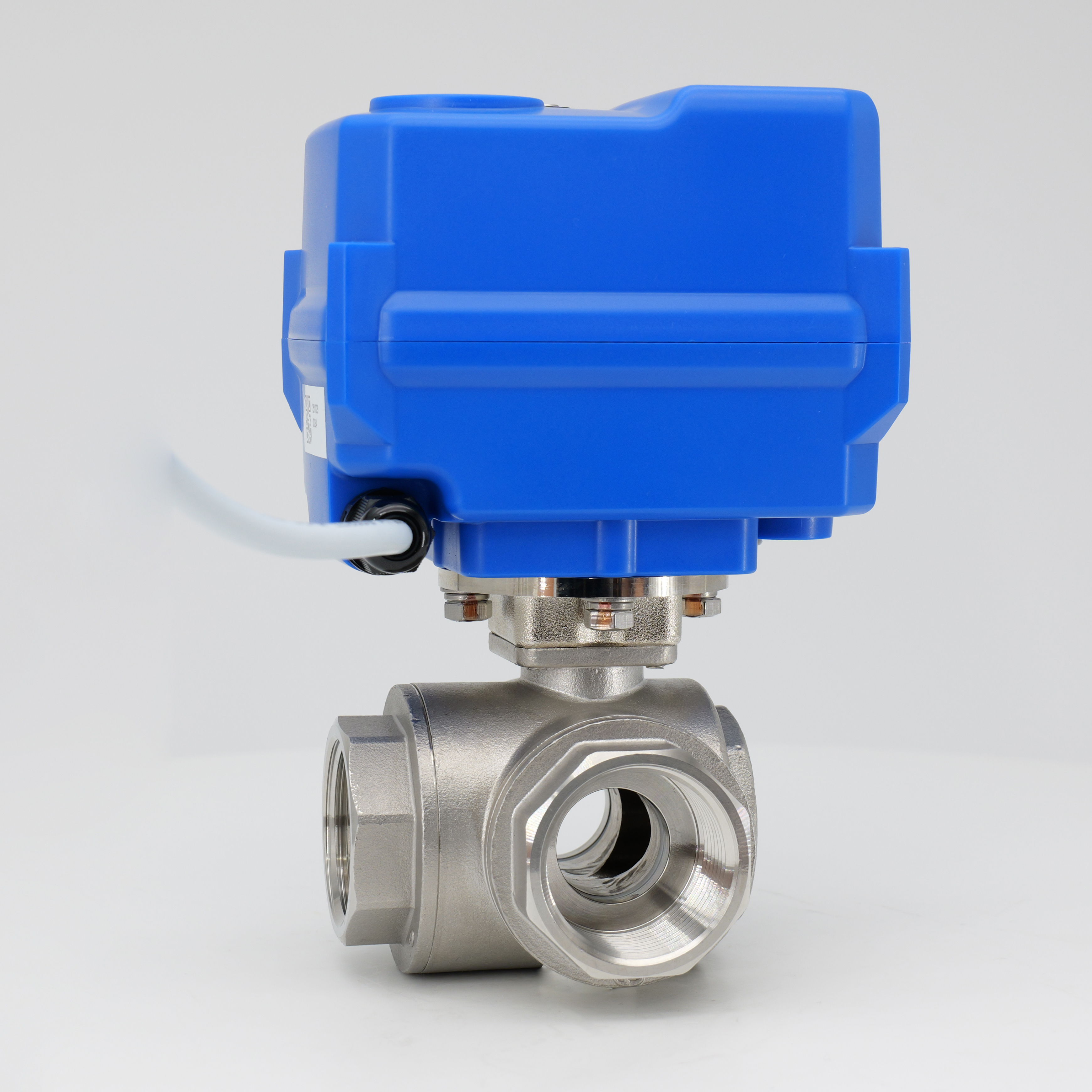

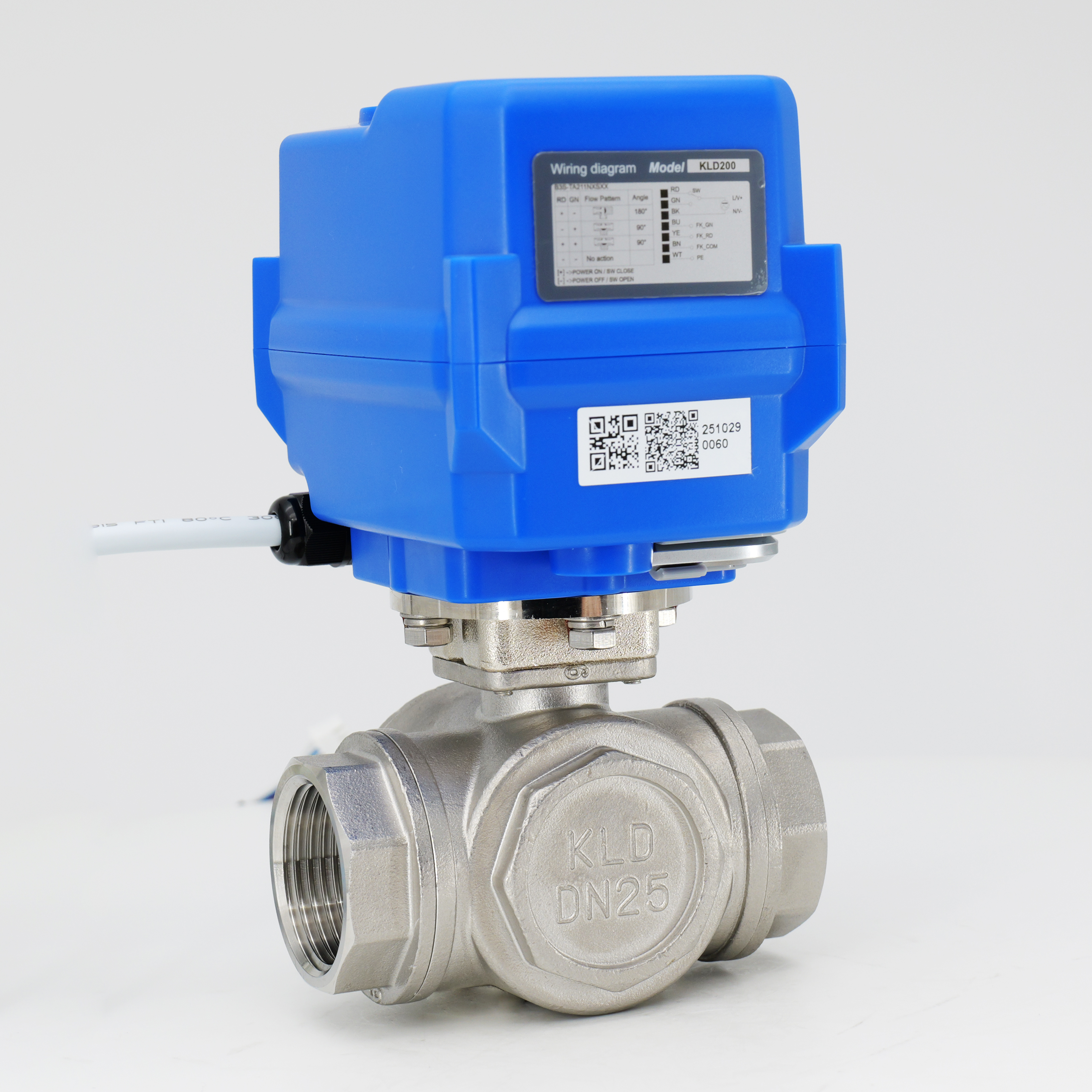

Description
The KLD200 3-Way Motorized Ball Valve is available in multiple body materials, including SS304, SS316, and nickel-plated brass, providing excellent corrosion resistance and flexibility for different media and environmental conditions. It features a fail-safe function, allowing selection between normally open or normally closed operation, making it a durable and efficient alternative to solenoid valves. The brushless motor ensures stable and reliable performance, while the included hex key enables safe manual override during power loss. With its compact design and IP67 protection rating, the valve is both waterproof and dustproof, ideal for integration into automated systems and small equipment.
The technical specifications include
Valve type: 3-way motorized ball valve
Body material: SS304, SS316, or nickel-plated brass
Connection type: thread
Available sizes: DN25
Pressure rating: Maximum 1.0 MPa
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
Manual override: Hex key (for use in no-power situations)
The KLD200 3-way motorized ball valve is widely used in water treatment systems, water-saving applications, and other eco-friendly automated control equipment. It offers a long service life of up to 20,000 cycles, and both standard and high-speed versions are available to suit various operational requirements.
CE Certified
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
20Nm | DC24V | 85W | B3S/BD3S | 1s | IP67 or F Type | 1.0MPa | 0-100℃※2 |
15Nm | DC12V | 15W/25W@KT | B2S/B3S/ BD3S/KT32S | 15s | |||
20Nm | DC12Vh | 25W@10s/36W@KT | 10s | ||||
20Nm/ 15Nm@6s | AC/DC24V | 15W@10s/25W@6s/36W@KT | 10s/6s | ||||
AC/DC95-265V | 15W@10s/25W@6s/36W@KT | B3S/BD3S/ KT32S | |||||
20Nm | AC24V | 15W | B3S/BD3S | 15s | |||
AC110V | |||||||
AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100 ℃.
Notes: Type S adopts micro-motion feedback, which can maintain the signal status after power failure with a slight delay relative to the valve position action. If synchronous feedback signal with the valve position is required, the 200C-J relay feedback solution is recommended, and detailed technical parameters can be obtained by consulting our customer service.

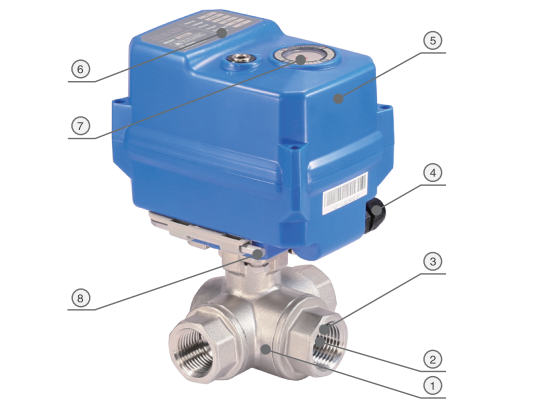

Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/ 316L/ nickel-plated brass | 1 |
| 2 | Ball | 304/ 316L/ wearproof material | 1 |
| 3 | Ball seat | PTFE | 1 |
| 4 | Cable connector | Nylon/ nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※/ die-casting aluminum | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hex key | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.

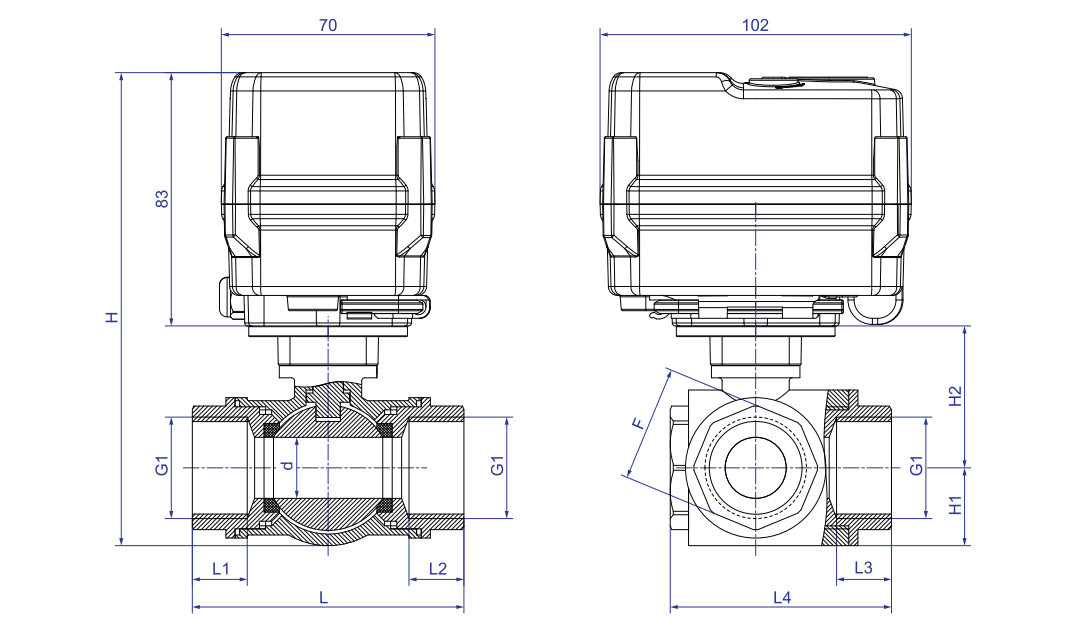

Dimensions【DN25】
Dimensions (mm)
DN | d | G1 | L1=L2=L3 | L | L4 | H1 | H2 | H | F | W (kg) |
DN25 | 20 | G1" | 18 | 89 | 72.5 | 25.5 | 46.5 | 155 | 38 | - |
Notes:BSP, NPT, GB etc. is optional.
Functional Data
Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof, adding dehumidifying heater] As Per Q/12NK 4404-2023 |
Manual Override | Matching hex key (only using at no power) |
| Position Indicator |  |
Working Conditions
Ambient Temp. | -15℃＜t＜45℃（can be customized for other temp.） |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0—100℃ |
※Subject to technical changes
