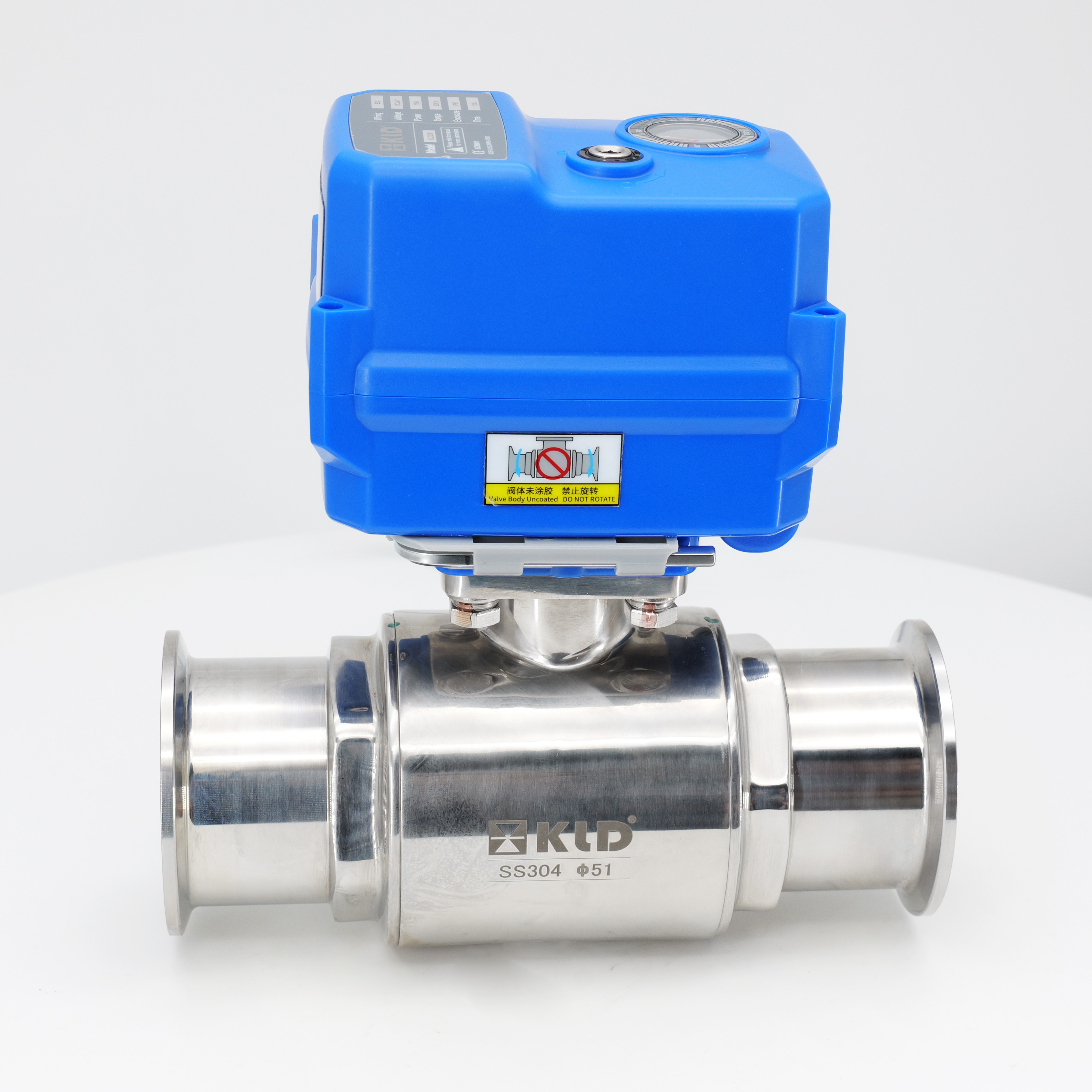

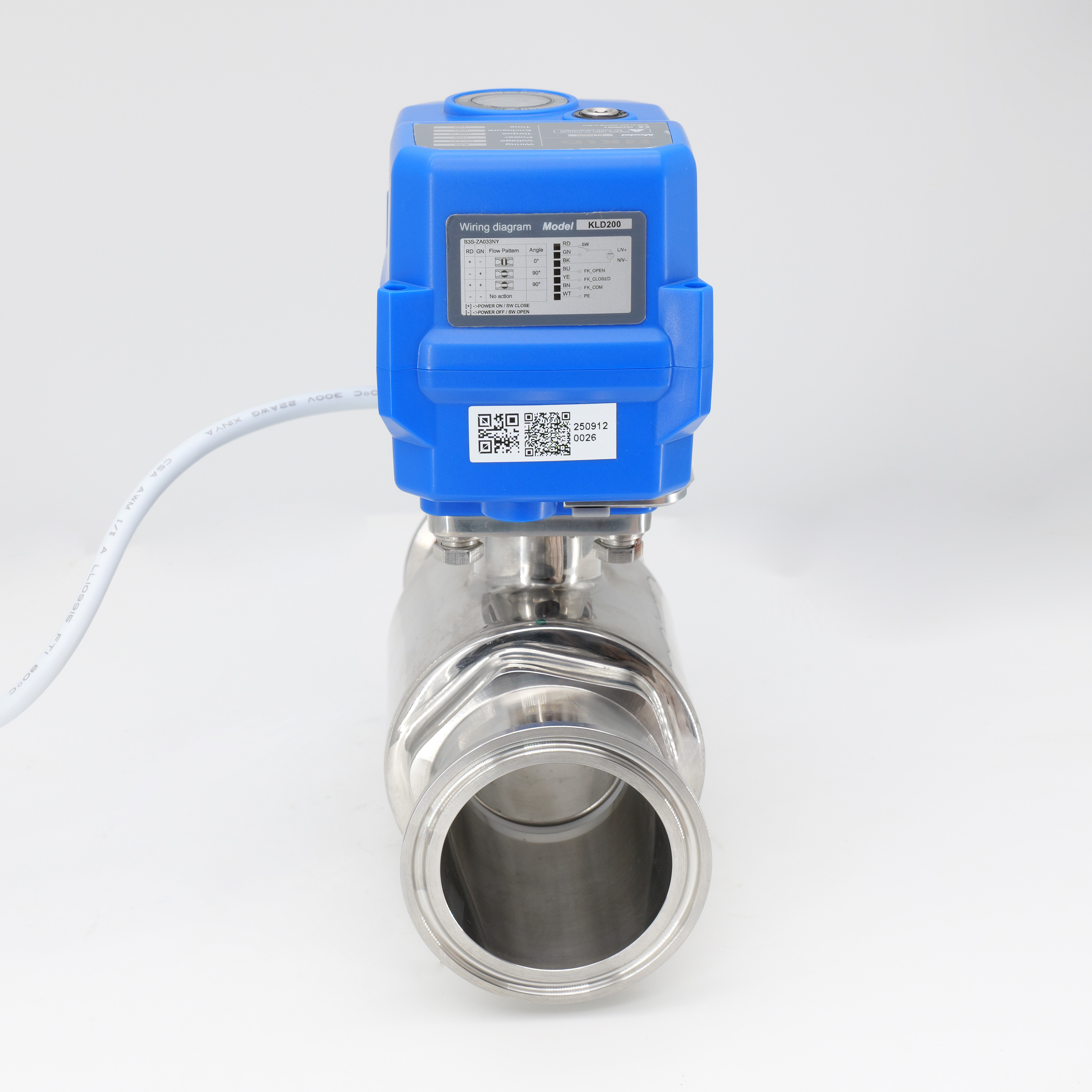

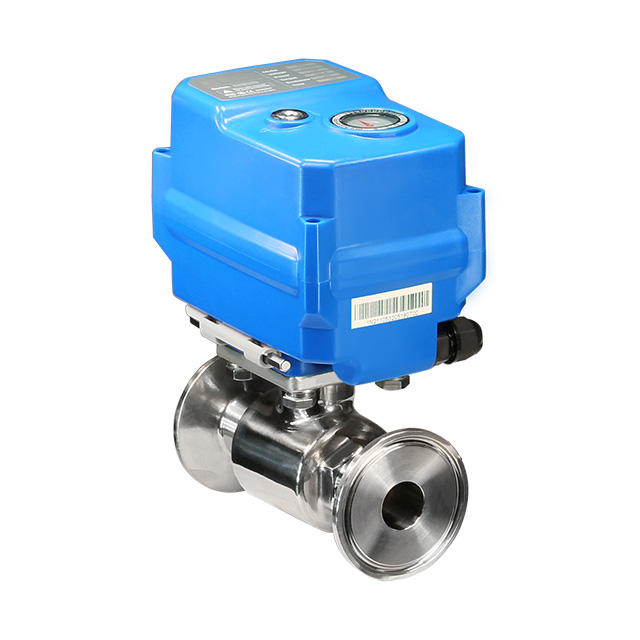

Description
The KLD200 2-Way Motorized Ball Valve for Fast Assembled (Tri-Clamp) is made of 304 or 316 or 316L stainless steel, offering excellent corrosion resistance and suitable for use in various media environments. Fail safe (Power-off auto reset) function, you can choose normally close or normally open, so it is an better alternative to solenoid valves. It is powered by an electric drive and comes with a handwheel for operation, facilitating remote control. With an IP67 rating, it exhibits good waterproof and dustproof performance.
Technical specifications include
Valve type: 2-way electric valve for fast assembled
Sizes: Ф19, Ф25, Ф32, Ф38, Ф45, Ф51
Connection type: Fast Assembled (Tri-Clamp)
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
The KLD200 2-Way Motorized Ball Valve for Fast Assembled (Tri-Clamp) excels in material quality, application range, protection level, and drive mode. It is a high-quality and versatile industrial valve product, widely used in various fluid control fields.
The high-speed version is optional.
CE Certified.
Applications

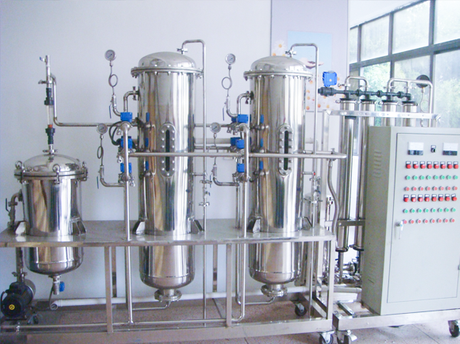

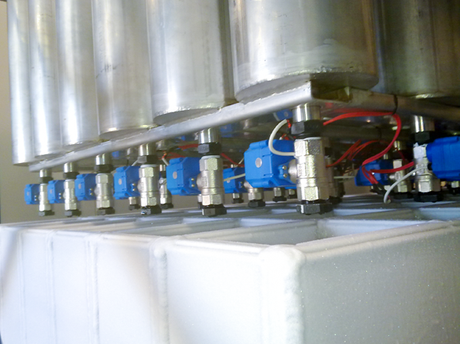

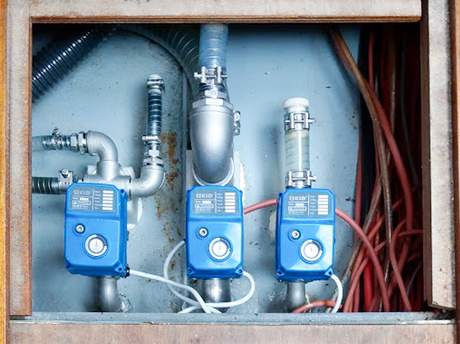

Water treatment system
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
20Nm | DC24V | 85W | B3S/BD3S | 1s | IP67 or F Type | 1.0Mpa | 0-100℃ ※2 |
15Nm | DC12V | 15W/25W@KT | B2S/B3S/BD3S/KT32S | 15s | |||
20Nm | DC12Vh | 25W@10s/36W@KT | 10s | ||||
20Nm 15Nm@6s | AC/DC24V | 15W@10s/25W@6s/36W@KT | 10s/6s | ||||
AC/DC95-265V | 15W@10s/25W@6s/36W@KT | B3S/BD3S/KT32S | |||||
20Nm | AC24V | 15W | B3S/BD3S | 15s | |||
AC110V | |||||||
AC220V |
※2 It needs to add high-temperature bracket if medium temperature is over 100 ℃.
Notes: Type S adopts micro-motion feedback, which can maintain the signal status after power failure with a slight delay relative to the valve position action. If synchronous feedback signal with the valve position is required, the 200C-J relay feedback solution is recommended, and detailed technical parameters can be obtained by consulting our customer service.

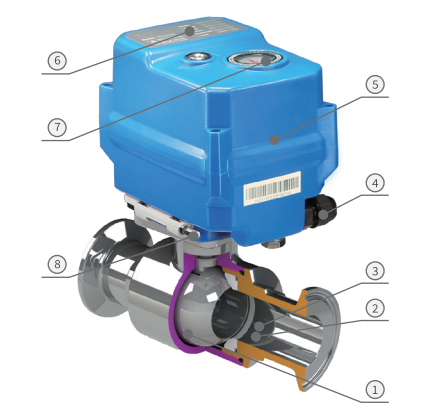

Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316/316L | 1 |
| 2 | Ball | 304/316/316L | 1 |
| 3 | Ball seat | PTFE | 2 |
| 4 | Cable connector | Nylon, nickel-plated brass | 1 |
| 5 | Housing | PC alloy ※/ die-casting aluminum | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hex key | Tool steel | 1 |
※ Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene, ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.

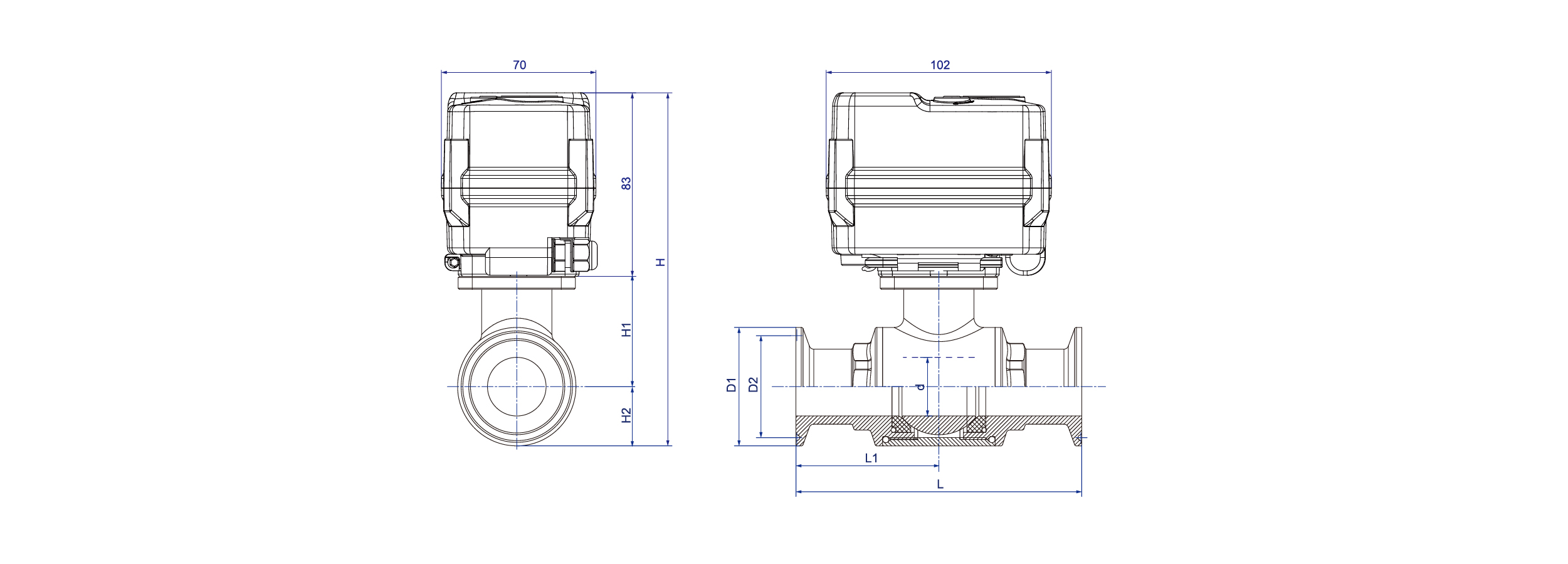

Dimensions【Ф19-Ф51】
Dimensions (mm)
DN | d | D1 | D2 | L | L1 | H1 | H2 | H | W (kg) | ||
| Ф19 | 14.0 | 50.5 | 43.5 | 103.0 | 51.50 | 37.50 | 25.25 | 151.0 | 1.4 | ||
| Ф25 | 18.5 | 50.5 | 43.5 | 116.0 | 58.00 | 39.50 | 25.25 | 147.8 | 1.5 | ||
| Ф32 | 25.0 | 50.5 | 43.5 | 122.0 | 61.00 | 47.00 | 25.25 | 155.3 | 1.6 | ||
| Ф38 | 32.0 | 50.5 | 43.5 | 136.0 | 68.00 | 51.20 | 30.00 | 164.2 | - | ||
| Ф45 | 38.0 | 50.5 | 64.0 | 43.5 | 56.5 | 147.5 | 73.75 | 56.50 | 35.50 | 175.0 | - |
| Ф51 | 38.0 | 64.0 | 56.5 | 161.0 | 80.50 | 56.50 | 35.50 | 175.0 | - | ||
Functional Data
| Angle of Rotation | 90° ± 2° |
Degree of Protection | IP67 F type [damp-proof, adding dehumidifying heater] As Per Q/12NK 4404-2023 |
| Manual Override | Matching hex key (only using at no power) |
| Position Indicator |  |
Working Conditions
| Ambient Temp. | -15℃＜t＜45℃（can be customized for other temp.） |
| Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0—100℃ |
※Subject to technical changes
