Description

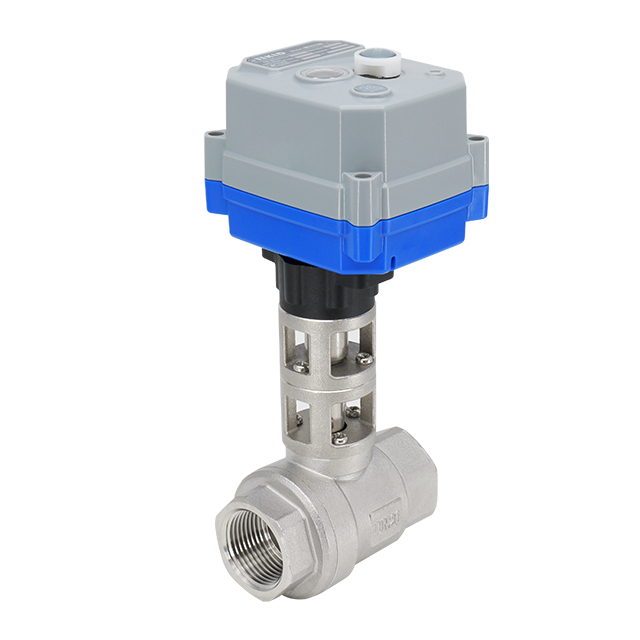

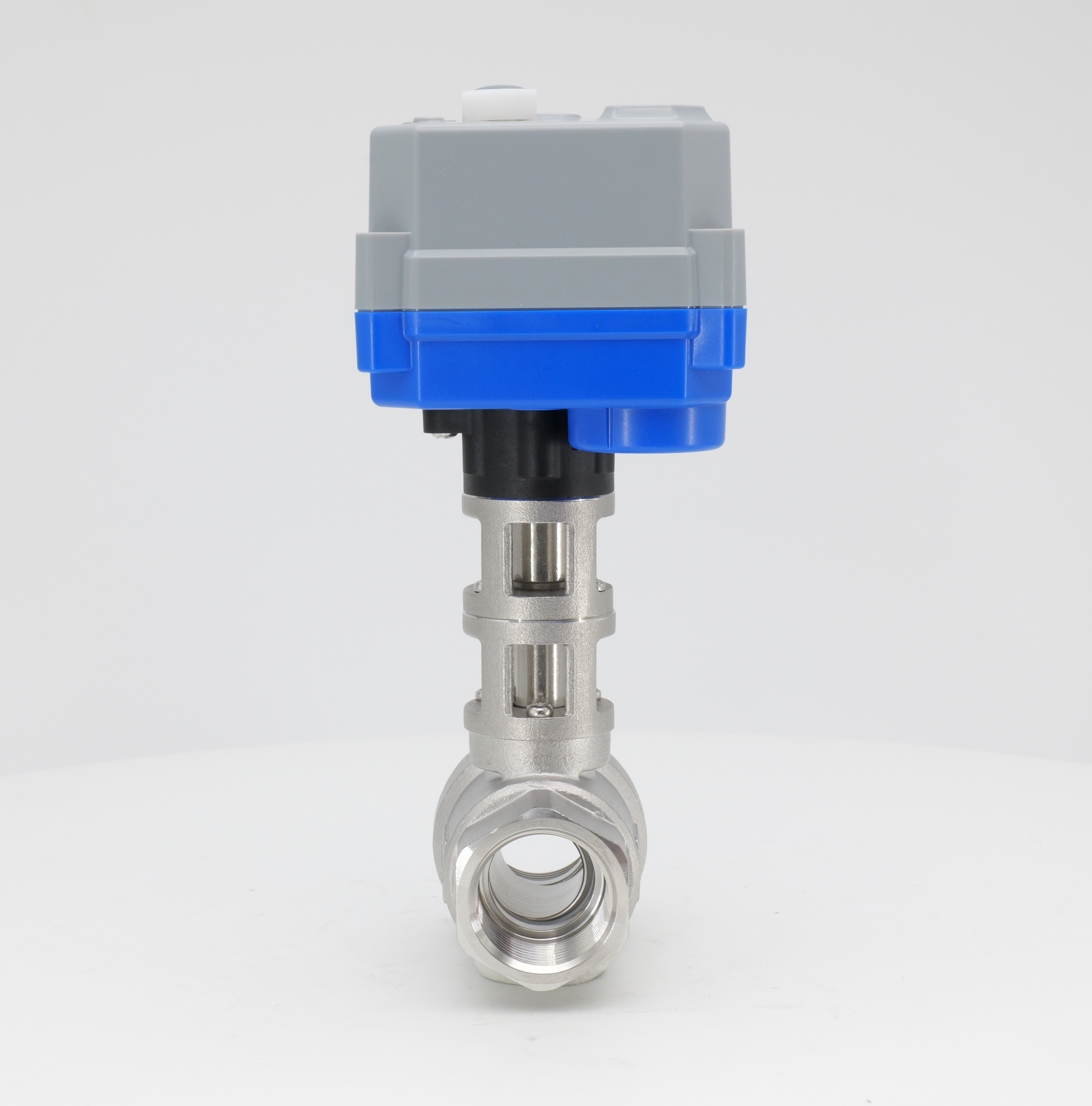

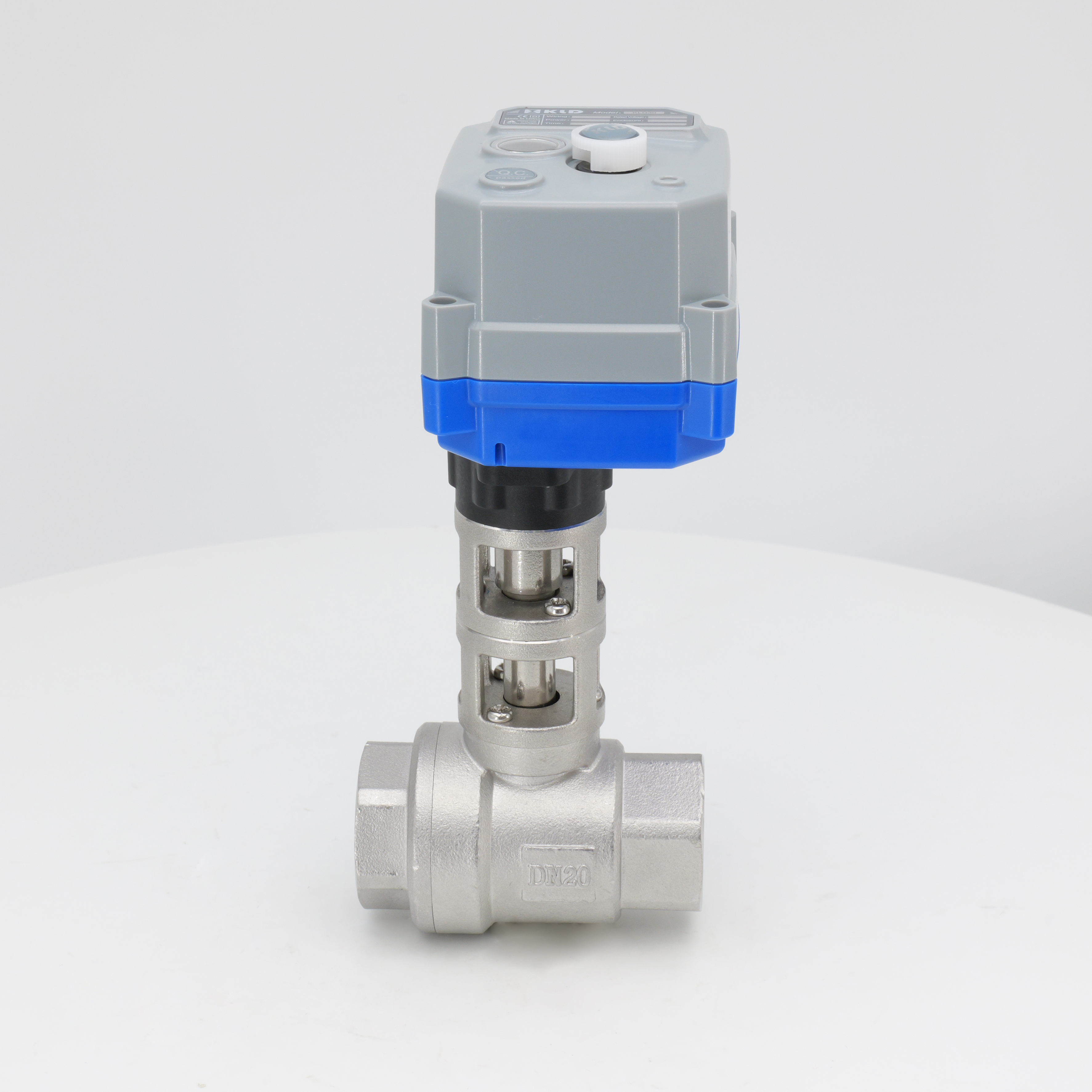

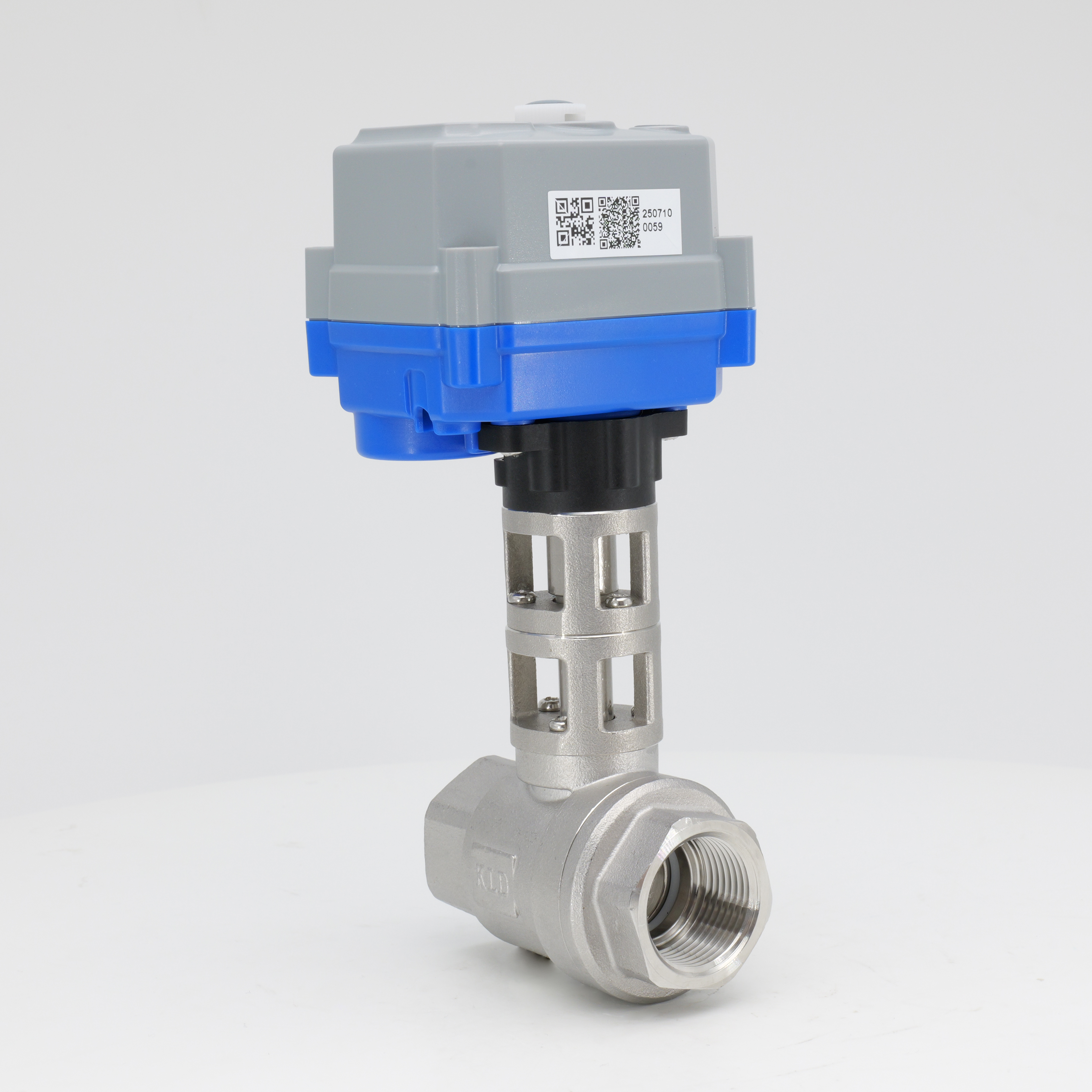

The KLD30S/SJ High‑Temperature 2‑Way Full‑Port Motorized Ball Valve (Elevated Type) is rated for a maximum operating temperature of 180°C. Available in DN8 to DN20 with female thread connections. The valve body and bonnet come in nickel-plated brass, 304, or 316L stainless steel. A thermal insulation bracket made from PA66 elevates the actuator above the valve body, protecting it from heat transfer. The ball is available in 304/316L or a special wear-resistant option. FPM seals withstand elevated temperatures, and PTFE ball seats ensure reliable sealing. A 304 stainless steel coupling connects the valve stem to the actuator. The 30S model includes a manual override handwheel. The 30SJ omits it for compact installations. The actuator can be upgraded to a service life of up to 500,000 cycles. Manufactured under an ISO 9001 quality management system.
Technical specifications
Valve Type: High Temperature 2-Way Full-Port Motorized Ball Valve, Elevated Type
Sizes: DN8, DN10, DN15, DN20
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: ≤180°C
Ambient Temperature: -20°C to 45°C (customizable) ※1
This valve is designed for high-temperature fluid control in industrial automation, water treatment, and process heating applications. The elevated actuator design with a thermal insulation bracket protects the actuator from excessive heat, ensuring long-term reliability. Suitable for hot water, steam condensate, and heated process media. Handles both liquid and gas media. The full-port design minimizes pressure drop for efficient flow. Available across four port sizes for flexible system integration.
※1 Customization is available for temperatures outside the range of>45°C or<-20°C.
① t<-40°C, connect power at least 15 mins (30 mins recommend) before usage.For higher ambient temperatures, warm-up time may be reduced.
② t<- 40°C for long time, add protection to the actuator, eg: heating cable.Not required at ambient t ≥ -15°C.
Applications
Industrial automation & instrumentation
Intelligent water-saving controllers & actuated terminals
Environmental protection, low-flow, water supply & drainage, water treatment
Wirings & Electrical Parameters Table
Without Manual Override 【30SJ】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
| B3(S) BD3(S) | DC5V | DC4-8V | 4W | ≤55mA | 15±5mA | 2A | |
| DC12V | DC10-15V | 4W | ≤30mA | 15±5mA | 1A | ||
| DC24V | DC20-28V | 4W | ≤40mA | 10±5mA | 1A | ||
| AC220V | AC95-265V | 7W | ≤10mA | 10±5mA | 1A | ||
| KT2(S) KT32(S) | DC5V | DC4-8V | 7W | ≤1.1A | 20±5mA | 3A | |
| DC12V | DC10-15V | 10W | ≤835mA | 20±5mA | 2A | ||
| DC24V | DC20-28V | 10W | ≤420mA | 20±5mA | 1A | ||
| AC220V | AC95-265V | 15W | ≤70mA | 10±5mA | 1A | ||
With Manual Override 【30S】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
B2(S/J) B3(S/J) BD3(S/J) B33(J) B43.B44 | DC12V | DC10-15V | 8W | ≤120mA | 70±5mA | 2A | |
| AC/DC24V | AC16-30V | 7W | ≤100mA | 40±5mA | 1A | ||
| DC16-40V | |||||||
B3(J) BD3(J) B33(J) | AC220V | AC95-265V | 10W | ≤25mA | 10±5mA | 1A | |
KT2(S/J) KT32(S/J) | DC12V | DC10-15V | 10W | ≤920mA | 35±5mA | 2A | |
| AC/DC24V | AC12-30V | 12W | ≤520mA | 35±5mA | 2A | ||
| DC12-40V | |||||||
KT2(J) KT32(J) | AC220V | AC95-265V | 19W | ≤90mA | 20±5mA | 1A | |
High-speed
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
B3(J) BD3(J | DC24V | DC20-26V | 12W | ≤300mA | 15±5mA | 2A | |
KT2(J) KT32(J) | DC24V | DC20-26V | 25W | ≤1.05A | 25±5mA | 3A | |
※2 External fast-blow fuse specifications: Rated current ≥ 2-5 times the Max. nominal current of a single motorized valve.For multiple valves connected in parallel, the fuse rating should be increased according to actual requirements.
Notes: For the Fail-Safe function, please select the KT series control. The parameters listed above are standard.For more details, please consult our sales personnel.

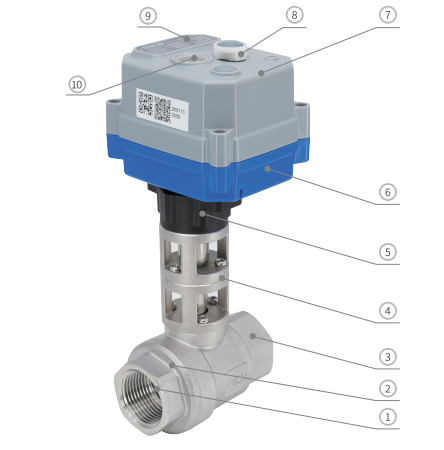

Main Components Diagram
Main Components
| No. | Part | Material | Qty |
| 1 | Ball | 304/ 316L/ Special wear-resistant ball | 1 |
| 2 | Bonnet | Nickel-plated Brass/ 304/ 316L | 1 |
| 3 | Body | Nickel-plated Brass/ 304/ 316L | 1 |
| 4 | Mounting bracket | 304 / 316L | 1 |
| 5 | Thermal insulation bracket | PA66 | 1 |
| 6 | Bottom cover | PC alloy ※3 | 1 |
| 7 | Top cover | PC alloy ※3 | 1 |
| 8 | Handwheel ※4 | POM | 1 |
| 9 | Label | PC | 1 |
| 10 | Sight window | Transparent PC | 1 |
| *1 | Cable gland lock nut | PA66 | 1 |
| *2 | Stem | Nickel-plated Brass/ 304/ 316L | 1 |
| *3 | Ball seat ※5 | PTFE | 2 |
| *4 | Bonnet seal | FPM ※6 | 1 |
| *5 | Stem seal | FPM ※6 | 1 |
| *6 | Coupling | 304 | 1 |
※3 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene,ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.
※4 30SJ series without handwheel.
※5 For gaseous media, wear-resistant PTFE is recommended.
※6 Other materials are customizable.

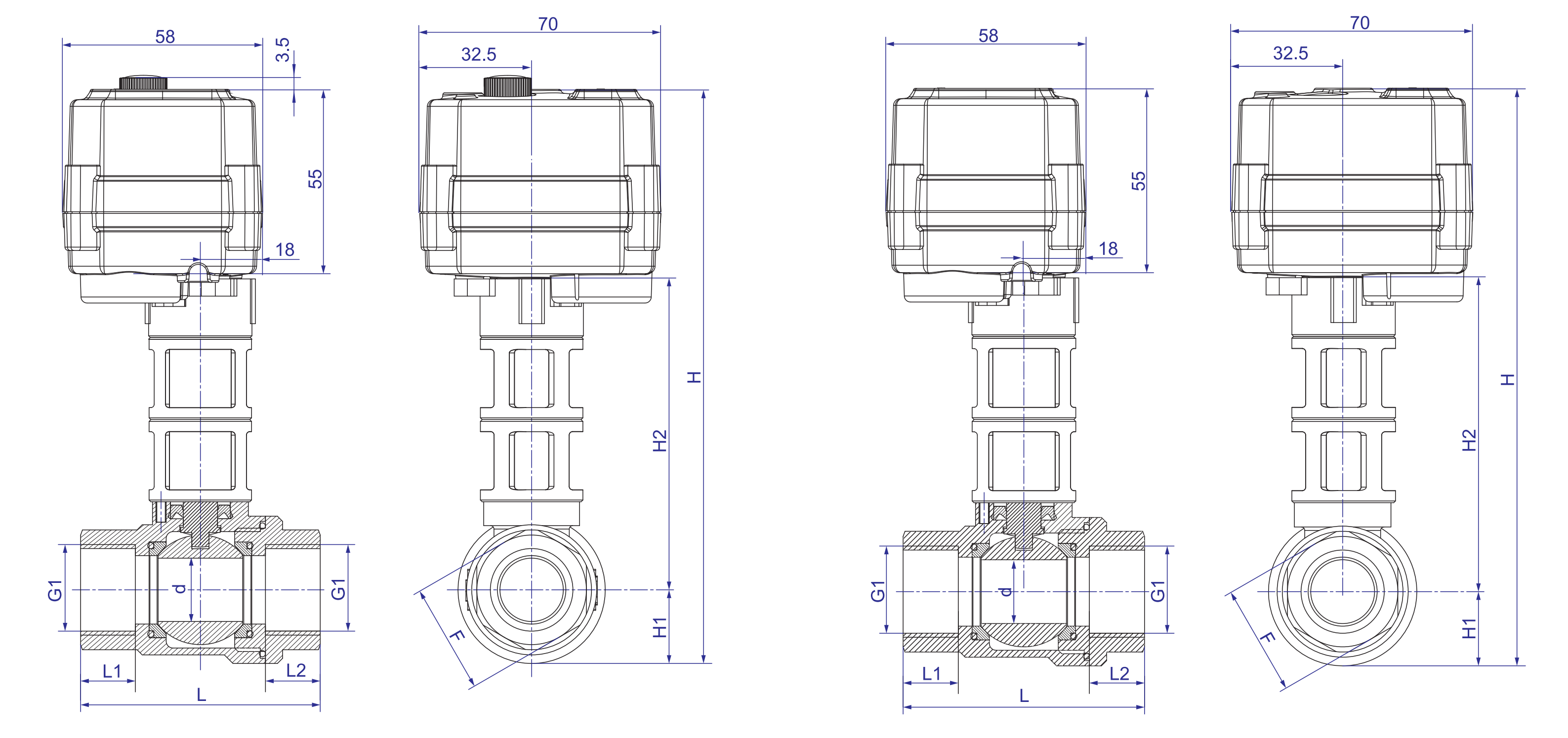

| Dimensions-30S 【DN8-DN20】 | Dimensions-30SJ 【DN8-DN20】 |
 | |
Dimensions (mm)
| Body type | Connection type | DN | d | L1=L2 | L | H | H1 | H2 | F | G1 | Material | W(kg) | |
| 30S | 30SJ | ||||||||||||
| Full bore | Female thread | DN8 | 8 | 11.0 | 43 | 150.75 | 147.25 | 11.0 | 81.25 | 17 | G1/4" | Cu/304/316L | - |
| DN10 | 10 | 11.5 | 50 | 153.75 | 150.25 | 12.5 | 82.75 | 20 | G3/8" | 304/316L | - | ||
| DN15 | 15 | 13.0 | 57 | 159.25 | 155.75 | 16.5 | 84.25 | 27 | G1/2" | Cu/304/316L | - | ||
| DN20 | 20 | 16.0 | 70 | 168.75 | 165.25 | 21.5 | 88.75 | 32 | G3/4" | Cu/304/316L | - | ||
Note:
1. Part dimension tolerances are in accordance with GB/T 1804-2000, Class m.
2. Assembly tolerance: ±2 mm.
Attention:
1. Due to batch-to-batch variations, data may be subject to minor changes. The physical product shall prevail. We reserve the right for modifications without prior notice!
2. For applications with limited installation space or strict dimensional requirements, please contact the relevant sales personnel.
Instructions for Manual Override
Manual operation must be performed with power off. Refer to the manual for details.
※Subject to technical changes
