Description

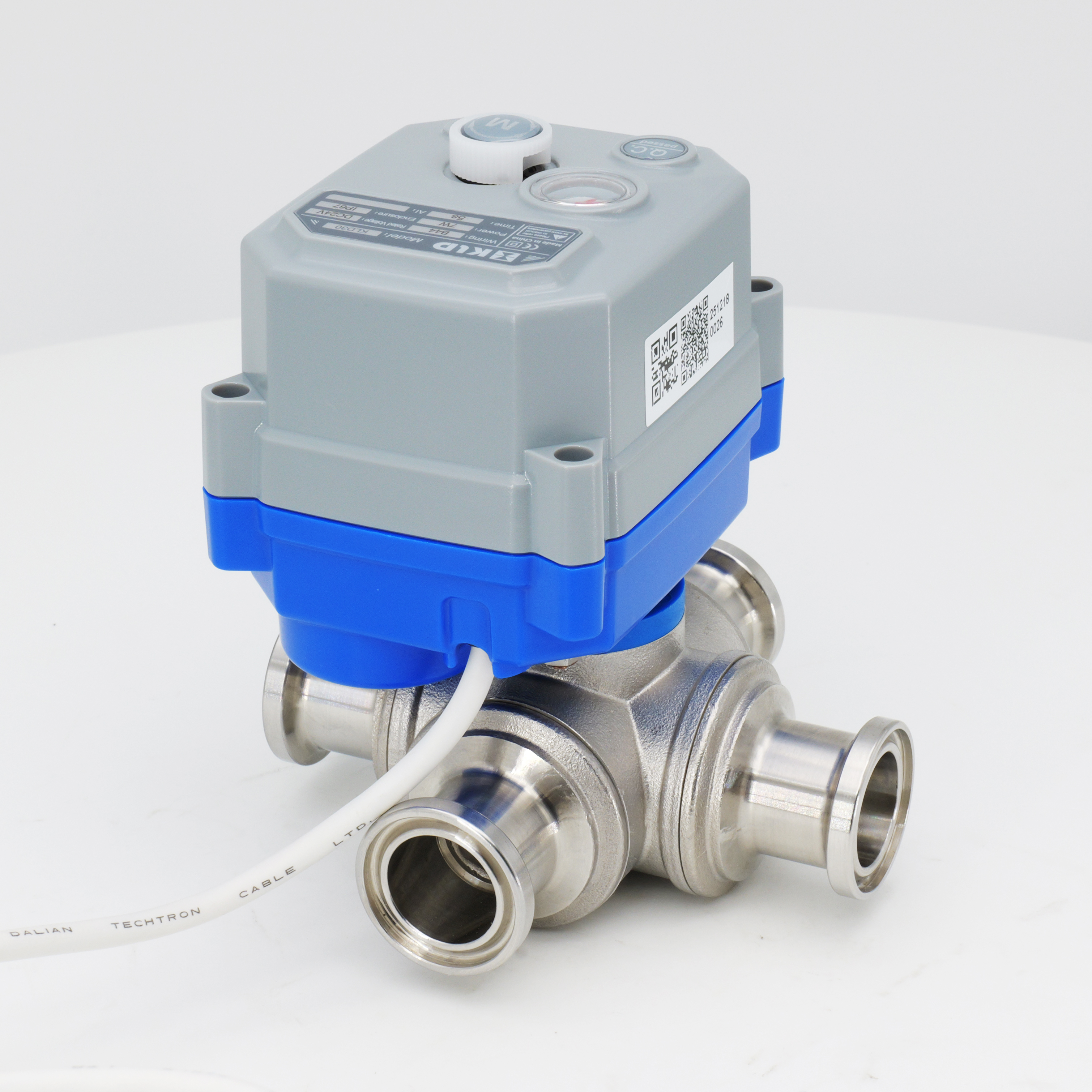

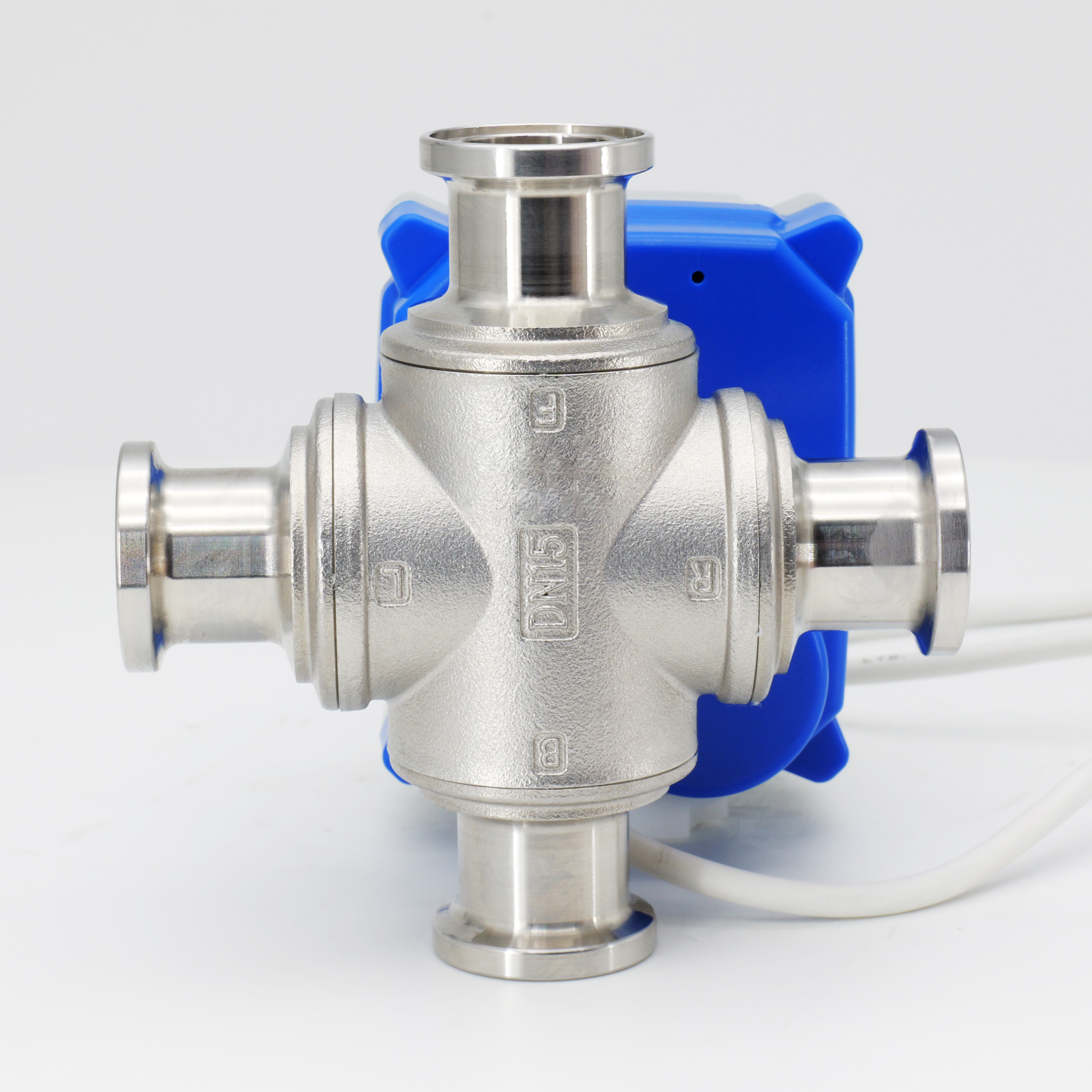

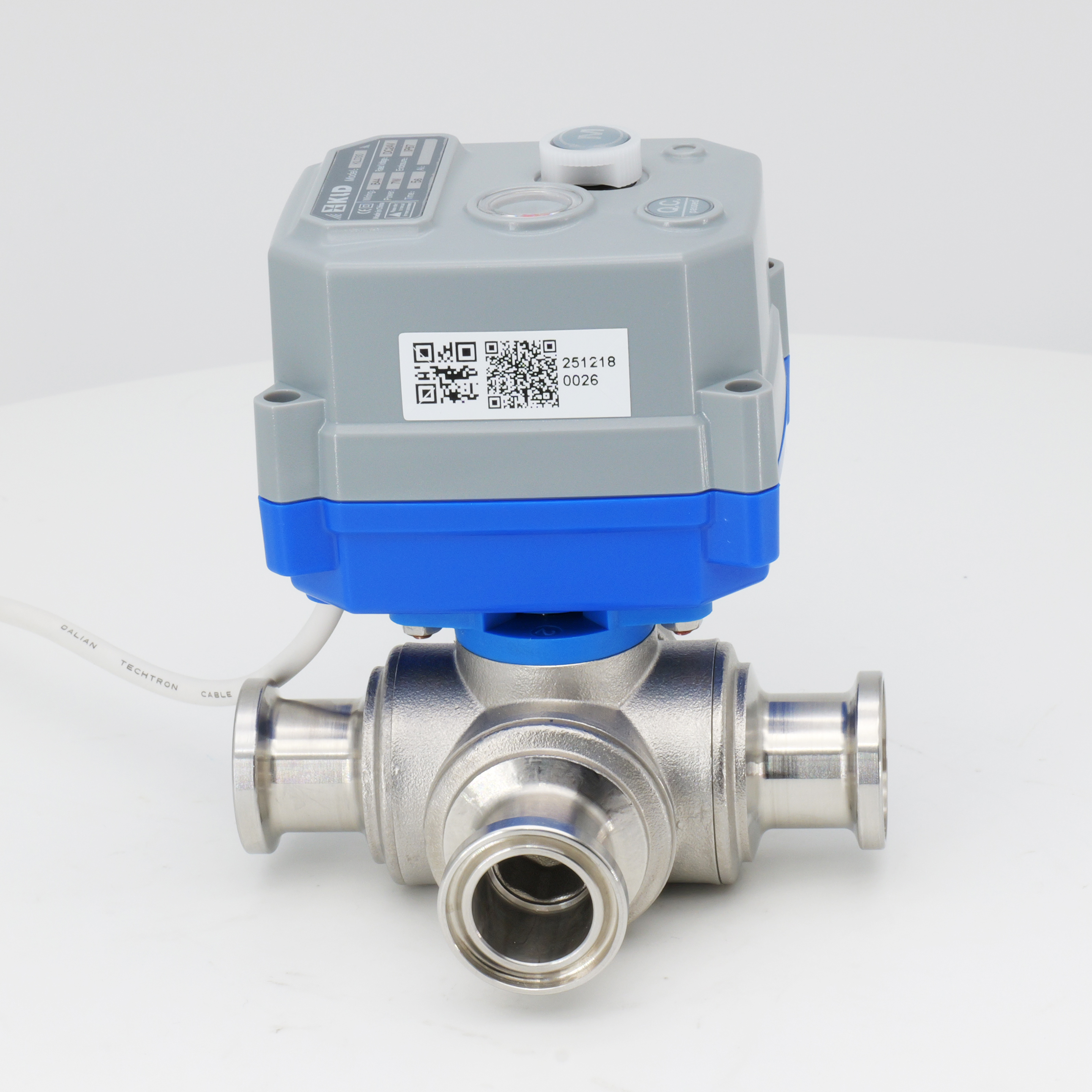

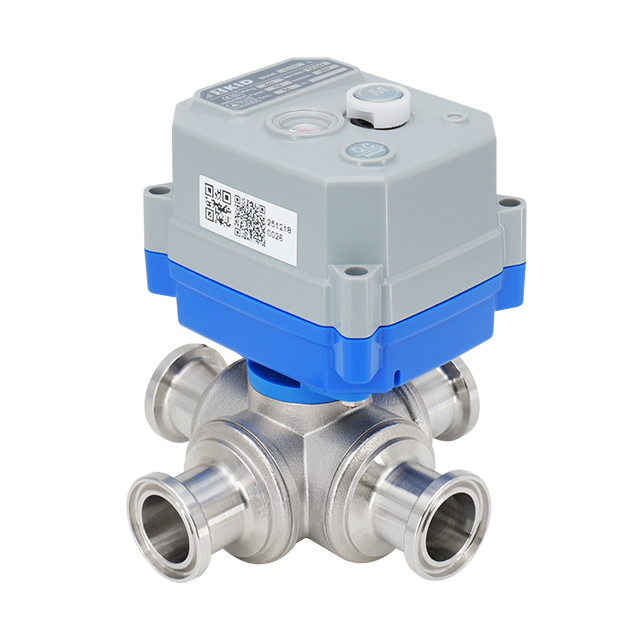

The Normal On/Off 4‑Way Motorized Ball Valve from the KLD30S/SJ Series features fast‑assembly connections. It is designed for DN15 applications. The valve body and ball are constructed from 304 or 316L stainless steel for excellent corrosion resistance. Multiple flow patterns are supported: T-Port, L-Port, I-Port, and Double L-Port 90°, offering flexible flow routing options. The 30S model includes a manual override handwheel, while the 30SJ omits it for compact installations.The actuator can be upgraded to a service life of up to 500,000 cycles. PTFE ball seats ensure reliable sealing. Manufactured under an ISO 9001 quality management system.
Technical specifications
Valve Type: 4-Way Motorized Ball Valve (Horizontal)
Sizes: DN15
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with medium
Medium Temperature: 0–100°C / 120°C / 150°C
Ambient Temperature: -20°C to 45°C (customizable) ※1
This valve is widely used in fluid diversion and mixing applications in sanitary environments. Tri-Clamp connections enable quick installation and easy maintenance. Suitable for water treatment, food processing, and pharmaceutical systems. Supports up to four flow directions per valve, reducing piping complexity. Note that water mixing may occur during ball rotation. The compact horizontal 4-way design saves space in automation equipment. Both liquid and gas media are compatible.
※1 Customization is available for temperatures outside the range of>45°C or<-20°C.
① t<-40°C, connect power at least 15 mins (30 mins recommend) before usage.For higher ambient temperatures, warm-up time may be reduced.
② t<- 40°C for long time, add protection to the actuator, eg: heating cable.Not required at ambient t ≥ -15°C.
Applications
Industrial automation & instrumentation
Intelligent water-saving controllers & actuated terminals
Environmental protection, low-flow, water supply & drainage, water treatment
Wirings & Electrical Parameters Table
Without Manual Override 【30SJ】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
| B3(S) BD3(S) | DC5V | DC4-8V | 4W | ≤55mA | 15±5mA | 2A | |
| DC12V | DC10-15V | 4W | ≤30mA | 15±5mA | 1A | ||
| DC24V | DC20-28V | 4W | ≤40mA | 10±5mA | 1A | ||
| AC220V | AC95-265V | 7W | ≤10mA | 10±5mA | 1A | ||
| KT2(S) KT32(S) | DC5V | DC4-8V | 7W | ≤1.1A | 20±5mA | 3A | |
| DC12V | DC10-15V | 10W | ≤835mA | 20±5mA | 2A | ||
| DC24V | DC20-28V | 10W | ≤420mA | 20±5mA | 1A | ||
| AC220V | AC95-265V | 15W | ≤70mA | 10±5mA | 1A | ||
With Manual Override 【30S】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
B2(S/J) B3(S/J) BD3(S/J) B33(J) B43.B44 | DC12V | DC10-15V | 8W | ≤120mA | 70±5mA | 2A | |
| AC/DC24V | AC16-30V | 7W | ≤100mA | 40±5mA | 1A | ||
| DC16-40V | |||||||
B3(J) BD3(J) B33(J) | AC220V | AC95-265V | 10W | ≤25mA | 10±5mA | 1A | |
KT2(S/J) KT32(S/J) | DC12V | DC10-15V | 10W | ≤920mA | 35±5mA | 2A | |
| AC/DC24V | AC12-30V | 12W | ≤520mA | 35±5mA | 2A | ||
| DC12-40V | |||||||
KT2(J) KT32(J) | AC220V | AC95-265V | 19W | ≤90mA | 20±5mA | 1A | |
High-speed
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※2 | |
B3(J) BD3(J | DC24V | DC20-26V | 12W | ≤300mA | 15±5mA | 2A | |
KT2(J) KT32(J) | DC24V | DC20-26V | 25W | ≤1.05A | 25±5mA | 3A | |
※2 External fast-blow fuse specifications: Rated current ≥ 2-5 times the Max. nominal current of a single motorized valve.For multiple valves connected in parallel, the fuse rating should be increased according to actual requirements.
Notes: For the Fail-Safe function, please select the KT series control. The parameters listed above are standard.For more details, please consult our sales personnel.

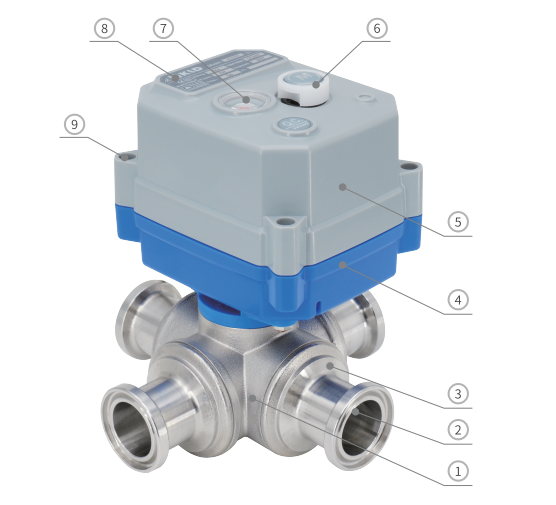

Main Components Diagram
Main Components
| No. | Part | Material | Qty |
| 1 | Body | 304 /316L | 1 |
| 2 | Ball | 304 /316L | 1 |
| 3 | Bonnet | 304 /316L | 4 |
| 4 | Bottom cover | PC alloy ※3 | 1 |
| 5 | Top cover | PC alloy ※3 | 1 |
| 6 | Handwheel ※4 | POM | 1 |
| 7 | Sight window | Transparent PC | 1 |
| 8 | Label | PC | 1 |
| 9 | Screw | 304 | 4 |
| *1 | Cable gland lock nut | PA66 | 1 |
| *2 | Stem | Brass /304 / 316L | 1 |
| *3 | Ball seat ※5 | PTFE | 4 |
| *4 | Bonnet seal | EPDM/NBR/FPM ※6 | 3 |
| *5 | Stem seal | EPDM/NBR/FPM ※6 | 1 |
※3 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene,ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.
※4 30SJ series without handwheel.
※5 For gaseous media, wear-resistant PTFE is recommended.
※6 Other materials are customizable.

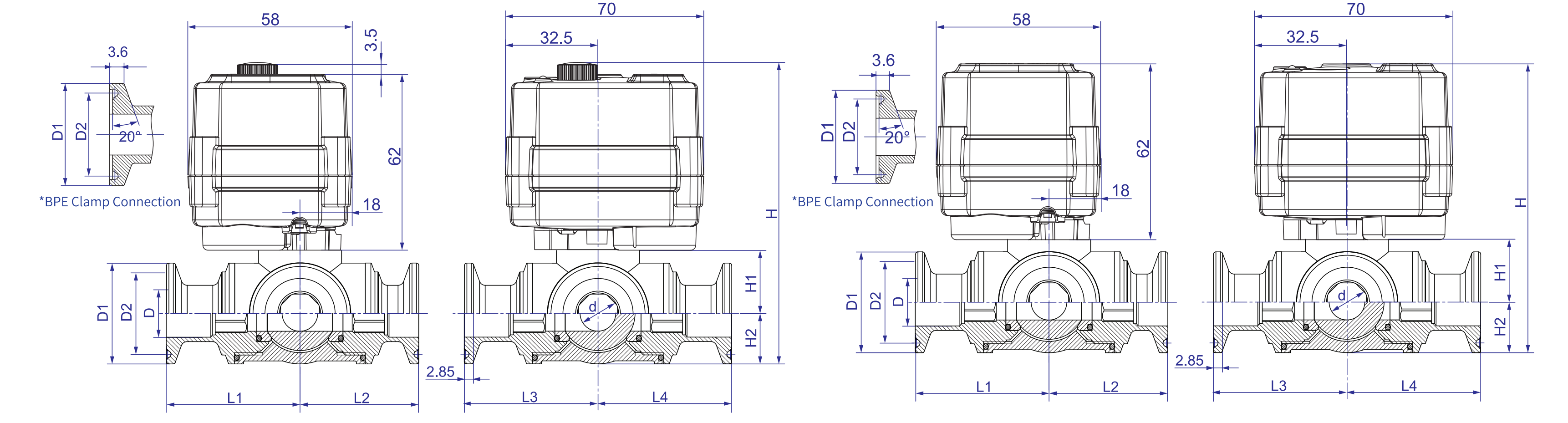

| Dimensions-30S 【DN15】 | Dimensions-30SJ 【DN15】 |
 | |
Dimensions (mm)
| Body type | Connection type | DN | d | D | D1 | D2 | L1=L3=L4 | L2 | H1 | H2 | H | W(kg) | ||||||
| 30S | 30SJ | |||||||||||||||||
| Horizontal 4-way | Tri-clamp | DN15 | 12 | 16 | 34 | *25(BPE) | 25.4 | 27.5 | *20.3(BPE) | 20.2 | 45 | 40 | 45 | 21.25 | 17 | 103.75 | 100.25 | - |
Note:
1. Part dimension tolerances are in accordance with GB/T 1804-2000, Class m.
2. Assembly tolerance: ±2 mm.
3. Optional port threads: NPT, G, etc. Please specify when ordering.
4. For medium temperatures from 100°C to 150°C, a high-temperature mounting bracket is required. Overall height = H + 33 mm.
5. For medium temperatures from 150°C to 200°C, a high-temperature mounting bracket is required. Overall height = H + 56 mm.
Attention:
1. Due to batch-to-batch variations, data may be subject to minor changes. The physical product shall prevail. We reserve the right for modifications without prior notice!
2. For applications with limited installation space or strict dimensional requirements, please contact the relevant sales personnel.

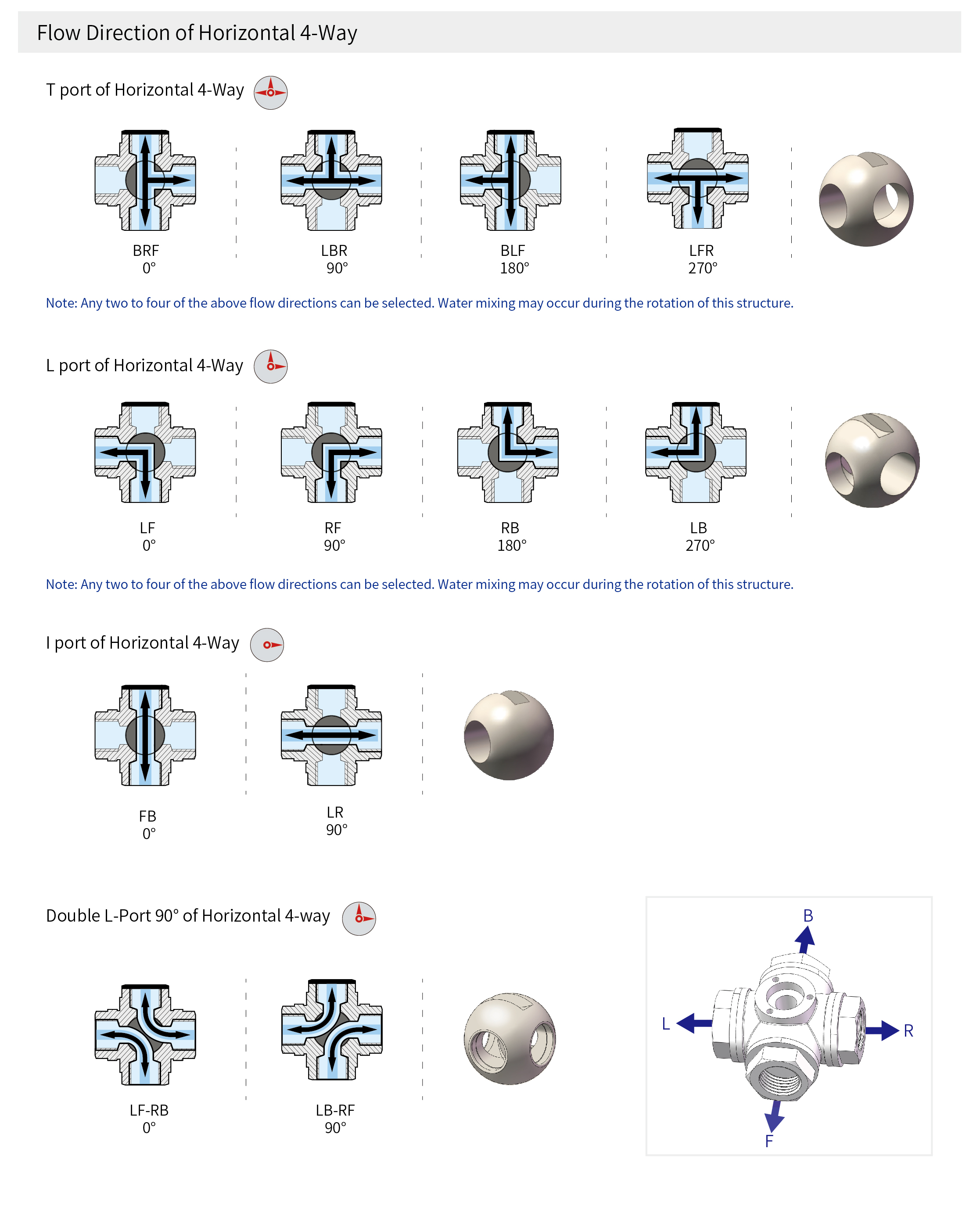

Flow Direction

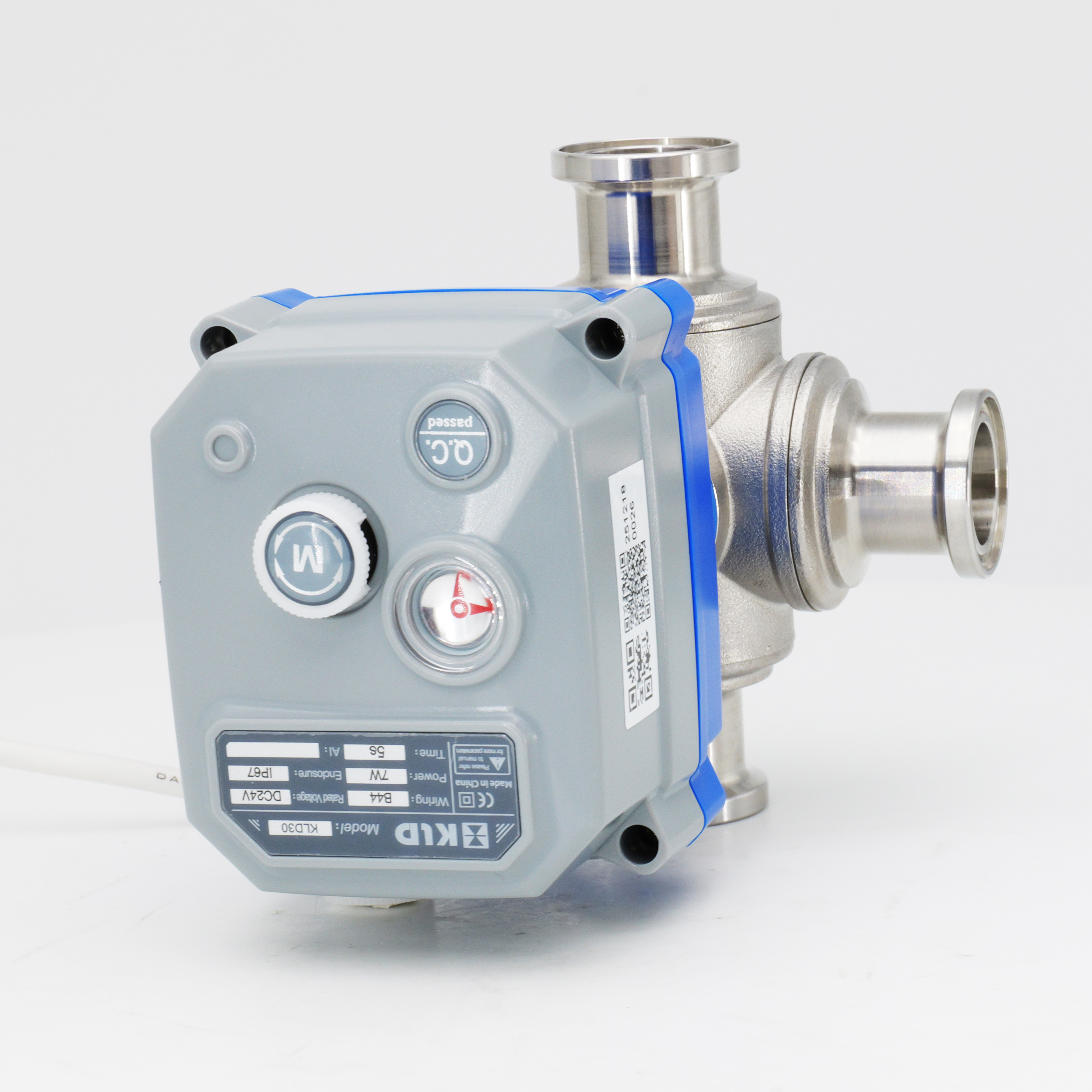

Instructions for Manual Override
Manual operation must be performed with power off. Refer to the manual for details.
※Subject to technical changes
