Description

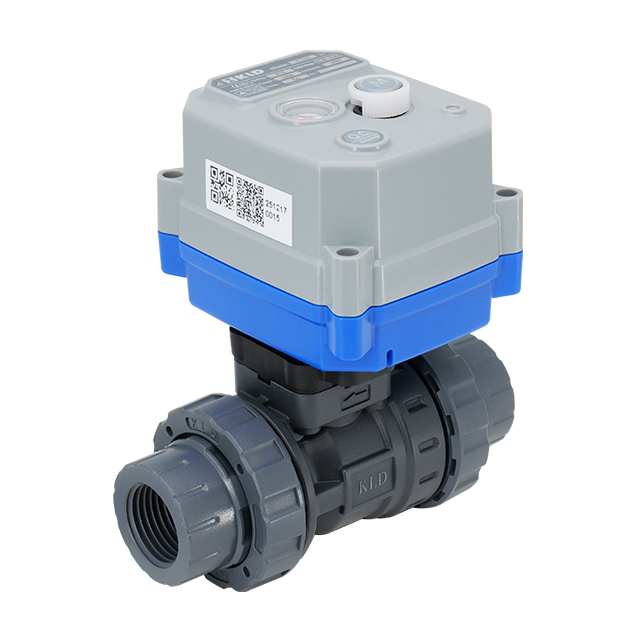

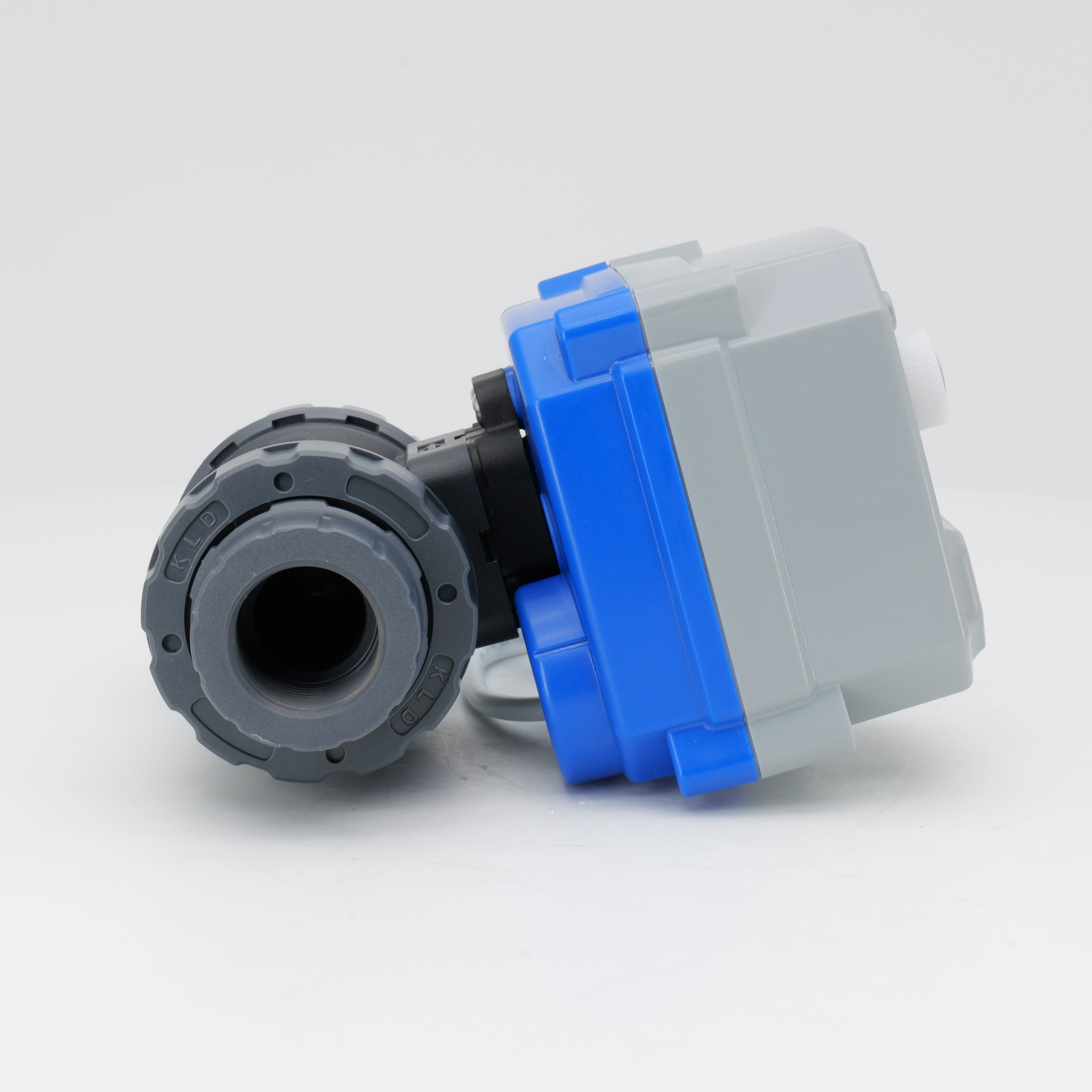

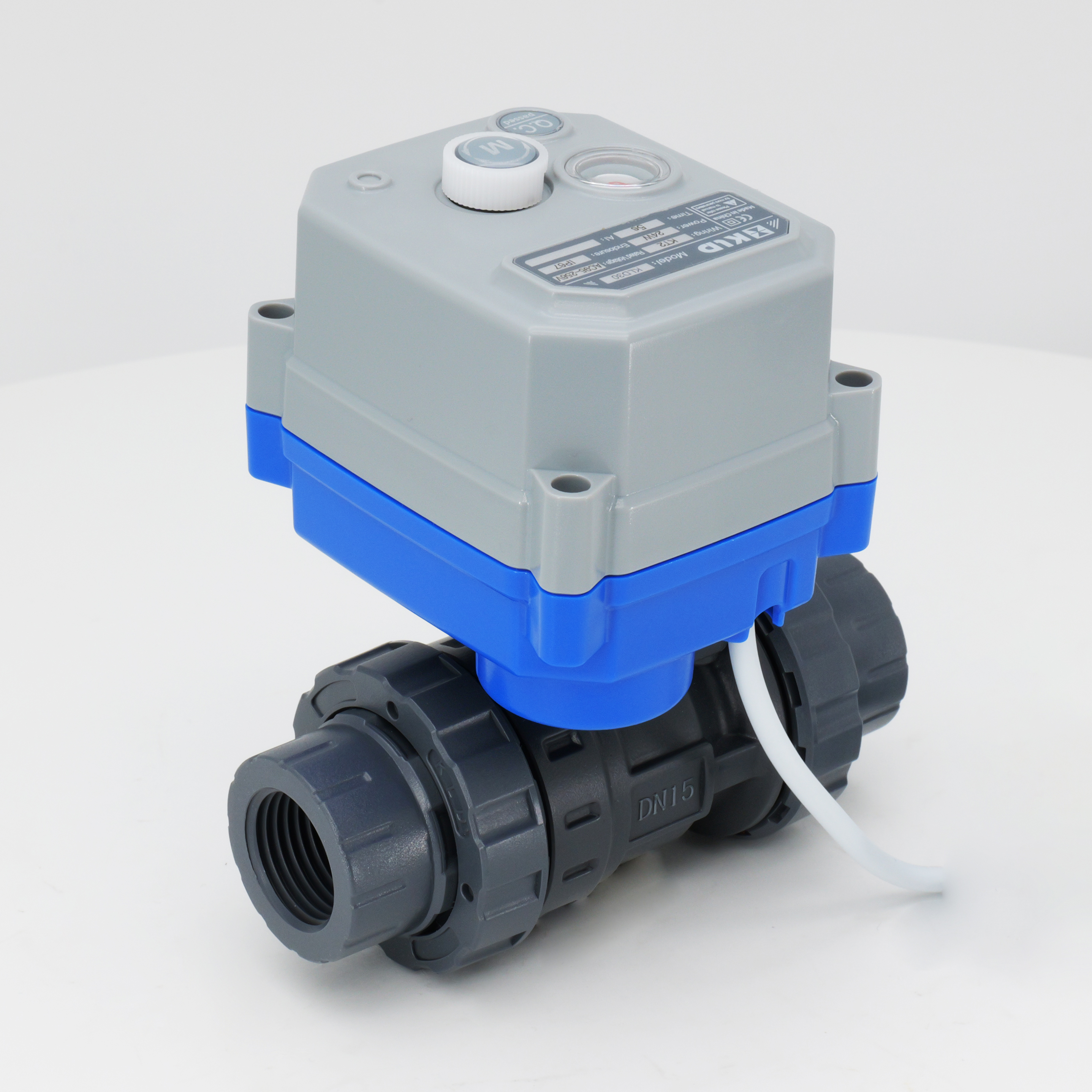

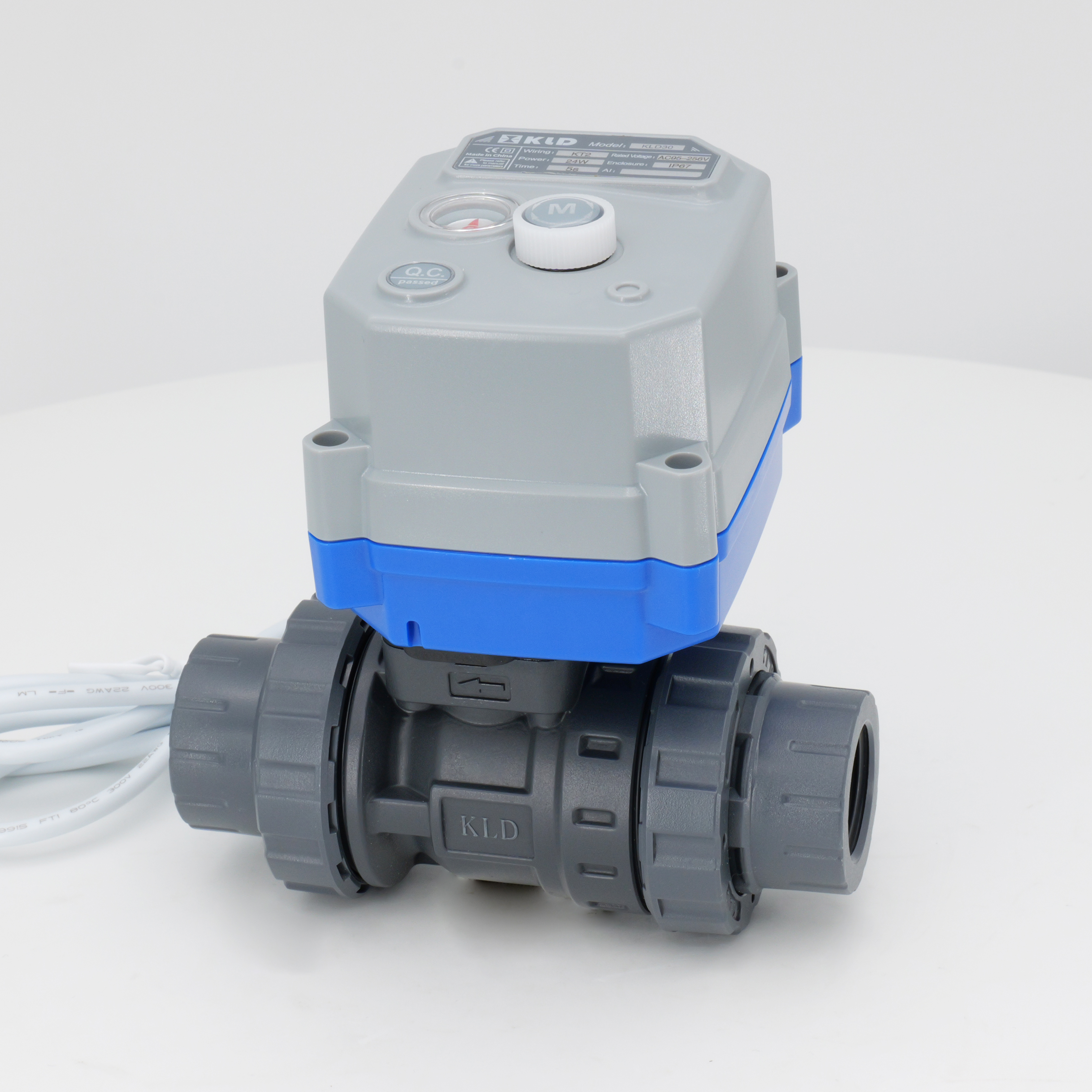

The KLD30S/SJ Normal On/Off 2-Way plastic motorized ball valve with double unions is constructed from UPVC. It is designed for handling corrosive media such as acids and alkalis. The valve body, ball, nuts, and unions are all constructed from UPVC for excellent chemical resistance. Double unions allow quick installation and removal from the pipeline without disturbing pipe connections. The ball seat is PTFE, and the stem uses UPVC with a 304 stainless steel insert. Available in DN15 and DN20 with female thread or socket connections. The 30S model includes a manual override handwheel. The 30SJ omits it for compact installations. The actuator can be upgraded to a service life of up to 500,000 cycles. Manufactured under an ISO 9001 quality management system.
Technical specifications
Valve Type: 2-Way Plastic Motorized Ball Valve with Double Unions
Sizes: DN15, DN20
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0–45°C
Ambient Temperature: -20°C to 45°C
This valve is widely used in corrosive fluid applications in water treatment, environmental protection, and industrial automation. The double union design simplifies maintenance and replacement. Handles acids, alkalis, and other aggressive media reliably. Often used as a replacement for solenoid valves in corrosive environments where standard valves fail. Suitable for both liquid and gas media. Thread and socket connection options provide installation flexibility.
Applications
Used for corrosive medium such as acids and alkalis,etc.
Replaces conventional solenoid valves, especially where they cannot work reliably.
Environmental protection, water supply & drainage, water treatment
Industrial automation and other small equipment
Wirings & Electrical Parameters Table
Without Manual Override 【30SJ】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※1 | |
| B3(S) BD3(S) | DC5V | DC4-8V | 4W | ≤55mA | 15±5mA | 2A | |
| DC12V | DC10-15V | 4W | ≤30mA | 15±5mA | 1A | ||
| DC24V | DC20-28V | 4W | ≤40mA | 10±5mA | 1A | ||
| AC220V | AC95-265V | 7W | ≤10mA | 10±5mA | 1A | ||
| KT2(S) KT32(S) | DC5V | DC4-8V | 7W | ≤1.1A | 20±5mA | 3A | |
| DC12V | DC10-15V | 10W | ≤835mA | 20±5mA | 2A | ||
| DC24V | DC20-28V | 10W | ≤420mA | 20±5mA | 1A | ||
| AC220V | AC95-265V | 15W | ≤70mA | 10±5mA | 1A | ||
With Manual Override 【30S】
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※1 | |
B2(S/J) B3(S/J) BD3(S/J) B33(J) B43.B44 | DC12V | DC10-15V | 8W | ≤120mA | 70±5mA | 2A | |
| AC/DC24V | AC16-30V | 7W | ≤100mA | 40±5mA | 1A | ||
| DC16-40V | |||||||
B3(J) BD3(J) B33(J) | AC220V | AC95-265V | 10W | ≤25mA | 10±5mA | 1A | |
KT2(S/J) KT32(S/J) | DC12V | DC10-15V | 10W | ≤920mA | 35±5mA | 2A | |
| AC/DC24V | AC12-30V | 12W | ≤520mA | 35±5mA | 2A | ||
| DC12-40V | |||||||
KT2(J) KT32(J) | AC220V | AC95-265V | 19W | ≤90mA | 20±5mA | 1A | |
High-speed
| Wiring | Nominal Voltage | Voltage Range | Max. Power | Operating Current | Quiescent Current | External Fuse ※1 | |
B3(J) BD3(J | DC24V | DC20-26V | 12W | ≤300mA | 15±5mA | 2A | |
KT2(J) KT32(J) | DC24V | DC20-26V | 25W | ≤1.05A | 25±5mA | 3A | |
※1 External fast-blow fuse specifications: Rated current ≥ 2-5 times the Max. nominal current of a single motorized valve.For multiple valves connected in parallel, the fuse rating should be increased according to actual requirements.
Notes: For the Fail-Safe function, please select the KT series control. The parameters listed above are standard.For more details, please consult our sales personnel.

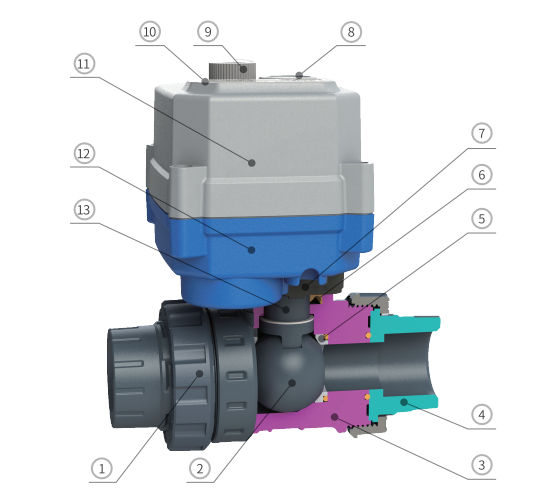

Main Components Diagram
Main Components
| No. | Part | Material | Qty |
| 1 | Nut | UPVC | 2 |
| 2 | Ball | UPVC | 1 |
| 3 | Body | UPVC | 1 |
| 4 | Union | UPVC | 2 |
| 5 | Ball seat ※2 | PTFE | 2 |
| 6 | Bonnet seal | FPM ※3 | 1 |
| 7 | Mounting bracket | PA66 | 1 |
| 8 | Sight window | Transparent PC | 1 |
| 9 | Handwheel ※4 | POM | 1 |
| 10 | Label | PC | 1 |
| 11 | Top cover | PC alloy ※5 | 1 |
| 12 | Bottom cover | PC alloy ※5 | 1 |
| 13 | Stem | UPVC + 304 | 1 |
| *1 | Cable gland lock nut | PA66 | 1 |
※2 For gaseous media, wear-resistant PTFE is recommended.
※3 Other materials are customizable.
※4 30SJ series without handwheel.
※5 Avoid direct or indirect contact between PC and organic solvents such as toluene, xylene,ketones, dichloromethane, trichloromethane, and chloroform etc., due to corrosion resistance characteristics of PC materials.

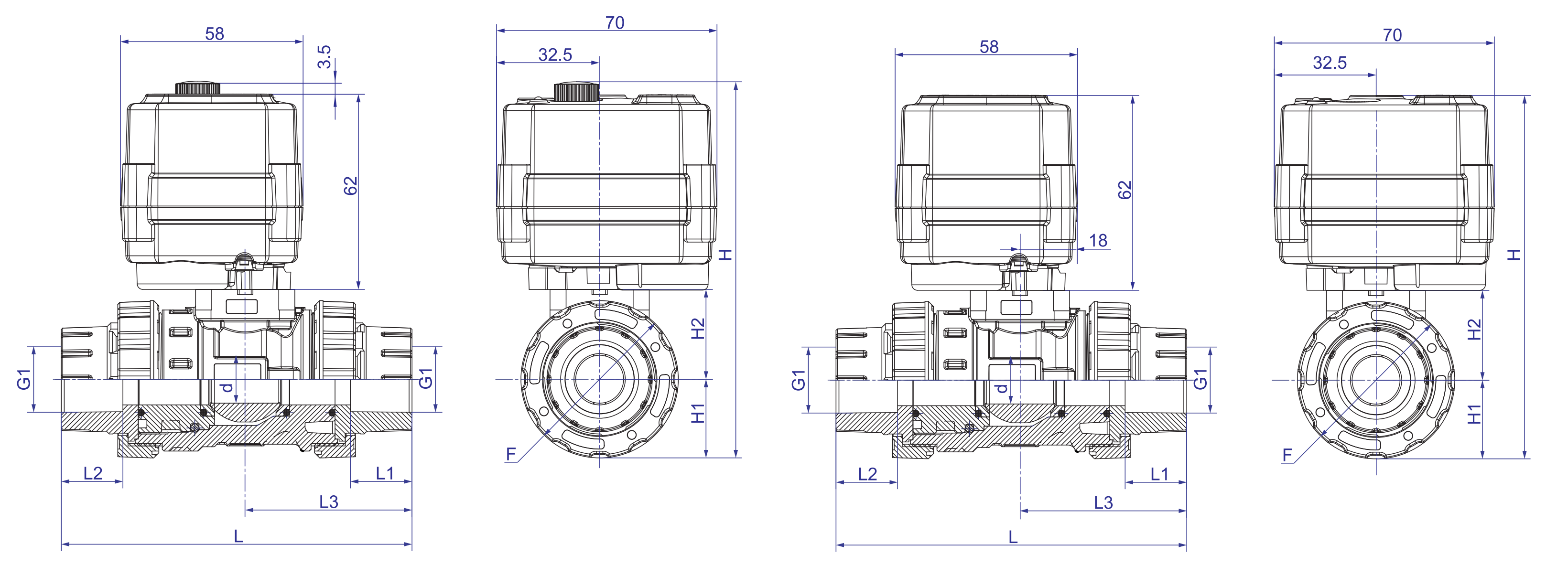

| Dimensions-30S 【DN15-DN20】 | Dimensions-30SJ 【DN15-DN20】 |
 | |
Dimensions (mm)
| Body type | DN | d | G1 | L1=L2 | L3 | L | H | H1 | H2 | F | W(kg) | |||
| Thread | Socket | Thread | Socket | 30S | 30SJ | |||||||||
| Reduced bore 2-way | DN15 | 14 | G1/2" or NPT 1/2* | 20.3 (external diameter) | 18 | 18 | 48.75 | 102.5 | 116 | 112.5 | 23.5 | 26.25 | 47 | - |
| DN20 | 14 | G3/4" or NPT 3/4” | 25.3 (external diameter) | 18 | 18 | 48.75 | 102.5 | 116 | 112.5 | 23.5 | 26.25 | 47 | - | |
Note:
1. Part dimension tolerances are in accordance with GB/T 1804-2000, Class m.
2. Assembly tolerance: ±2 mm.
3. Optional port threads: NPT, G, etc. Please specify when ordering.
Attention:
1. Due to batch-to-batch variations, data may be subject to minor changes. The physical product shall prevail. We reserve the right for modifications without prior notice!
2. For applications with limited installation space or strict dimensional requirements, please contact the relevant sales personnel.
Instructions for Manual Override
Manual operation must be performed with power off. Refer to the manual for details.
※Subject to technical changes
